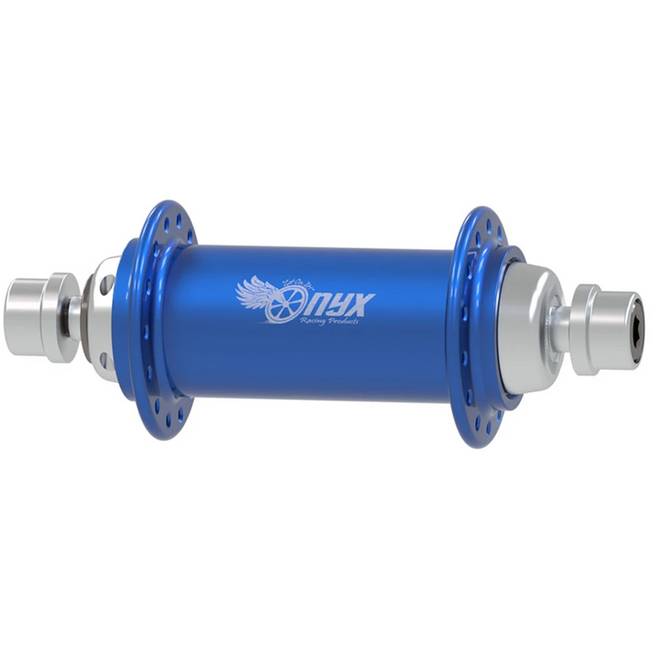

Onyx Front Hub-100/8MM

10mm (3/8") Standard BMX Front Hub in 28H or 36H. Comes with Ceramic Hybrid bearings and Titanium bolts! Customize your colors!

Please note that the bolts are 8mm, but suitable for use with a 10mm fork.

Description and Drawings

• A - Hub Center To Flange Center, Non-Drive Side (mm): 33.8
• B - Hub Center To Flange Center, Drive Side (mm): 33.8
• C - Axle Width (mm): 100
• Spoke Hole Circle Diameter, Drive Side (mm): 42
• Spoke Hole Circle Diameter, Non-Drive Side (mm): 42
• Spoke Hole Counts Available: 28/36

SPECIFICATION

• Weight: 6.0 oz
• Dimensions: 9.5 × 4.5 × 4 in
• Hub Type: Front
• Axle Width - mm: 100
• Attach Style: Bolt-on
• Hub Shell Style: Solid
• Bolts: Titanium
• Spoke Tension - Max kgf: 120
