Onyx Rear Ultra SS Cassette Hub

The Onyx Rear Ultra SS Cassette Hub at J&R Bicycles has been designed to handle the toughest demands and riding styles of some of the best in the business. Featuring a super-sized bearing and clutch assembly for maximum torque and power capabilities. The Ultra SS Series is also built to work with all standard axles 10mm (3/8") - 20mm thru-bolt and fits Onyx's Ultra SS Cogs. With several different color options available, you can add a bit of customization to your set up.

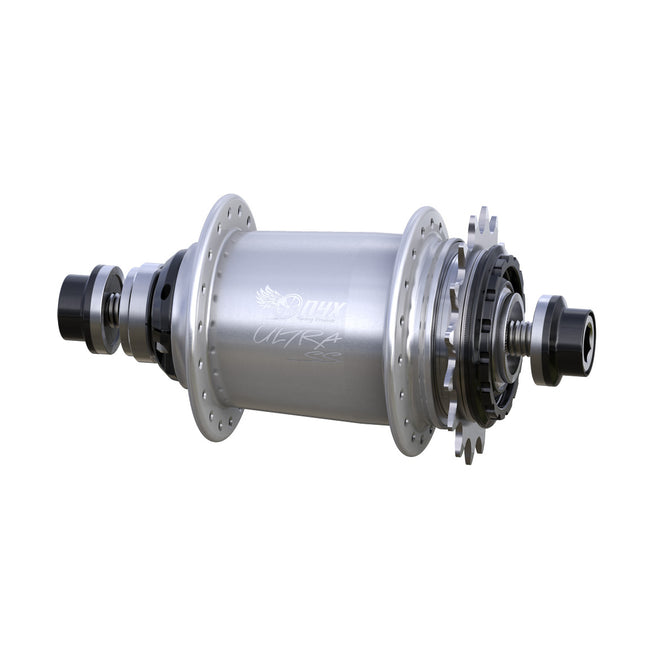

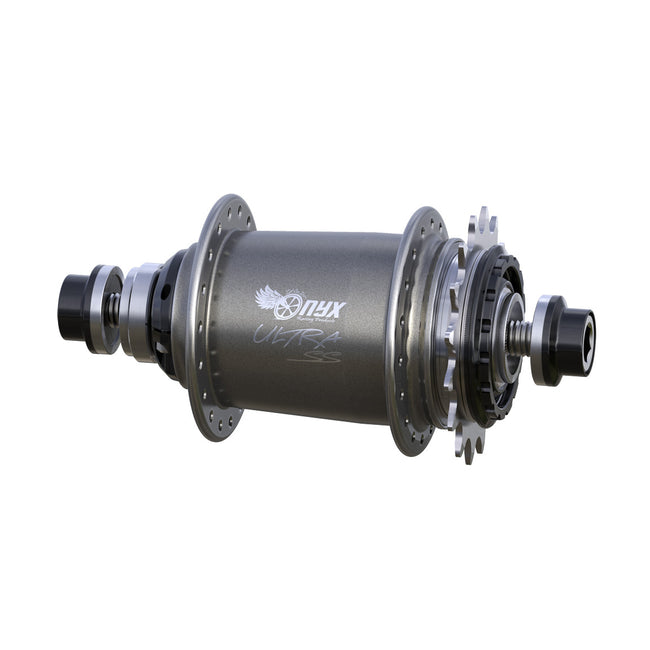

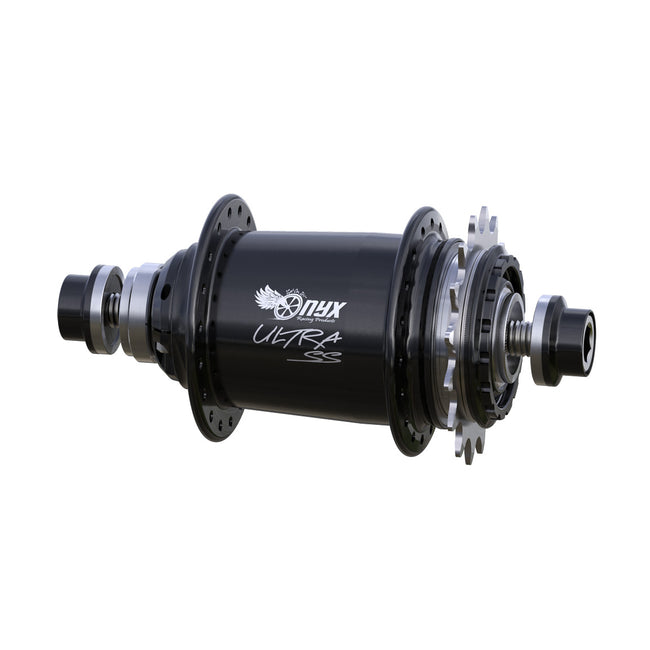

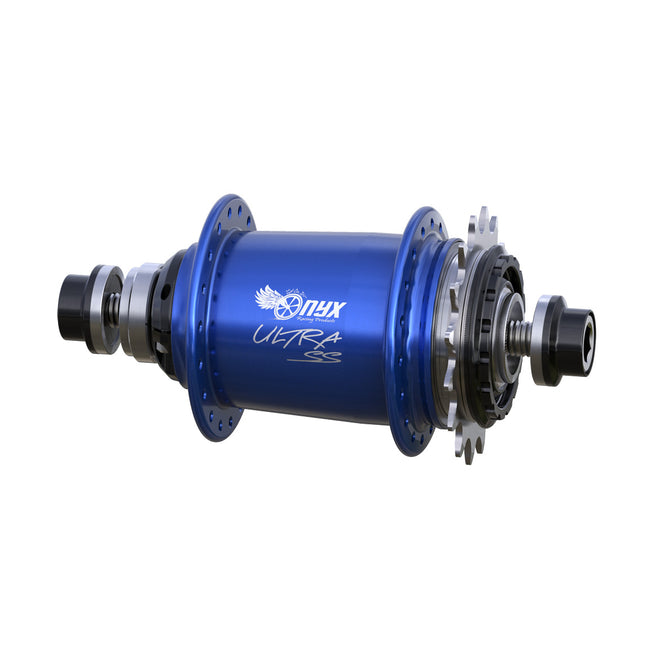

Onyx BMX ULTRA SS OX-110/10mm Bolt-on Rear Hub

SPECIFICATIONS

• Weight: 19.3 oz / 547 g
• Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
• Hub Type: Rear
• Axle Width - mm: 110
• Axle Diameter - mm: 10
• Spoke Count: 36
• Attach Style: Bolt-on
• Hub Shell Style: Solid
• Bolts: Titanium
• Driver Style: Onyx Driver
• Spoke Tension - Max kgf: 120
• Product Line: Classic

GEOMETRY

• Hub Center To Flange Center, Non-Drive Side (mm): 28
• Hub Center To Flange Center, Drive Side (mm): 28
• Axle Width (mm): 110
• Spoke Hole Circle Diameter, Drive Side (mm): 60
• Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
• Spoke Hole Counts Available: 36

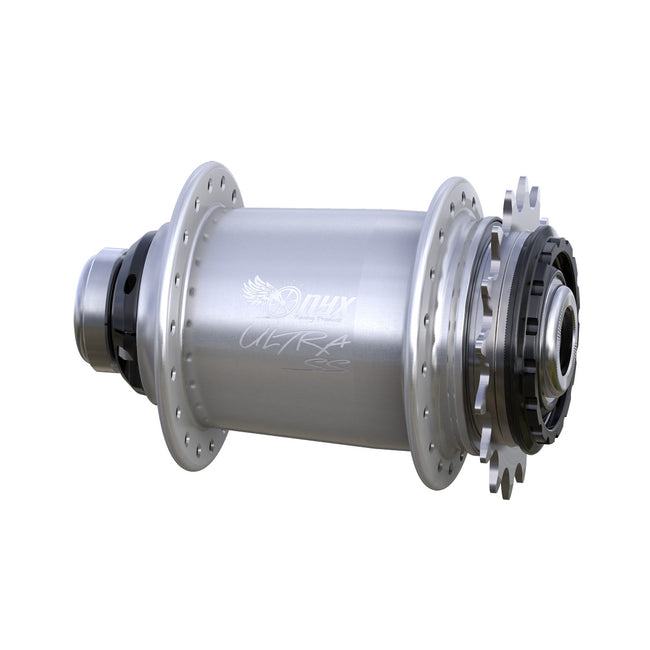

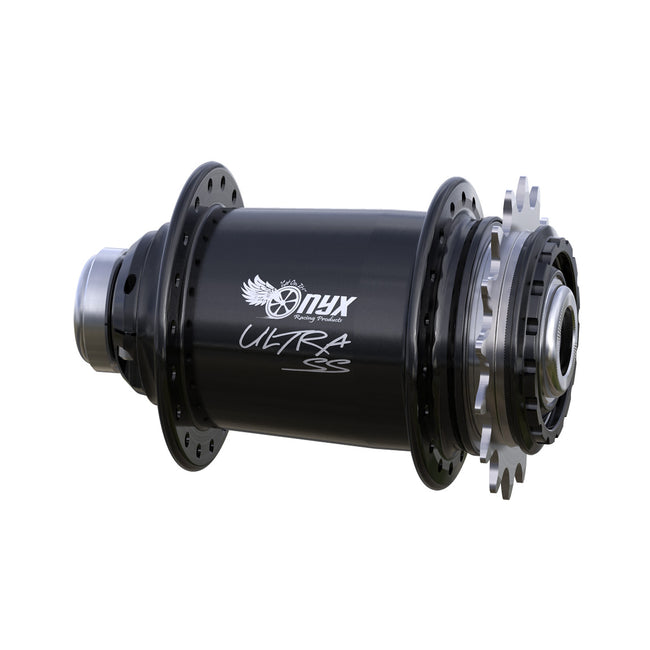

Onyx BMX ULTRA SS OX-110/15mm Thru-bolt Rear Hub

SPECIFICATIONS

• Weight: 16.9 oz / 479 g
• Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
• Hub Type: Rear
• Axle Width - mm: 110
• Axle Diameter - mm: 15
• Spoke Count: 36
• Attach Style: Thru-bolt
• Hub Shell Style: Solid
• Driver Style: Onyx Driver
• Spoke Tension - Max kgf: 120
• Product Line: Classic

GEOMETRY

• Hub Center To Flange Center, Non-Drive Side (mm): 28
• Hub Center To Flange Center, Drive Side (mm): 28
• Axle Width (mm): 110
• Spoke Hole Circle Diameter, Drive Side (mm): 60
• Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
• Spoke Hole Counts Available: 36

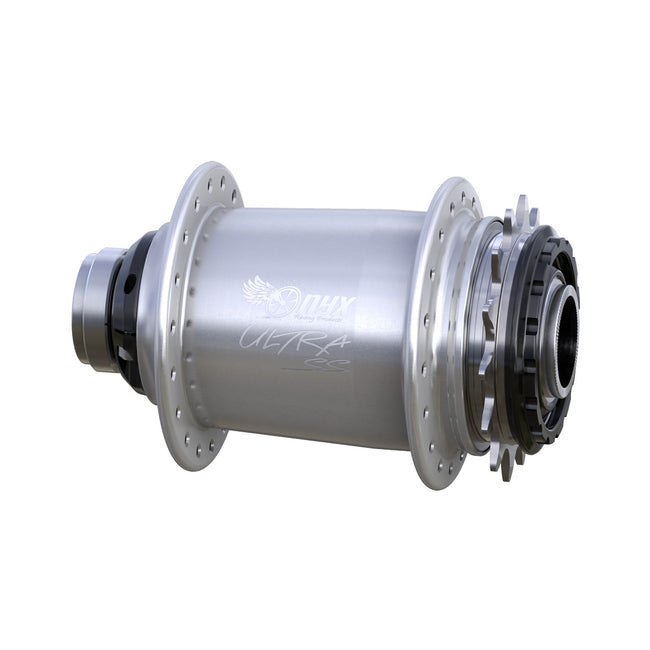

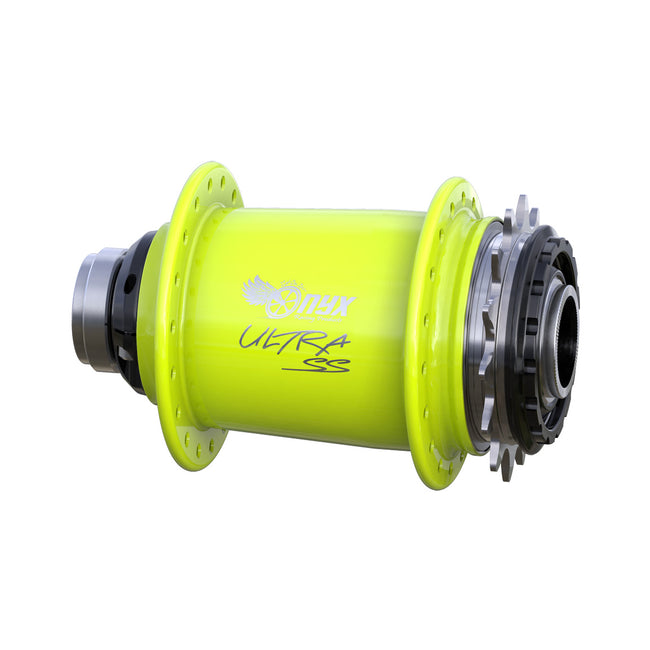

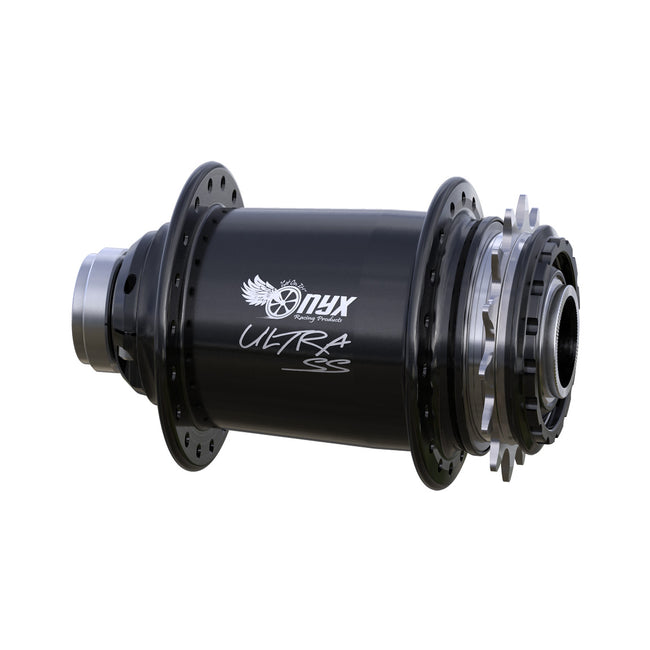

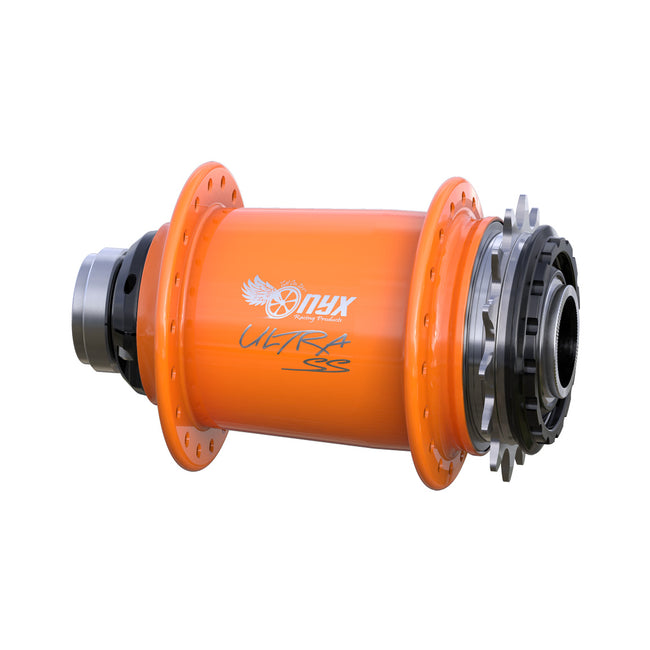

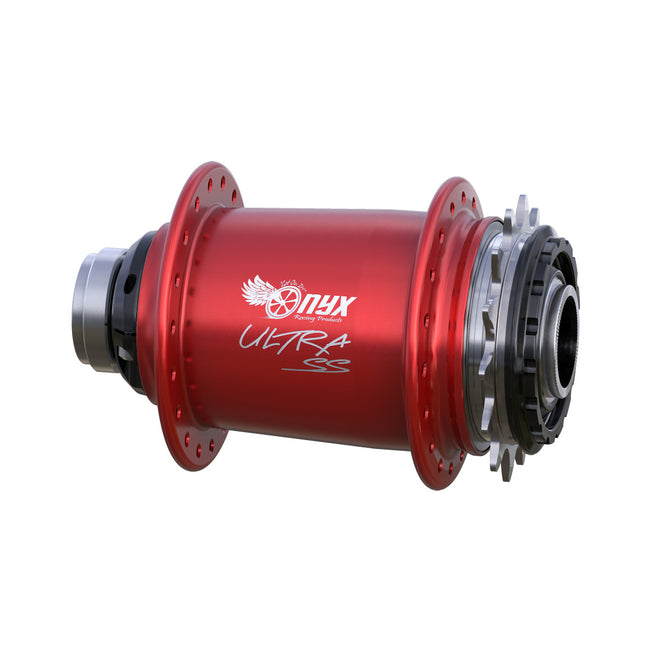

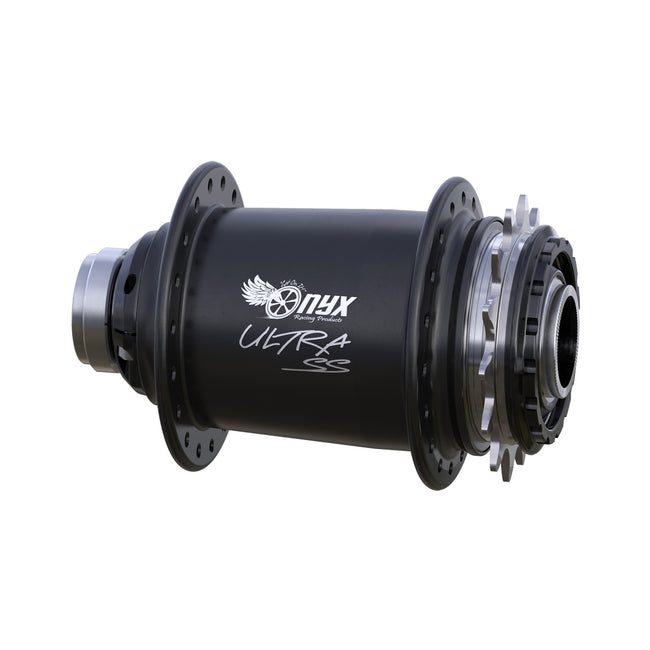

Onyx BMX ULTRA SS OX-110/20mm Thru-bolt Rear Hub

SPECIFICATIONS

• Weight: 16.9 oz / 479 g
• Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
• Hub Type: Rear
• Axle Width - mm: 110
• Axle Diameter - mm: 20
• Spoke Count: 36
• Attach Style: Thru-bolt
• Hub Shell Style: Solid
• Driver Style: Onyx Driver
• Spoke Tension - Max kgf: 120
• Product Line: Classic

GEOMETRY

• Hub Center To Flange Center, Non-Drive Side (mm): 28
• Hub Center To Flange Center, Drive Side (mm): 28
• Axle Width (mm): 110
• Spoke Hole Circle Diameter, Drive Side (mm): 60
• Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
• Spoke Hole Counts Available: 36
