Pure BMX Race Frame-Red - 1
Pure BMX Race Frame-Red - 2
Pure BMX Race Frame-Red - 3

Pure BMX Race Frame-Red

Pure
Sold Out

About This Product: Pure BMX Race Frame-Red

Exclusive to J&R BMX Superstore in the U.S., the PURE Aluminum BMX Race frames are a combination of modern technology combines with hand crafted workmanship.  The frames are made from the highest quality 6061 series hydro formed aluminum and specifically designed to reduce power loss.

CLICK HERE FOR BLACK
CLICK HERE FOR WHITE

FEATURES:
*6061 T6 Hydro-formed aluminum tubing
*Euro bottom bracket shell
*Unique tubing set
*CNC machined headtube

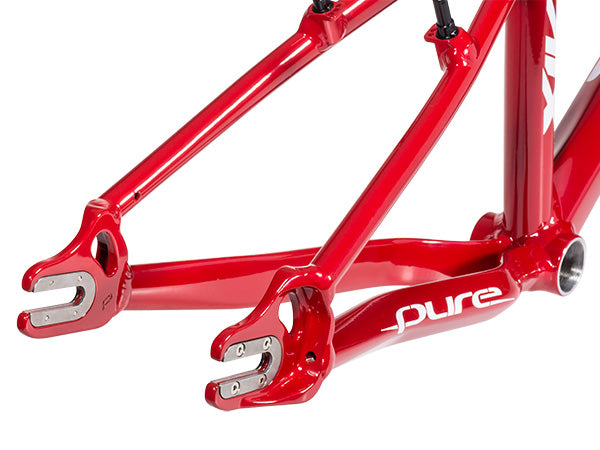

*CNC machined 3D drop out
*CNC machined bottom bracket

NOTE: J&R is the sole U.S. Distributor for Pure BMX frames.  If you are not from the U.S. please visit PURE for a list of distributors in your country.

SPECS:
USE: Race
MATERIAL: 6061 aluminum
HEADSET STYLE: Standard press fit on Expert and Expert XL - Integrated (Campy 45°/45°) on larger sizes.
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle | H/S: Headset size
SIZE
 TT
 CS
 H/S HA SA  SEAT CLAMP SEAT POST WEIGHT
MINI 18" 12.5" 1" Standard 72°  71°  1" (25.4mm)  22.2mm  TBA
JUNIOR 18.71" 12.5" 1" Standard  72°    71°  1" (25.4mm)  22.2mm  TBA
EXPERT 19.33" 12.5" 1" Standard 72° 71° 1" (25.4mm) 22.2mm TBA
EXPERT XL  20.24" 13" 1" Standard 72° 71° 1-1/4" (31.8mm)    27.2mm  TBA
JUNIOR PRO  20.91" 13.2"  1" Standard  73­° 71° 1-1/4" (31.8mm)   27.2mm TBA
PRO 20.91"  13.43"  1-1/8" Integrated  74° 71° 1-1/4" (31.8mm)  27.2mm  TBA
PRO XL
 21.54" 13.78" 1-1/8" Integrated 74° 71° 1-1/4" (31.8mm) 27.2mm TBA
PRO XXL 22.17" 13.78" 1-1/8" Integrated 74° 71° 1-1/4" (31.8mm) 27.2mm TBA
PRO XXXL
 23.05" 14.37" 1-1/8" Integrated 74° 71° 1-1/4" (31.8mm) 27.2mm TBA
 PRO 24"  21" 14.76" 1-1/8" Integrated  74°  71° 1-1/4" (31.8mm) 27.2mm  TBA
 PRO XL 24"  22"  14.76" 1-1/8" Integrated  74°  71° 1-1/4" (31.8mm) 27.2mm  TBA

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
