Pure BMX Race Frame-Green - 1
Pure BMX Race Frame-Green - 2
Pure BMX Race Frame-Green - 3

Pure BMX Race Frame-Green

Sold Out

About This Product: Pure BMX Race Frame-Green

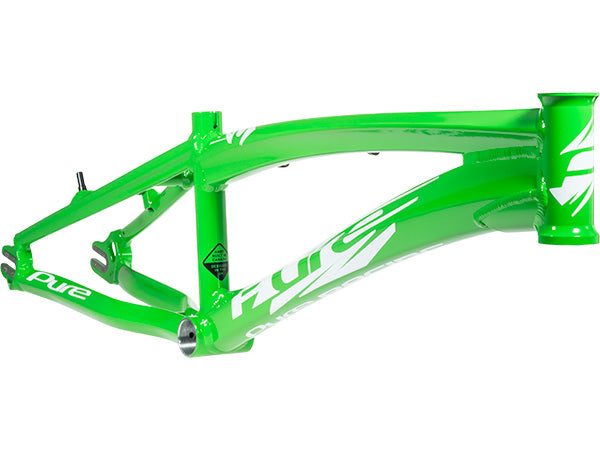

Exclusive to J&R BMX Superstore in the U.S., the PURE 2015 Aluminum BMX Race frames are a combination of modern technology combines with hand crafted workmanship. The frames are made from the highest quality 6061 series hydro formed aluminum and specifically designed to reduce power loss.

FEATURES

  • 6061 T6 Hydro-formed aluminum tubing
  • Euro bottom bracket shell
  • Unique tubing set

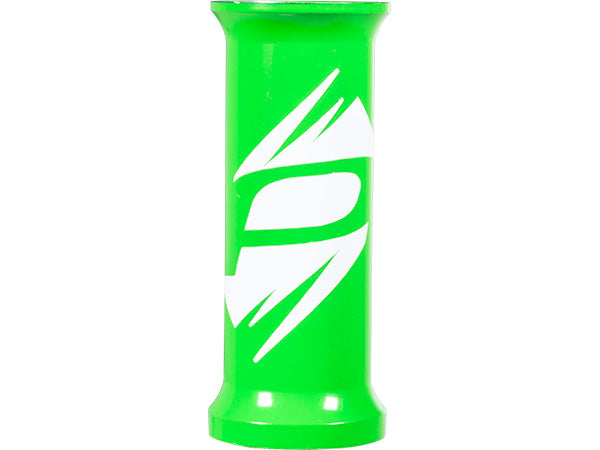

  • CNC machined headtube

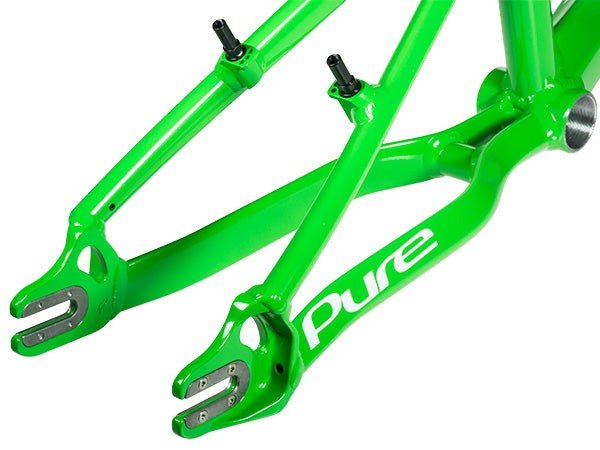

  • CNC machined 3D drop out
  • CNC machined bottom bracket

SPECIFICATION

  • USE: Race
  • MATERIAL: 6061 aluminum
  • HEADSET STYLE: Standard press fit on Expert and Expert XL - Integrated (Campy 45°/45°) on larger sizes.
  • BRAKE MOUNTS: V-Brake
  • BB SHELL: Euro

GEOMETRY

Pure BMX Race Frame-Green Geometry Chart
SIZE TT CS HS HA SA SC SP
SIZE: EXPERT TT: 19.33" CS: 12.5" HS: 1" Standard HA: 72° SA: 71° SC: 1" (25.4mm) SP: 22.2mm
SIZE: EXPERT XL TT:  20.24" CS: 13" HS: 1" Standard HA: 72° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm
SIZE: PRO TT: 20.91" CS:  13.43" HS: 1-1/8" Integrated HA: 74° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm
SIZE: PRO XL TT: 21.54" CS: 13.78" HS: 1-1/8" Integrated HA: 74° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm
SIZE: PRO XXL TT: 22.17" CS: 13.78" HS: 1-1/8" Integrated HA: 74° SA: 71° SC: 1-1/4" (31.8mm) SP: 27.2mm

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
