Pure V6 Alloy BMX Race Frame-Matte White - 1
Pure V6 Alloy BMX Race Frame-Matte White - 2

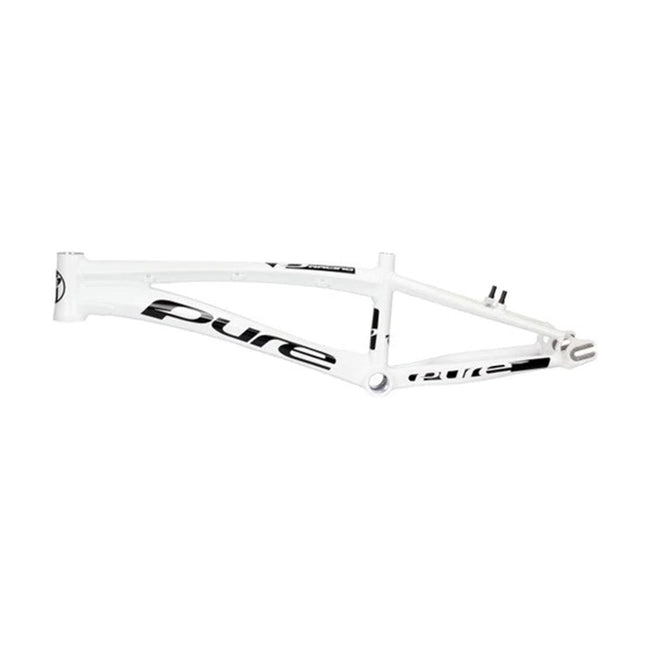

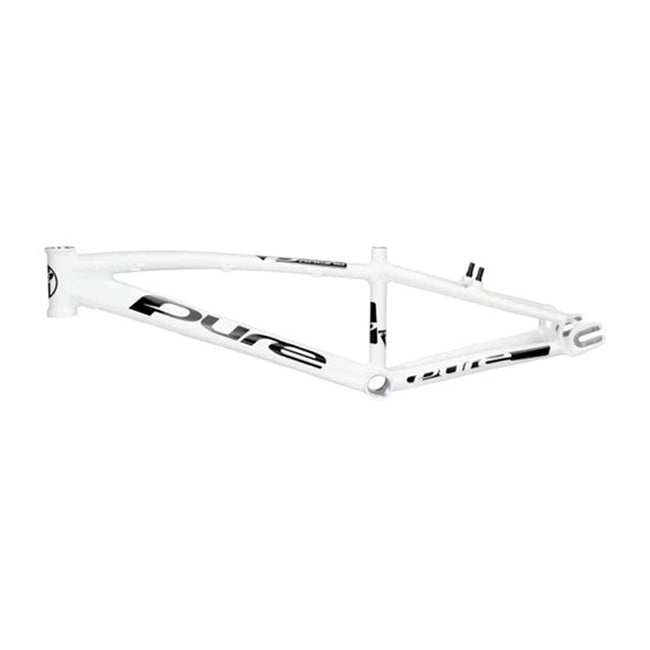

Pure V6 Alloy BMX Race Frame-Matte White

Pure
$669.95
  • Expert
  • Expert XL
  • Pro XXXL
  • Pro XXL 24-inch
Secure Checkout

About This Product: Pure V6 Alloy BMX Race Frame-Matte White

The Pure V6 Alloy BMX Race Frame is a 6061 aluminum frame with all hydro-formed tubes. Hydro-forming allows for very precise, very strong construction. The result? A perfectly stiff, brilliantly responsive frame that maximizes every single pedal stroke. Each frame includes a disc brake adapter, so no need to worry about which brake type you want to use now or later. Just don’t misplace that adapter! Pure has created an on-point frame geometry that will keep you stable whether you’re in the air or on the ground...or half on the ground. If you’re ready to seriously maximize your potential on the track, then you’re ready for the V6.

FEATURES

  • CNC Machined head tube, bottom bracket shell and 3D dropouts
  • Hydro Formed 6000 Series Tubing
  • Tubing Designed for Maximum Power Transfer
  • Stainless Steel drop out inserts for increased drop out life
  • Extremely balanced geometries
  • 10mm Dropouts
  • Responsive front end
  • Short Seat Tube
  • 3M Vinyl Graphics
  • Removable V-Brake mounts
  • Disc Brake Adaptor Included
  • Chain Tensioner/Axle Adjustor Included

SPECIFICATIONS

PURE V6 BMX Race Frame-Gun Metal Grey Geometry Chart
SIZE TOP TUBE REAR END BB RIDER AREA HEAD ANGLE SET TUBE ANGLE POST SIZE / CLAMP SIZE HEADSET WEIGHT
SIZE:Junior TOP TUBE:18.71"475.2mm REAR END:12.5"317.5mm BB:11.04"280.39mm RIDER AREA:19.25" HEAD ANGLE:72° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 22.2mm 25.4mm HEADSET: 1 1/8 Int WEIGHT: 1.26kg
SIZE: Expert TOP TUBE: 19.33 491mm REAR END: 12.5" 317.5mm BB: 11.04" 280.39mm RIDER AREA: 19.7" HEAD ANGLE: 72° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 22.2mm 25.4mm HEADSET: 1 1/8 Int WEIGHT: 1.28kg
SIZE: Expert XL TOP TUBE: 20.24" 514mm REAR END: 12.99" 330mm BB: 11.04" 280.39mm RIDER AREA: 20.6" HEAD ANGLE: 72° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1/8 Int WEIGHT: 1.42kg
SIZE: Pro JR TOP TUBE: 20.5" 521mm REAR END: 13.2" 335mm BB: 11.04" 280.39mm RIDER AREA: 20.7" HEAD ANGLE: 73° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1 1/8 In WEIGHT: 1.62kg
SIZE: Pro TOP TUBE: 20.91" 531mm REAR END: 13.43" 341.2mm BB: 11.63" 295.4mm RIDER AREA: 21.4" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1.5" Tap WEIGHT: 1.72kg
SIZE: Pro XL TOP TUBE: 21.54" 547mm REAR END: 13.78" 350mm BB: 11.63" 280.39mm RIDER AREA: 21.75" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1.5" Tap WEIGHT: 1.76kg
SIZE: Pro XXL TOP TUBE: 22.17" 563mm REAR END: 13.78" 350mm BB: 11.63" 280.39mm RIDER AREA: 22.5" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1.5" Tap WEIGHT: 1.78kg
SIZE: Pro XXXL TOP TUBE: 23.0" 585mm REAR END: 14.37" 365mm BB: 11.63" 280.39mm RIDER AREA: 23.0" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1.5" Tap WEIGHT: 1.82kg
SIZE: Pro XL TOP TUBE: 22.0" 559mm REAR END: 14.76" 375mm BB: 11.65" 295mm RIDER AREA: 22.75" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm 31.8mm HEADSET: 1.5" Tap WEIGHT: 1.84kg
SIZE: Pro XXL TOP TUBE: 23.0" 584mm REAR END: 14.76" 375mm BB: 11.65" 295mm RIDER AREA: 23.6" HEAD ANGLE: 74° SET TUBE ANGLE: 71° POST SIZE / CLAMP SIZE: 27.2mm HEADSET: 1.5” Tap WEIGHT: 1.88kg

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
