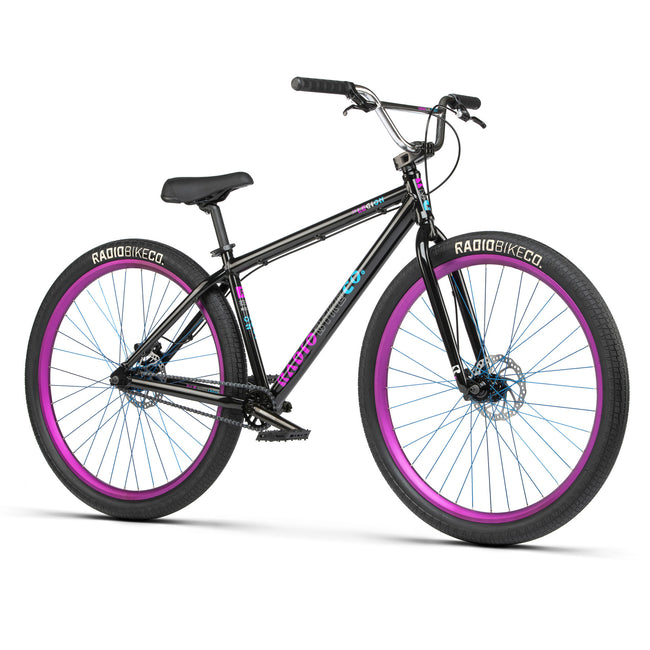

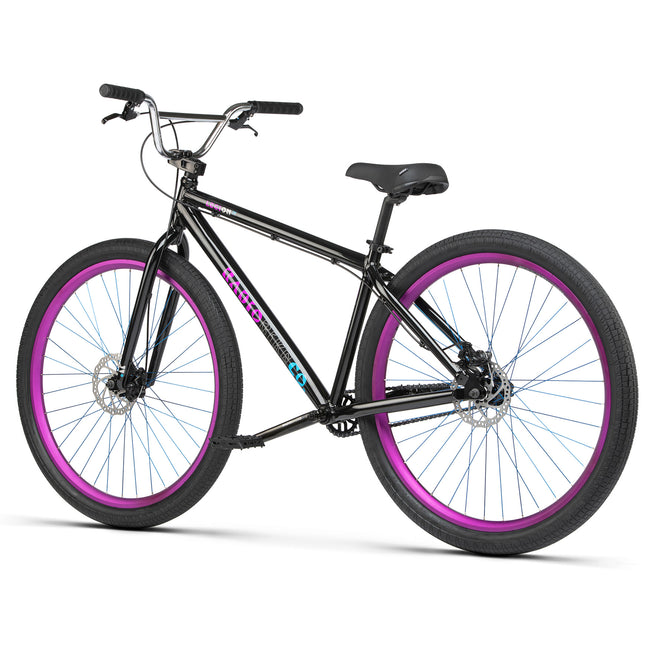

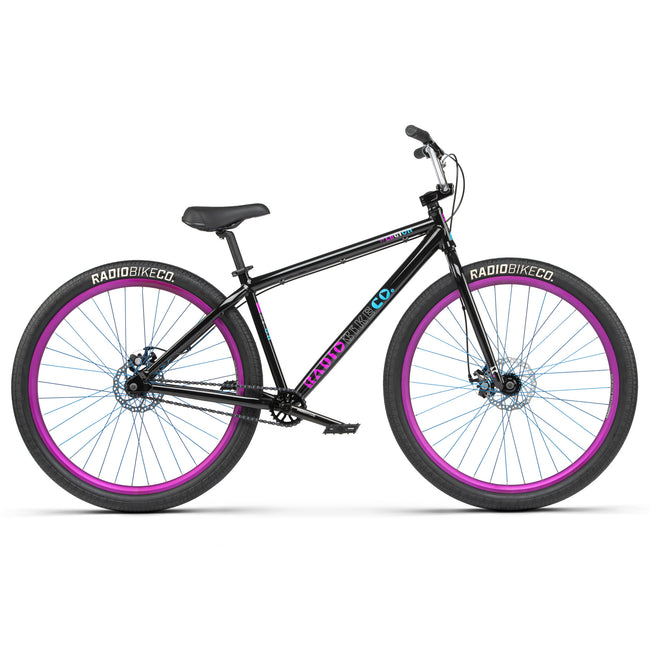

Radio Legion 29" BMX Dirt Jump Bike-Black

The Radio 2021 Legion 29" BMX Dirt Jump Bike-Cosmic Splatter is the ultimate urban wheelie machine. The frame geometry is stable yet responsive and designed to pull wheelies as easy as pumpkin pie. Featuring a Salt headset and stem and Tektro disc brakes on front and rear, this bike will have you riding in style so smooth you might think it's magic. The Legion comes in two wheel sizes. The bike you are looking at right now is the 29" version.

Specifications

• FRAME RADIO "LEGION 29" frame, 6061-T6 alloy
• FORK RADIO "LEGION 29" full crmo fork, 30mm offset
• HANDLEBAR RADIO "LEGION" full 4130 crmo bar
• GRIPS RADIO "FREQUENCY XL" grips, flangeless, 160mm
• STEM SALT "COMP" top load stem, 50mm reach
• HEADSET FSA "NO.28" a-headset
• BRAKE LEVER TEKTRO "RS-360A", front & rear

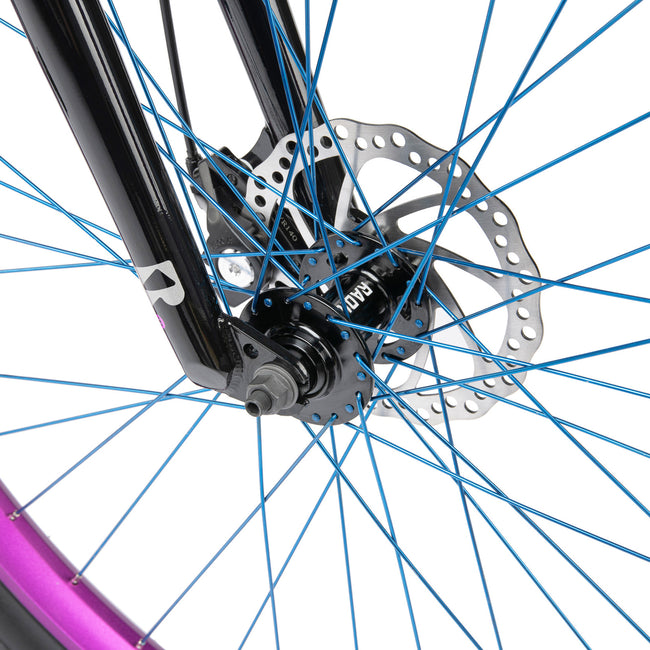

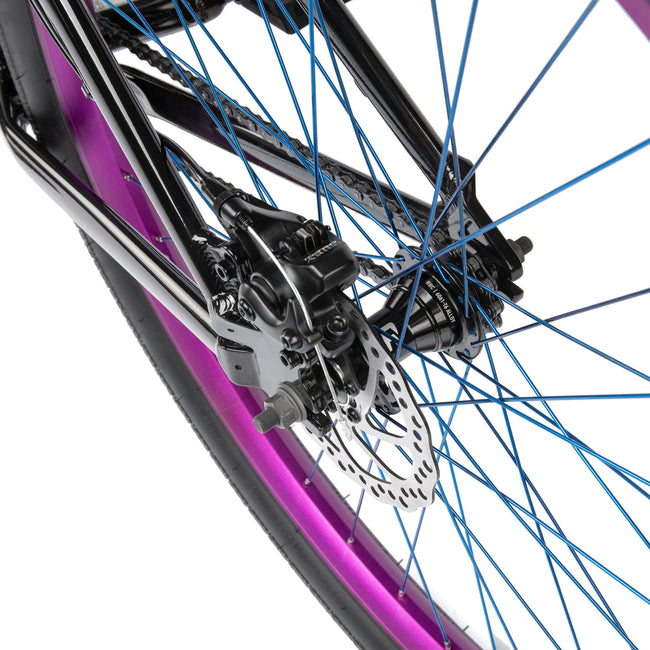

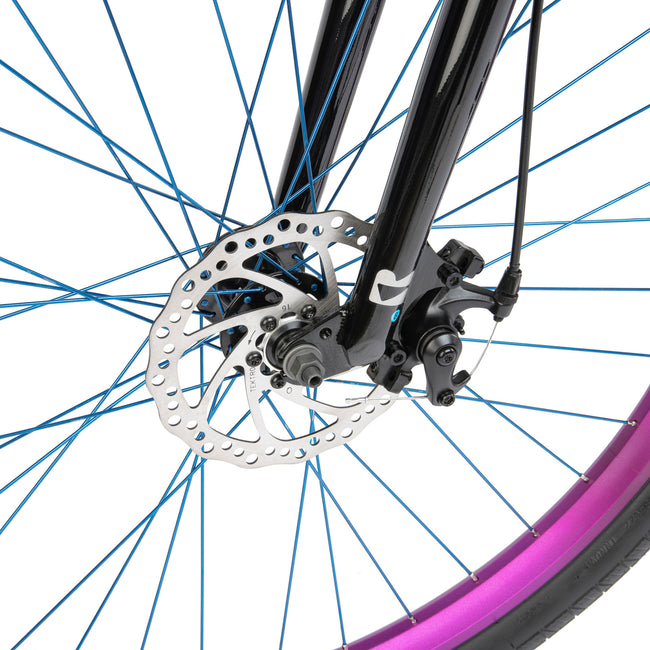

• BRAKE TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear
• CRANK RADIO "PRO" tubular 3pc crank crmo, 170mm, 8 spline
• BB RADIO "BSA19" sealed bearing
• PEDALS RADIO "PRO" Nylon Fibreglass Pedals
• CHAIN SALT "AM" chain, WZ1 type

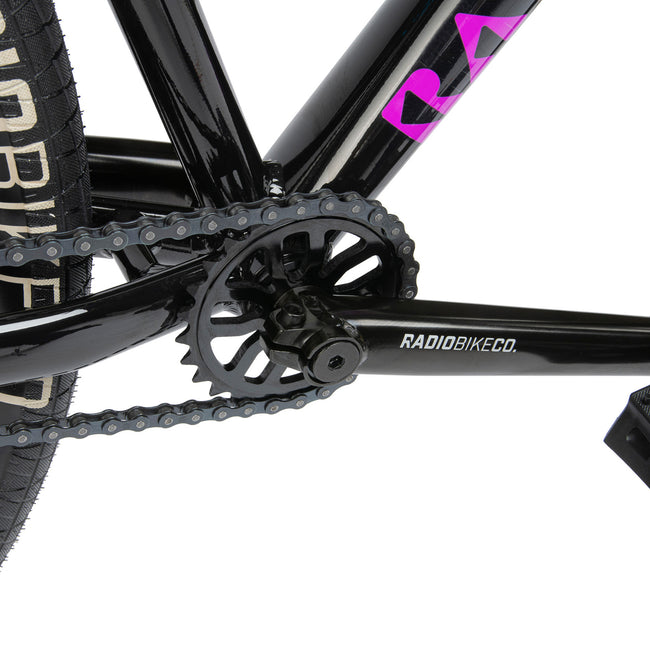

• SPROCKET RADIO "LEGION" sprocket, alloy, 26t
• DRIVER 12T cassette driver, sealed bearing
• FRONT HUB RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 36h
• REAR HUB RADIO "PRO" disc hub, alloy, sealed, 12t, 3/8″s axle, 36h
• FRONT RIM RADIO "DB35" rim, double wall
• REAR RIM RADIO "DB35" rim, double wall

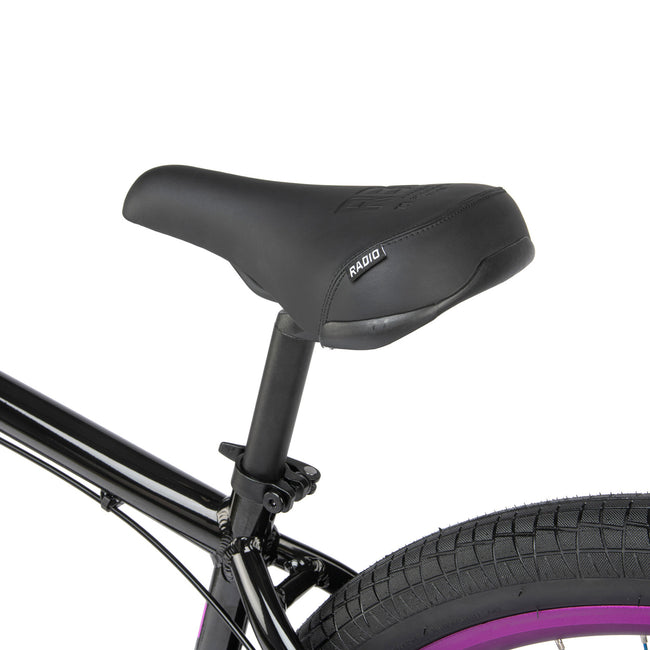

• SEAT RADIO "LEGION" railed seat
• SEAT POST RADIO "SP228" micro-adjust seat post alloy

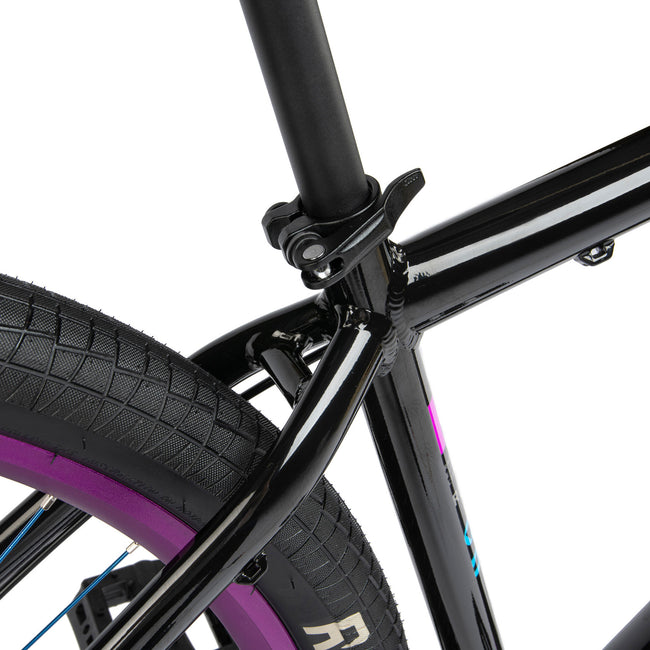

• SEAT CLAMP RADIO "QUICK RELEASE" alloy seat clamp

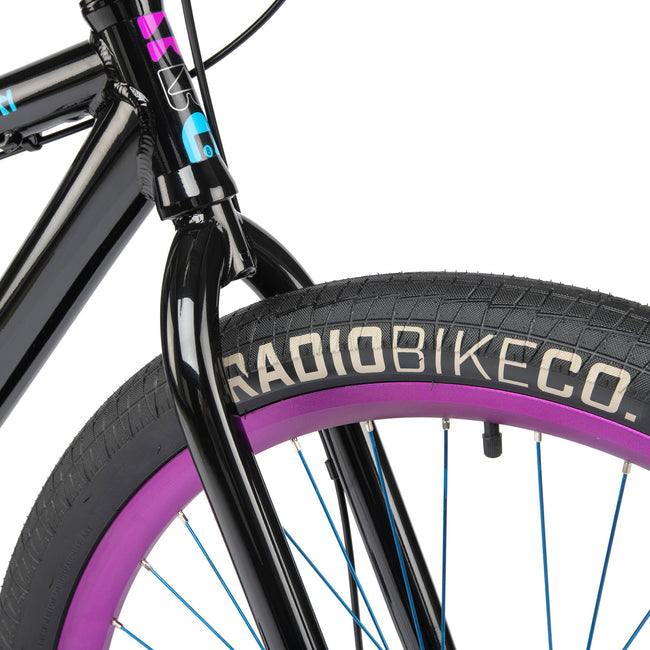

• TIRES RADIO "LEGION 29" tires, 2.3" front & rear
• WEIGHT 15.04kg / 33.15lbs

Frame Geometry

• TOP TUBE LENGTH 23.5"
• CHAIN STAY LENGTH 18"
• HEAD TUBE ANGLE 71 degrees
• SEAT TUBE ANGLE 71 degrees
• BOTTOM BRACKET HEIGHT 65mm drop
• SEAT TUBE LENGTH 430mm

Handlebar Geometry

• RISE 6.1"
• WIDTH 30"
• BACKSWEEP 10 degrees
• UPSWEEP 3 degrees
