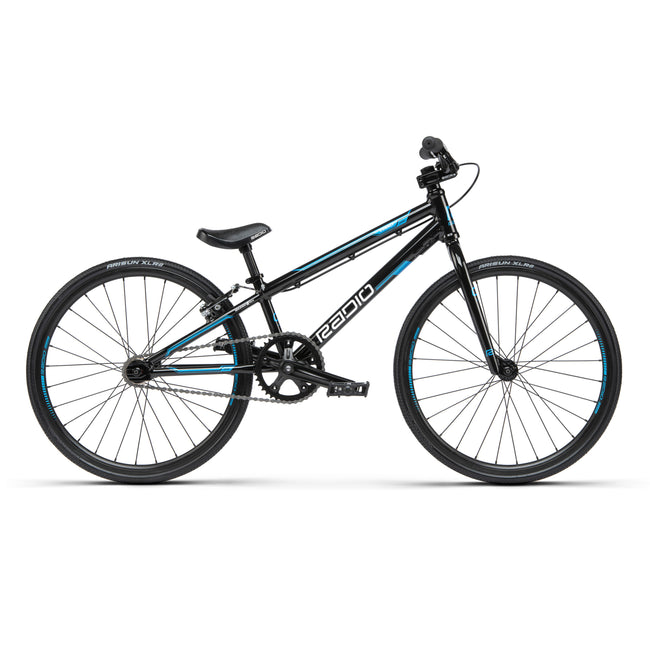

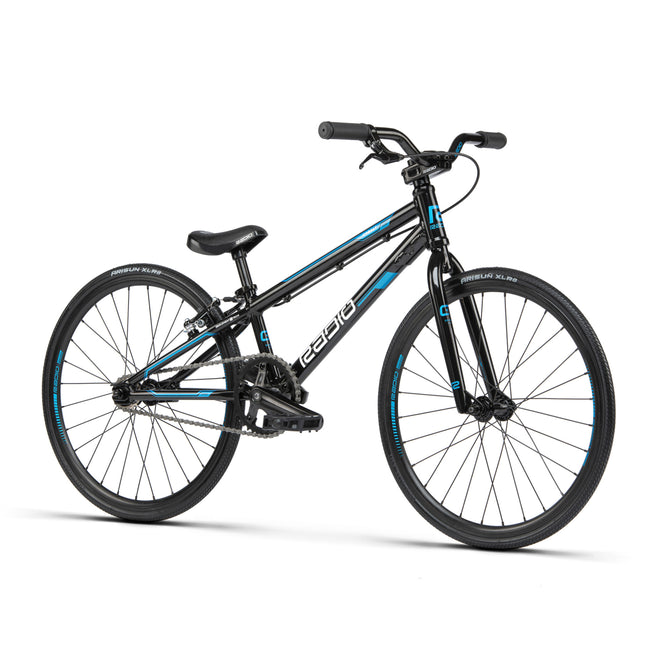

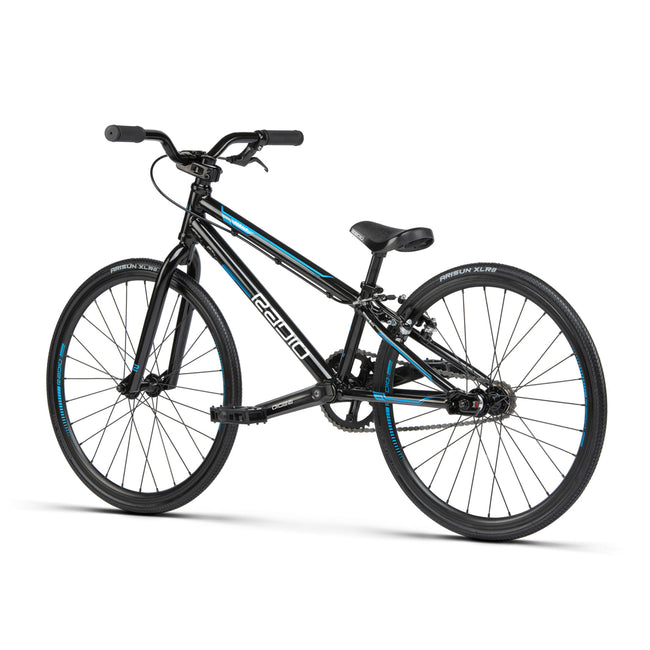

Radio Cobalt Mini BMX Race Bike-Black

The Radio Cobalt Mini BMX Race Bike-Black at J&R Bicycles delivers a powerful combination of time-tested geometry and precisely tuned race components. The Cobalt Mini, a compact powerhouse, boasts a scaled-down frame and a lighter build kit for lightweight power on the track. With a fresh makeover boasting striking new paint and graphics, spotting a Cobalt on the track is a breeze. Not to mention, all Cobalt bikes now come equipped with fully sealed front hubs and integrated headsets, so you get pro-level performance without the elite price tag. The Cobalt is an unstoppable force ready to conquer any racecourse.

SPECIFICATIONS

• FRAME: 6061 T6 alloy, forged dropouts with int. chaintensioner
• FORK: cr-mo, 1" butted steerer tube, hi-ten fork legs, 23mm offset
• HANDLEBAR: 4130 seamless cr-mo
• GRIPS: Radio, diamond knurling, closed end, flangeless, 102mm length
• STEM: Radio, Cobalt-toploader, ext. 40mm, alloy
• HEADSET: Radio, integrated headset, sealed, 1"
• BRAKE LEVER: PROMAX “XL-378” alloy brake rear
• BRAKE: PROMAX “MV-87” alloy brake rear
• CRANK: RADIO “Cobalt” forged alloy 3pc crank, 140mm long
• BB: Radio, BSA square taper, sealed
• PEDALS: Radio, Cobalt Junior, nylon
• CHAIN: KMC, Z6, 1/2" x 3/32"
• SPROCKET: RADIO alloy, 38t sprocket
• DRIVER: ATA, 16T, 1/2" x 3/32", cr-mo
• FRONT HUB: RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8"s, 28h, crmo axle
• REAR HUB: RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8"s, crmo axle, 28h, flip flop
• RIMS: Radio, A-M5, double wall, 28H, alloy f&r
• SEAT: RADIO “Mini” combo seat
• SEAT POST: Radio 22.2mm alloy
• SEAT CLAMP: Radio, seat clamp, forged, alloy
• TIRES: Arisun, XLR8, 20"x 1-1/8"
• WEIGHT: 7.79kg/ 17.18lbs

GEOMETRY

• TOP TUBE LENGTH: 17.5"
• CHAIN STAY LENGTH: 13.1"
• HEAD TUBE ANGLE: 72°
• SEAT TUBE ANGLE: 70°
• BOTTOM BRACKET HEIGHT: 10.5"
• RISE: 2.25"
• WIDTH: 22.5"
• BACKSWEEP: 8°
• UPSWEEP: 2°
