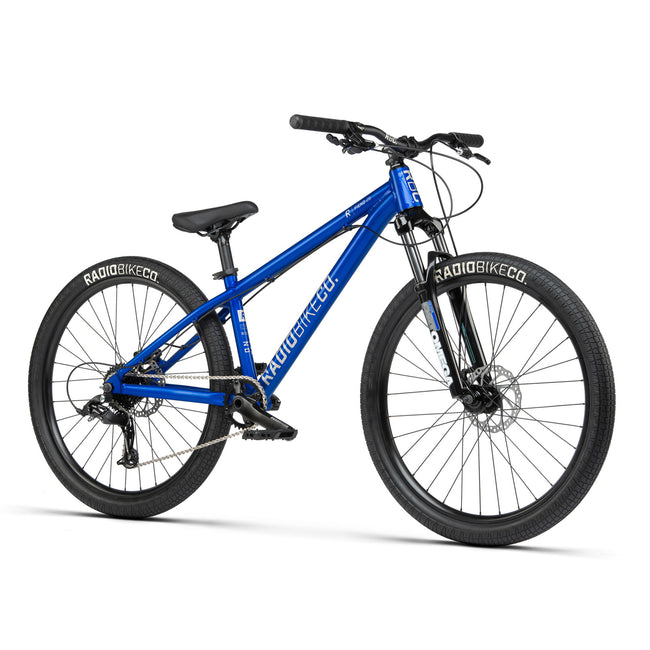

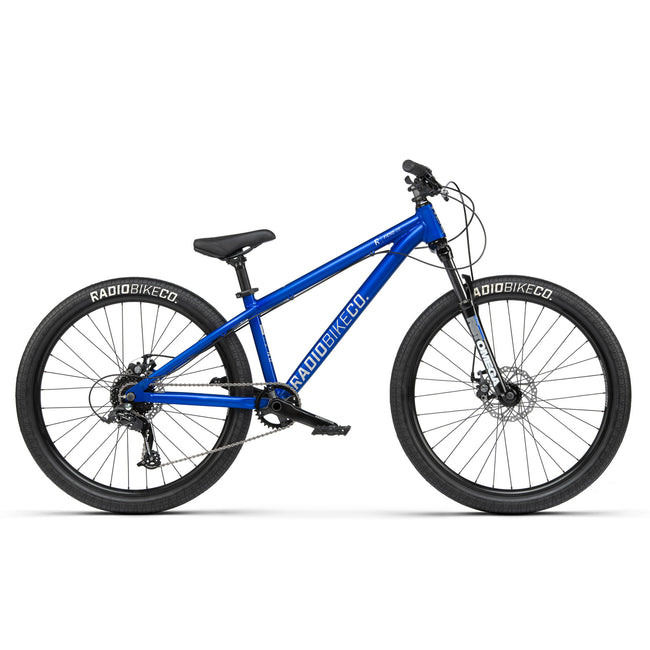

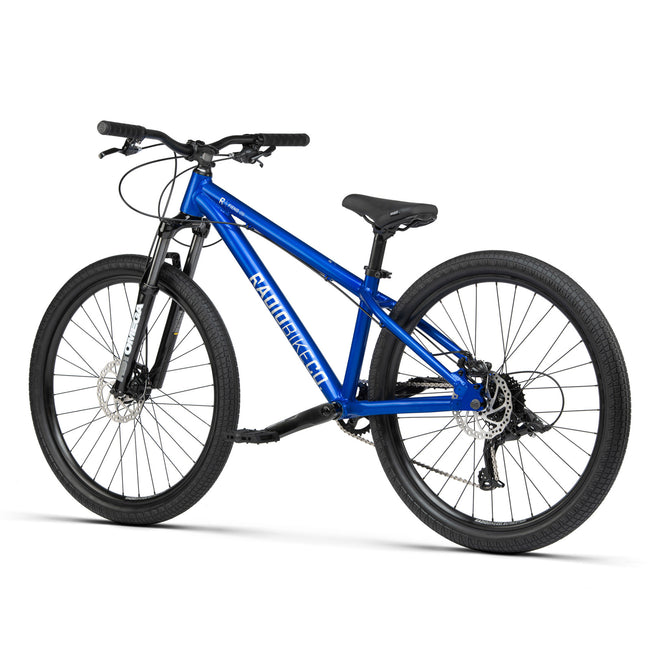

Radio Fiend 26" BMX Dirt Jump Bike-Candy Blue

The Radio Fiend 26" BMX Dirt Jump Bike-Candy Blue is the perfect machine for letting loose and going wherever the fun takes you. Featuring a RADIO “FIEND” frame, 6061-T6 alloy, tapered head tube, with BMX race geometry, and with a 10cm RST Omega travel fork, front and rear tektro Aries disc brakes, and an 8-speed gear set-up this beast of a bike is at home both on and off the street. This thing will gladly help you do all the things you want to do, where you want to do them.

Specifications

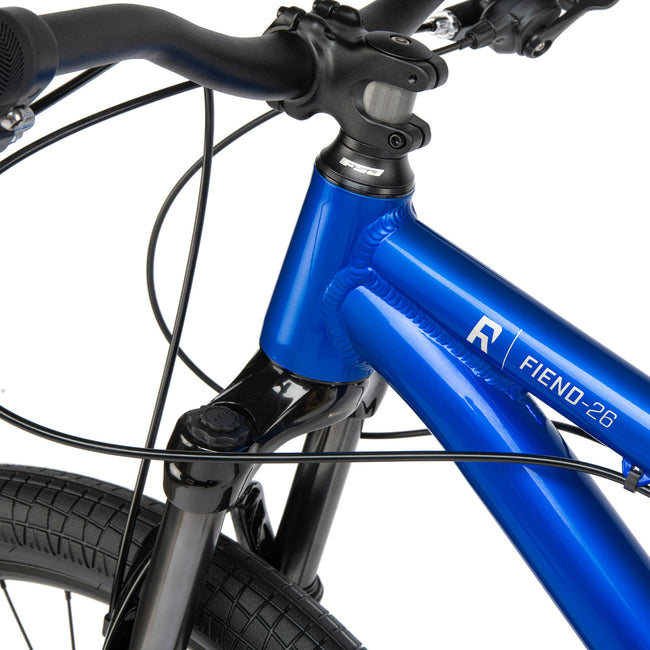

• FRAME: RADIO “FIEND” frame, 6061-T6 alloy, tapered head tube

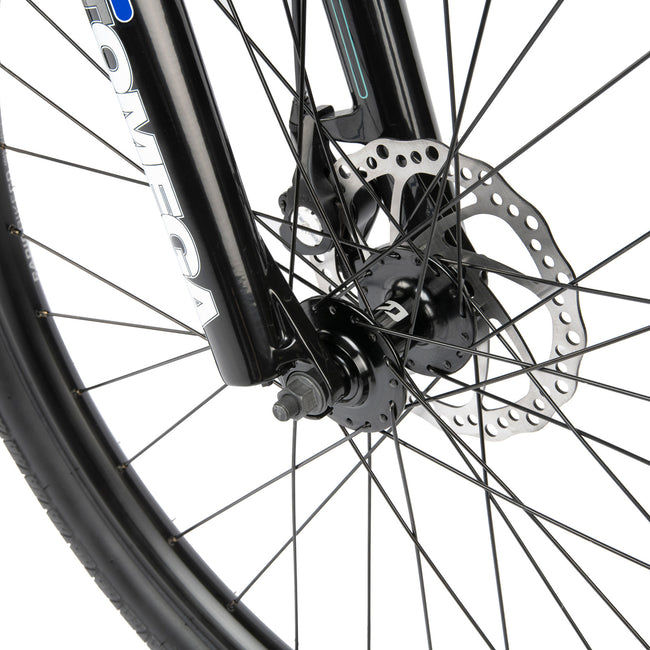

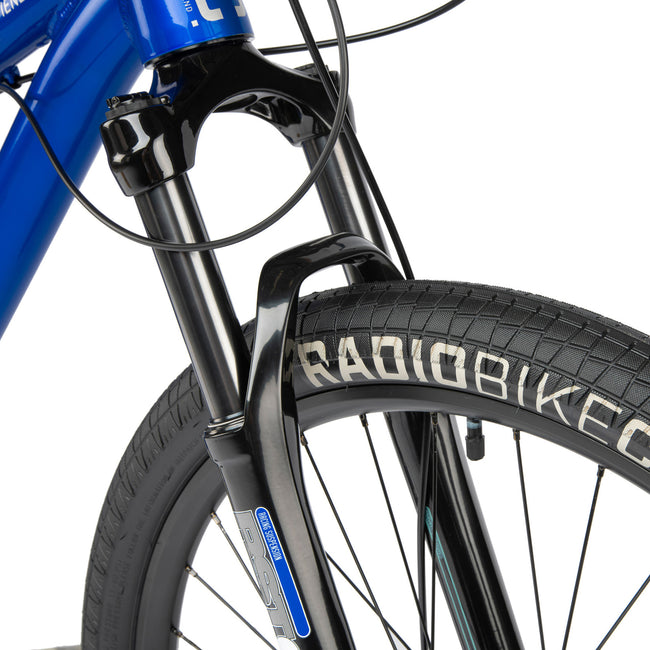

• FORK: RST "OMEGA T26" fork, 100mm travel
• HANDLEBAR: RADIO "ASURA" bar, 6061-T6 alloy, 31.8mm
• GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm
• STEM: RADIO "DJ" frontload stem, alloy, 40mm reach
• HEADSET: FSA "NO.57E" integrated A-headset, 1-1/8″-1.5″
• BRAKE LEVER: TEKTRO "RS-360A" lever, front & rear

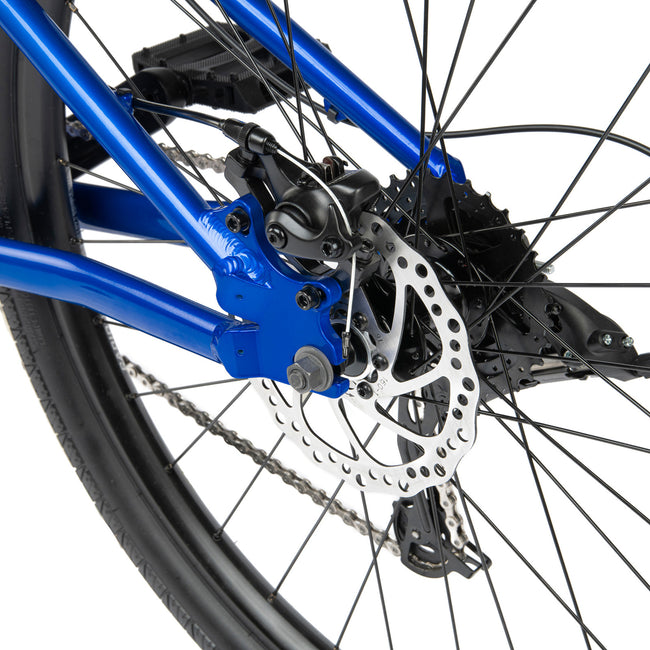

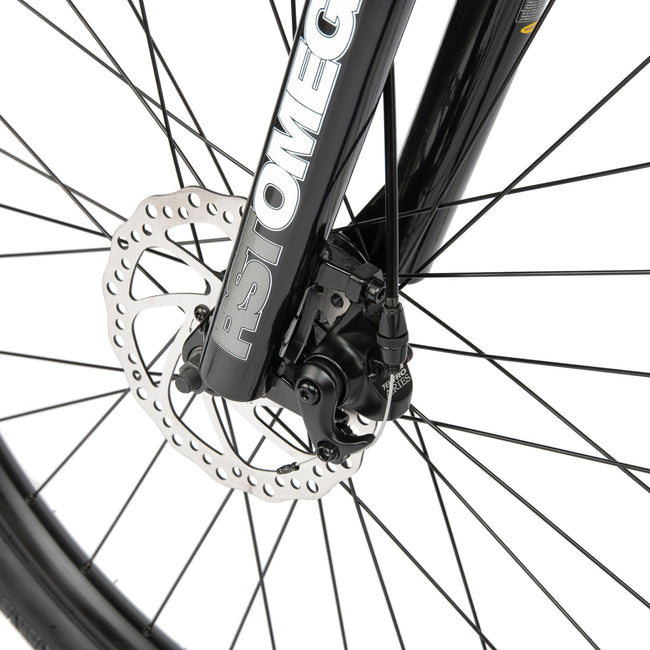

• BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear

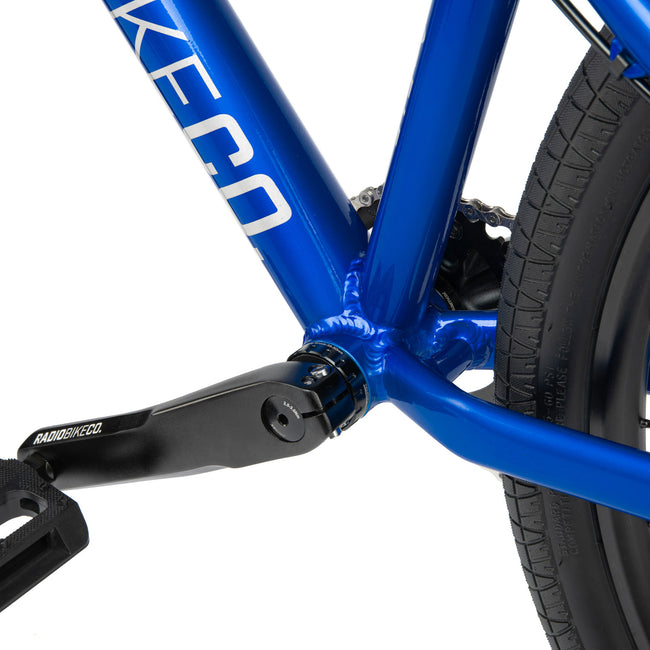

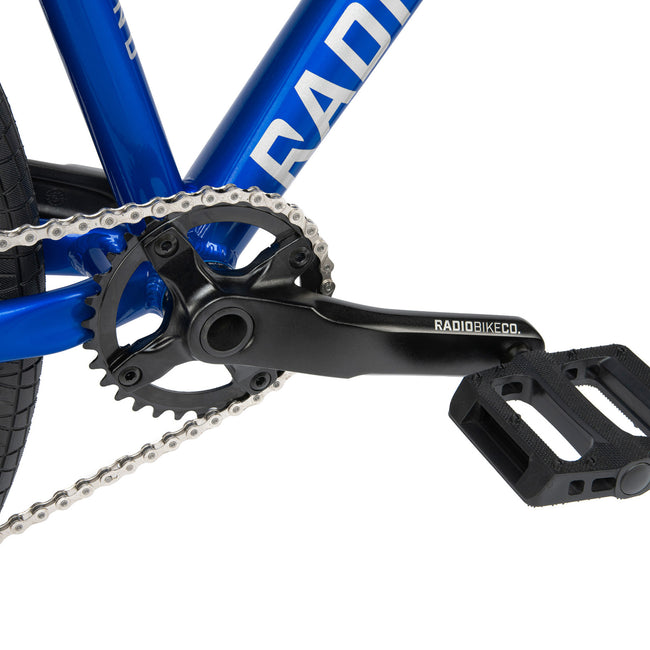

• CRANK: RADIO "PRO" 2pc crank, forged alloy, 170mm, 24mm spindle
• BB: RADIO "BSA24" bb set, sealed bearing

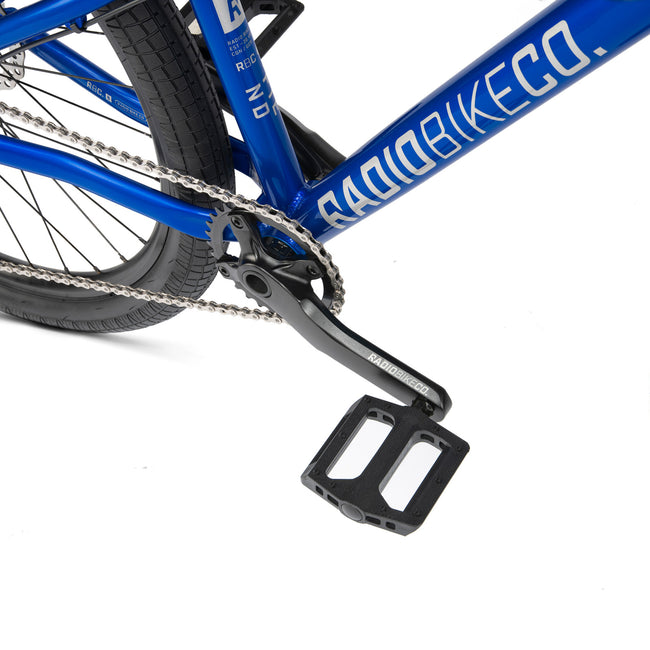

• PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
• CHAIN: KMC "X8" chain
• SPROCKET: RADIO "AM" steel sprocket 32T

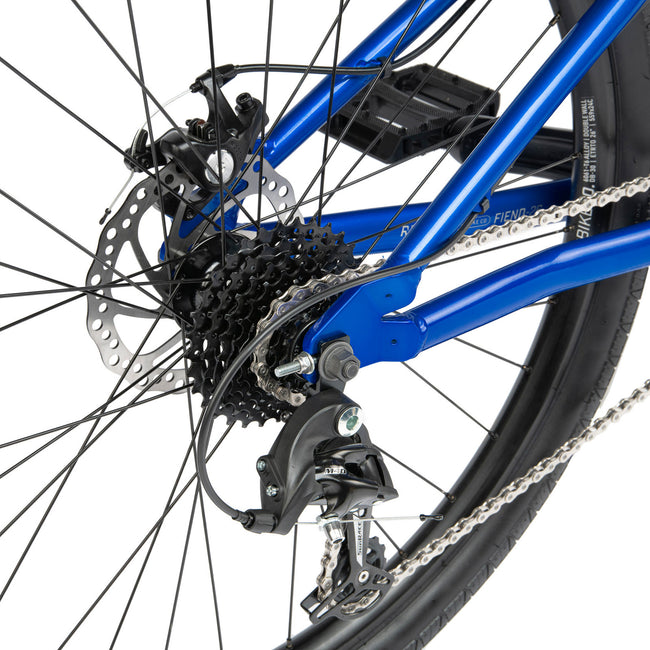

• DRIVER: SUN RACE 12-32T, 8 speed
• FRONT HUB: RADIO "AM-DJ" disc hub, alloy, sealed, 3/8"s male axle, 32h
• REAR HUB: RADIO "AM-DJ" disc cassette hub, alloy, sealed, 3/8"s male axle, 32h
• FRONT RIM: RADIO "DB30"; rim, double wall
• REAR RIM: RADIO "DB30" rim, double wall

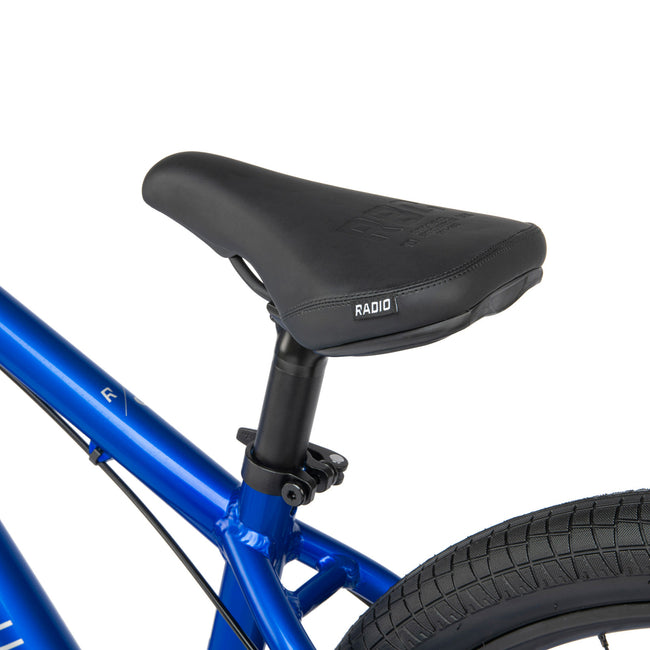

• SEAT: RADIO "DJ"railed seat

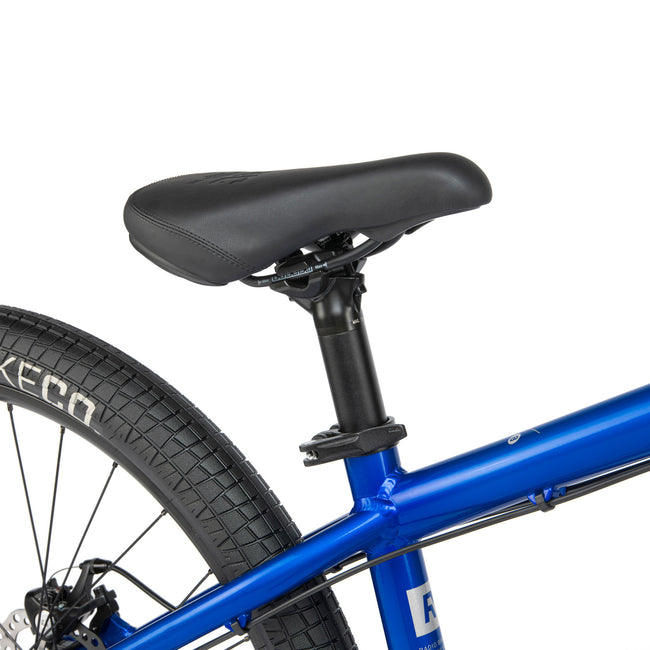

• SEAT POST: RADIO "SP53" seat post, micro-adjust, alloy, 300mm
• SEAT CLAMP: RADIO "QUICK RELEASE" seat clamp, alloy
• TIRES: RADIO "ROOKIE" tires, 2.2″ front & rear
• WEIGHT: 13.74kg / 30.32lbs

Frame Geometry

• TOP TUBE LENGTH 22.3"
• CHAIN STAY LENGTH 15.8"
• HEAD TUBE ANGLE 70 degrees
• SEAT TUBE ANGLE 75 degrees
• BOTTOM BRACKET HEIGHT 25mm drop
• STANDOVER HEIGHT 11"

Handlebar Geometry

• RISE 50mm
• WIDTH 740mm
• BACKSWEEP 8 degrees
• UPSWEEP 3 degrees
