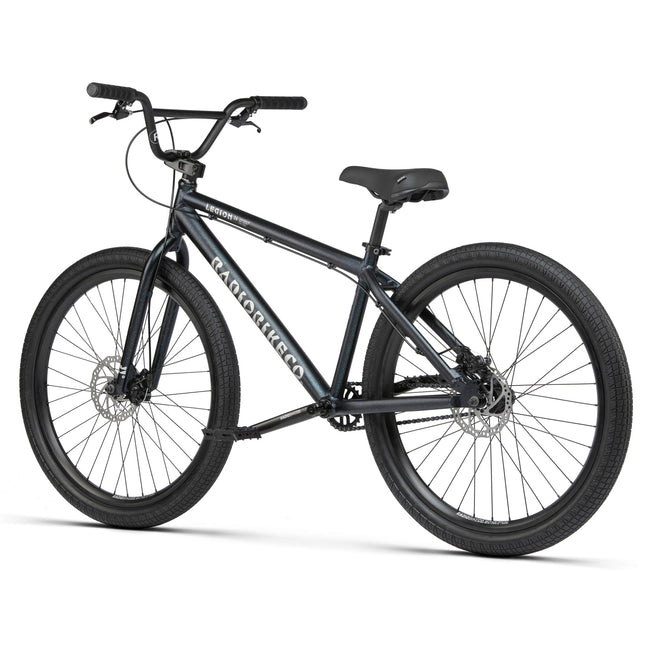

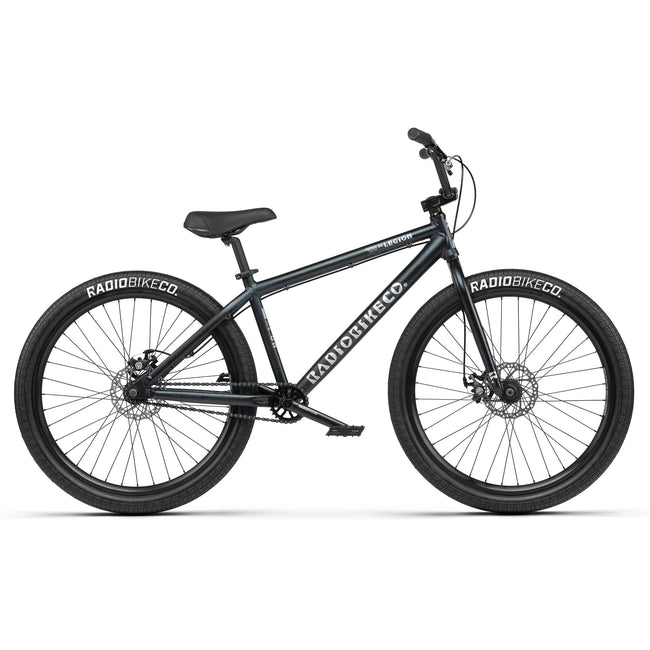

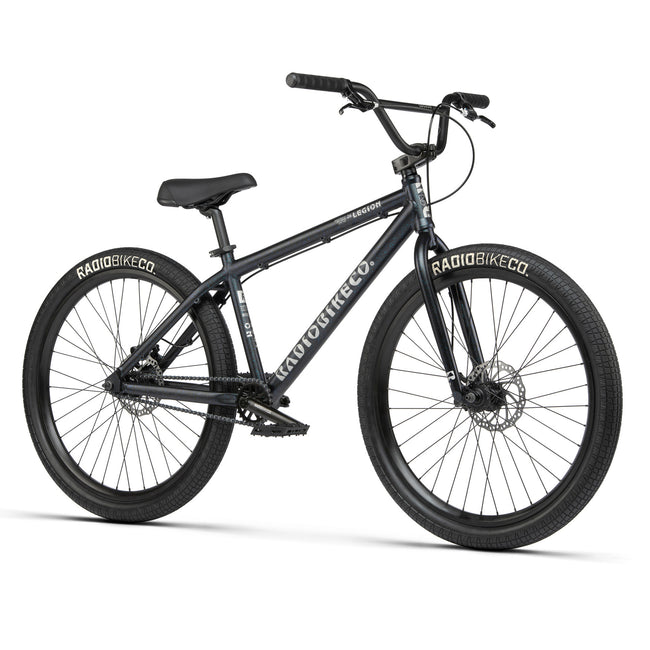

Radio Legion 26" BMX Dirt Jump Bike-Cosmic Splatter

The Radio Legion 26" BMX Dirt Jump Bike-Cosmic Splatter is the ultimate urban wheelie machine. The frame geometry is stable yet responsive and designed to pull wheelies as easy as pumpkin pie. Featuring a Salt headset and stem and Tektro disc brakes on front and rear, this bike will have you riding in style so smooth you might think it's magic. The Legion comes in two wheel sizes. The bike you are looking at right now is the 26" version.

Specifications

• FRAME RADIO "LEGION 26" frame, 6061-T6 alloy
• FORK RADIO "LEGION26" full crmo fork, 30mm offset

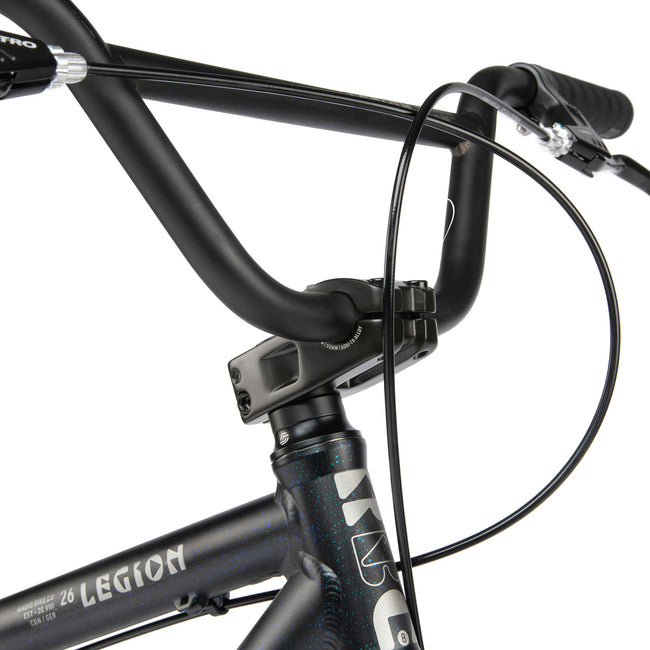

• HANDLEBAR RADIO "LEGION" full 4130 crmo bar
• GRIPS RADIO "FREQUENCY XL" grips, flangeless, 160mm
• STEM SALT "COMP" top load stem, 50mm reach
• HEADSET SALT "PRO" integrated headset, sealed bearing
• BRAKE LEVER TEKTRO "RS-360A", front & rear

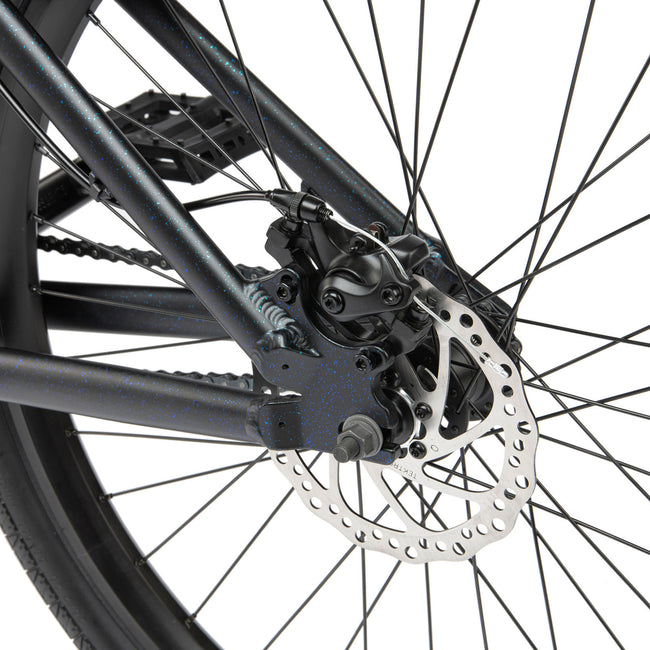

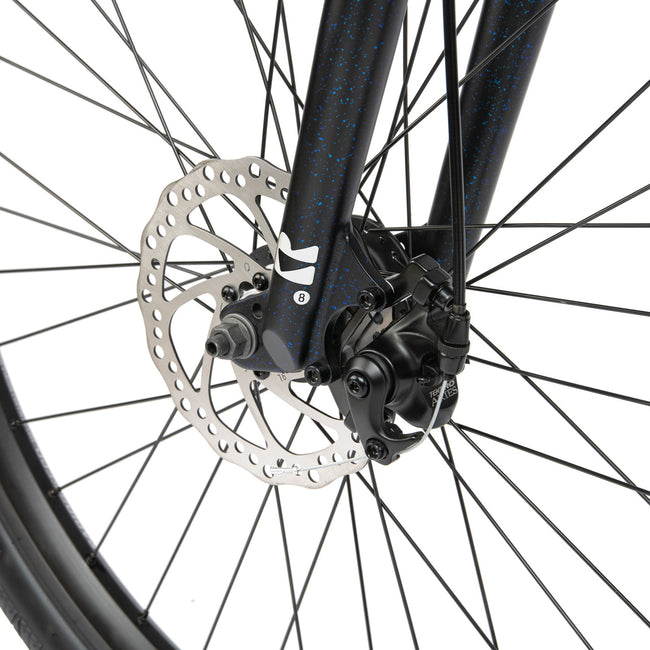

• BRAKE TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front & rear

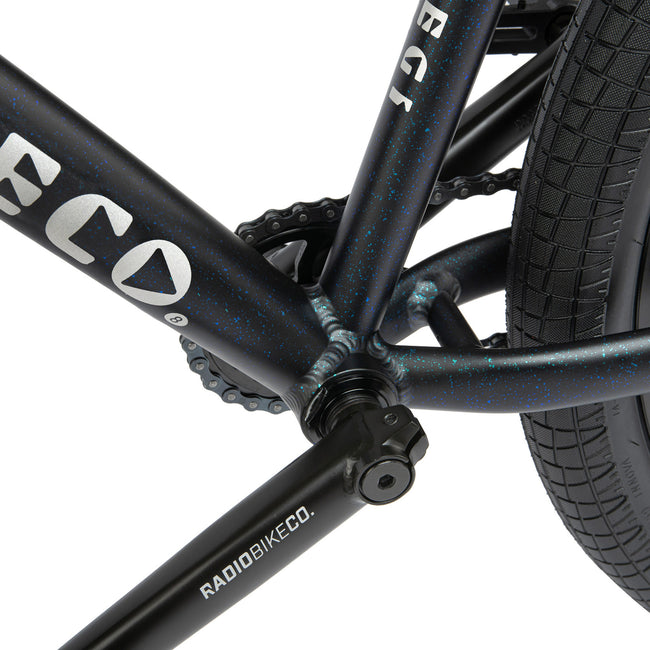

• CRANK RADIO "PRO" tubular 3pc crank crmo, 170mm, 8 spline
• BB RADIO "BSA19" sealed bearing

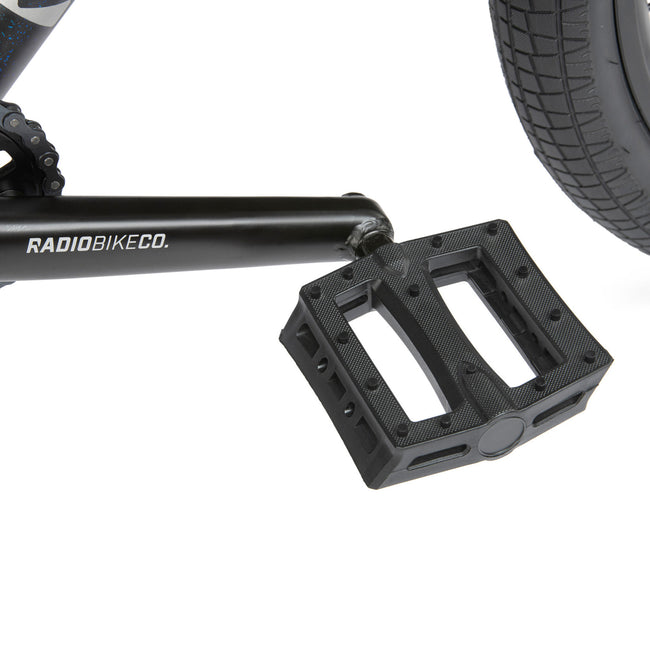

• PEDALS RADIO "PRO" Nylon Fibreglass Pedals
• CHAIN SALT "AM" chain, WZ1 type

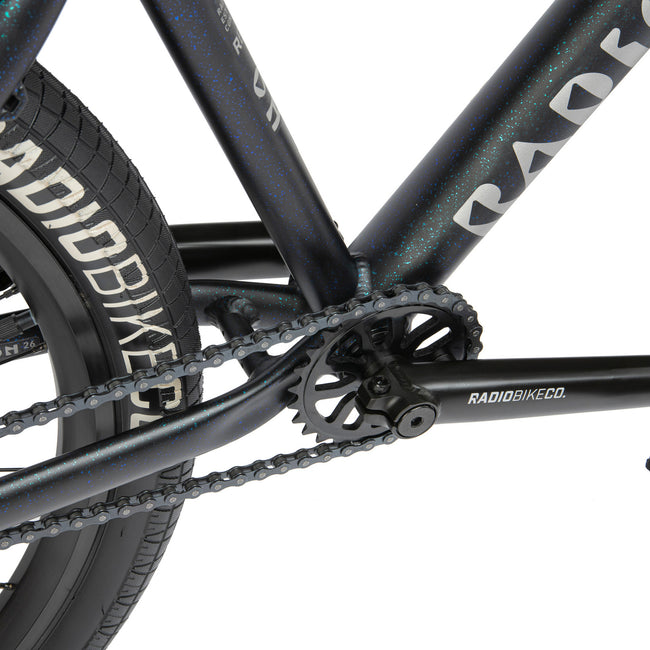

• SPROCKET RADIO "LEGION" alloy 26T sprocket
• DRIVER 12T cassette driver, sealed bearing

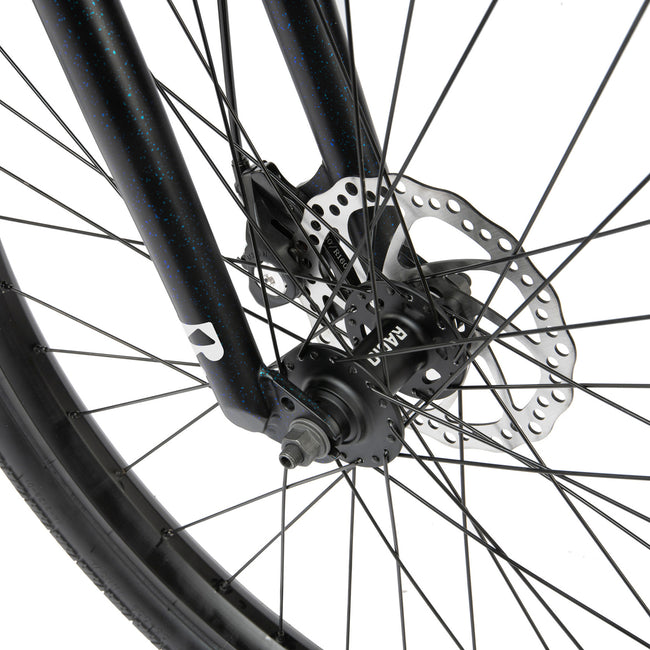

• FRONT HUB RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 36h

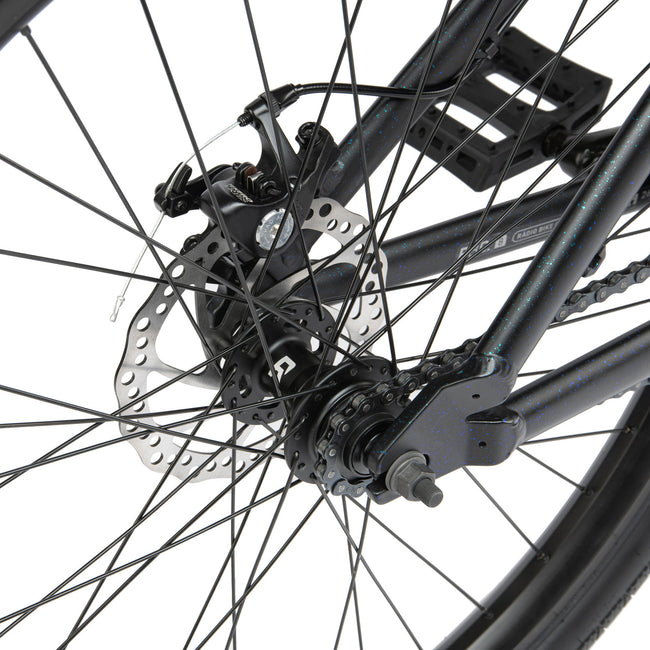

• REAR HUB RADIO "PRO" disc hub, alloy, sealed, 12t, 3/8"s axle, 36h
• FRONT RIM RADIO "DB35" rim, double wall
• REAR RIM RADIO "DB35" rim, double wall

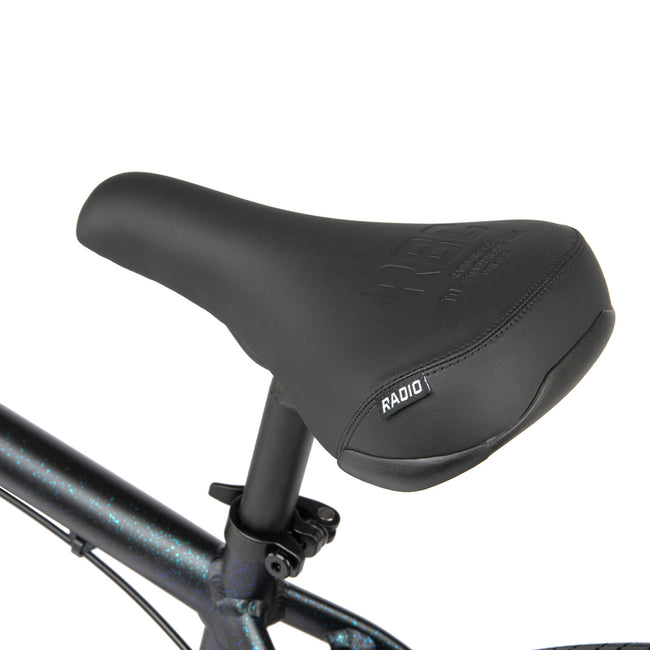

• SEAT RADIO "LEGION" railed seat
• SEAT POST RADIO "SP228" micro-adjust seat post alloy
• SEAT CLAMP RADIO "QUICK RELEASE" alloy seat clamp
• TIRES RADIO "LEGION26" tires, 2.2" front & rear
• WEIGHT 13.99kg / 30.85lbs

Frame Geometry

• TOP TUBE LENGTH 22"
• CHAIN STAY LENGTH 16.7"
• HEAD TUBE ANGLE 71 degrees
• SEAT TUBE ANGLE 71.5 degrees
• BOTTOM BRACKET HEIGHT 33mm drop
• STANDOVER HEIGHT 12.8"

Handelbar Geometry

• RISE 6.1"
• WIDTH 30"
• BACKSWEEP 10 degrees
• UPSWEEP 3 degrees
