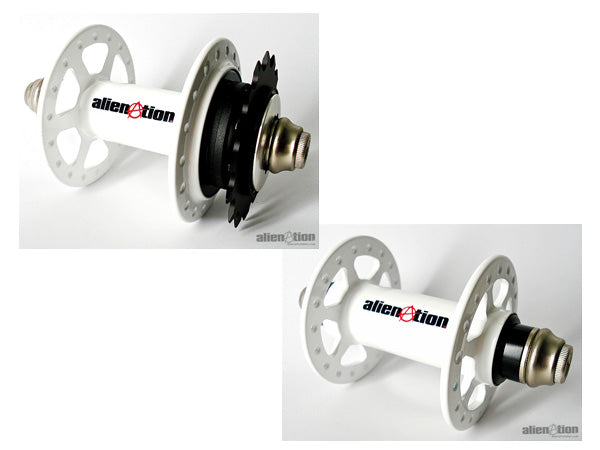

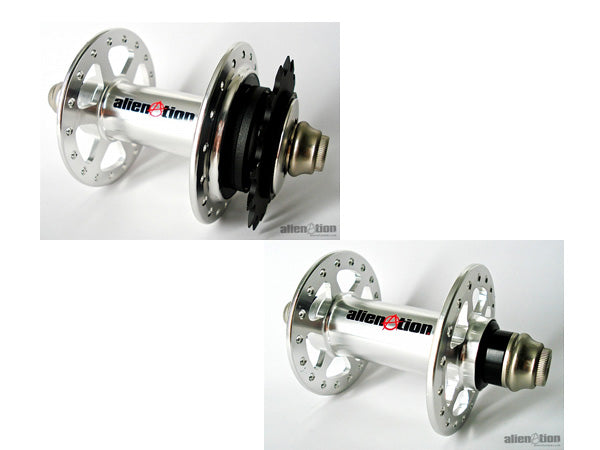

Alienation Royal Cassette Hubs-36H

USE: Race

DRIVER: Cassette, 6 oversized pawls

HUB SHELL: 6061 T6 Aluminum

HOLE COUNT: 36 Hole

AXLE: 17mm hollow with 3/8” hardware

BEARINGS: Sealed stainless

INCLUDES: Front and Rear hubs, 7075 aluminum 16T cog



Flange Diameter: (F) 68mm, (R) 76mm
Pitch Center Diameter: (F) 58mm, (R) 66mm
Drive-Side Center to Flange: (R) 27.6mm
Non-Drive Side Center to Flange: (R) 27.8mm
Center To Flange: (F) 29mm

MANUFACTURERS NOTES: All six oversized pawls engage in unison whenever drive torque is applied. No other multiple pawl system on the market can ensure that all pawls are engaged at the same time. The secondary ratchet system does the coasting and forces engagement of the large pawls only for drive torque transfer. What does this mean? The unique internal system offers 1/3rd less drag with superior roll speed and longer wear life of the pawls. Despite the fact the system engages slightly slower than others on the market, you never lose the forward inertia thus the response is just as quick and instant. In addition the symmetrical hi-flanges are spaced for more balanced spoke tensions. For increased stiffness, using a 17mm hollow axle and all stainless bearings for improved durability & smoothness.

RIDER WEIGHT LIMIT: NONE
