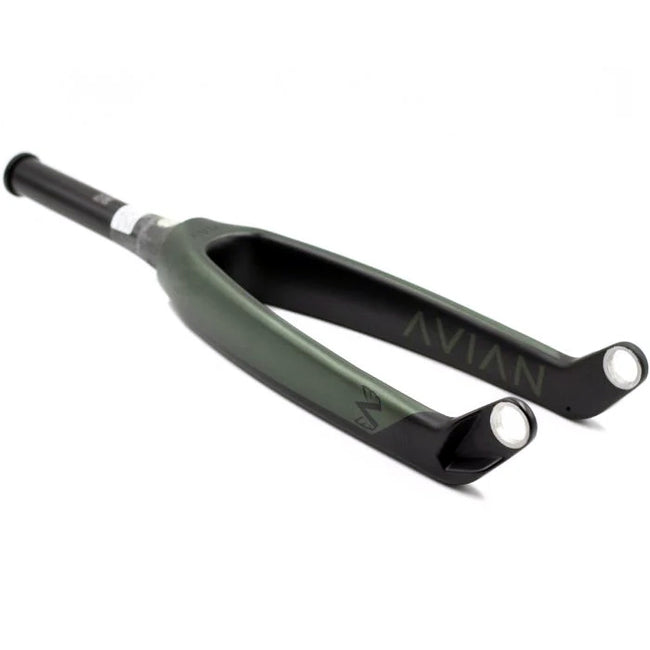

Avian Versus Pro Tapered Carbon BMX Race Fork-24"-1 1/8-1.5"-Matte Green

The Avian Versus Tapered Carbon BMX Fork-24"x1 1/8-1.5"-Matte Green combines lightweight carbon tech with advanced engineering for maximum performance. For added durability without the added weight, the steerer tube is made with 4mm thick 7005 alloy and the tapered legs are built from tough Toray carbon fiber. The Avian Versus features an internal locking system which allows for quick and easy installation and maintenance without the need for special tools. We do recommend the use of a torque wrench for installation to be sure your bolts are not over-tightened.

SPECIFICATIONS

• 4mm thick 7005 steerer tube
• Toray carbon fiber legs
• Internal locking system
• 170mm steerer tube length
• 354mm axle-to-crown (24")
• 32mm drop-out offset
• 10mm & 20mm available (sold separately)
• 21.8oz (with stem-lock & top cap)
• The Versus Tapered Carbon Fork is compatible with BMX racing frames that utilize a tapered 1-1/8" to 1.5" head-tube design.

Important Torque Spec Info:

Please use a torque wrench when installing this fork onto the bike. The fork’s integrated locking system has an alloy bolt/head, so if it’s over-tightened then you will strip it. Tighten between 4-5Nm is fine, but do not exceed 5.5Nm.

IMAGE NOTE: The images shown are for reference only. You will get the item in the size you order.
