Box One 406 Rim-Front-36H-20x1.75"

The Box One 406 Rim-Front-36H-20x1.75" is as low-profile as it gets. All the better to be lightweight and speedy. Featuring double walled aluminum, eyeleted construction. Lacking a sidewall braking surface this rim is designed specifically for the front of the bike, but can be used on the rear if using a disc brake.

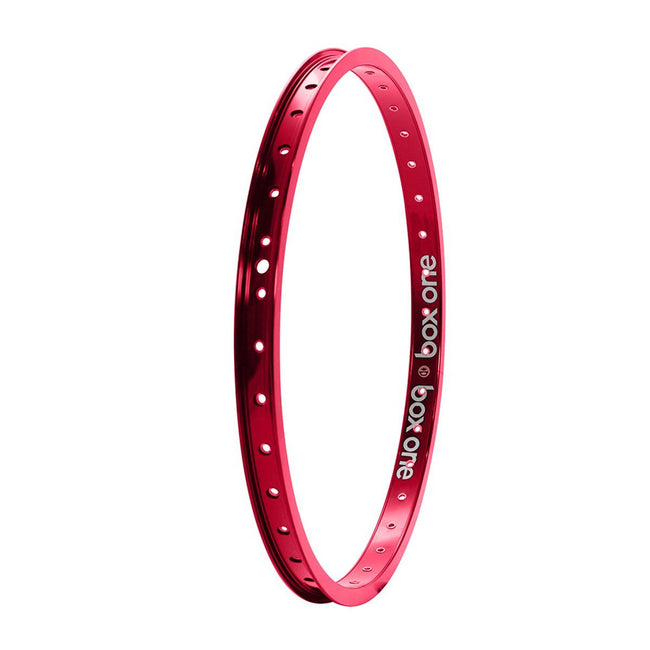

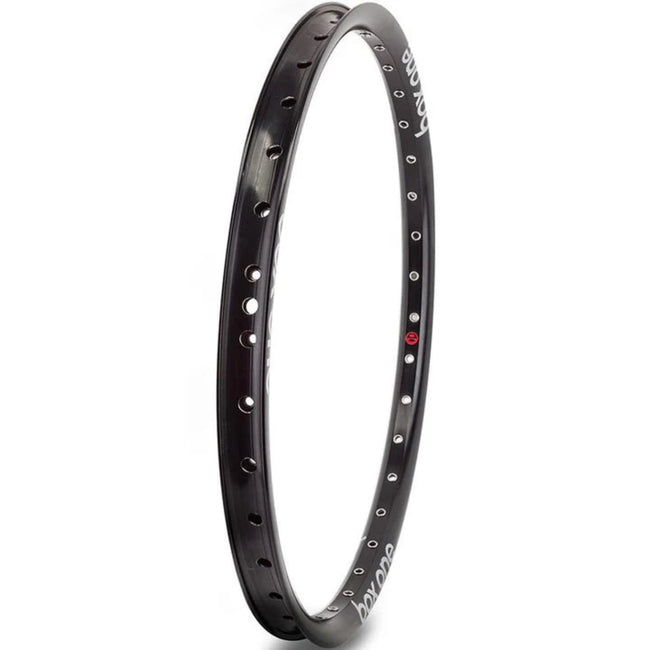

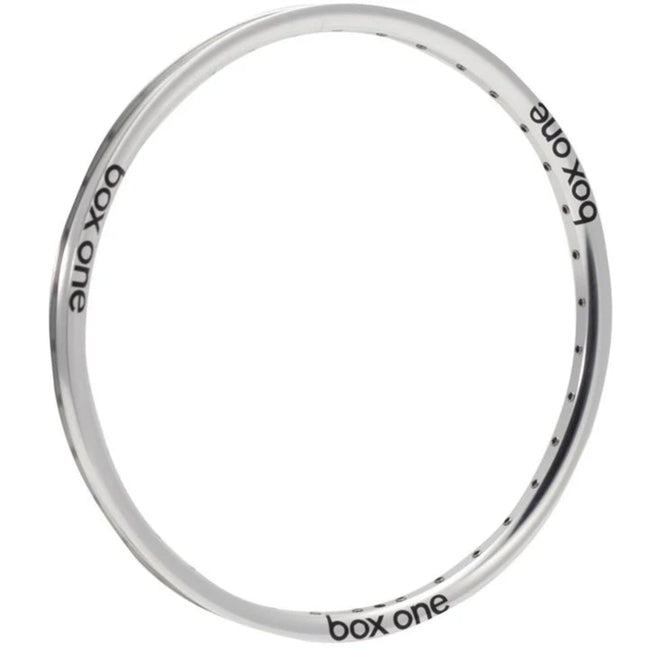

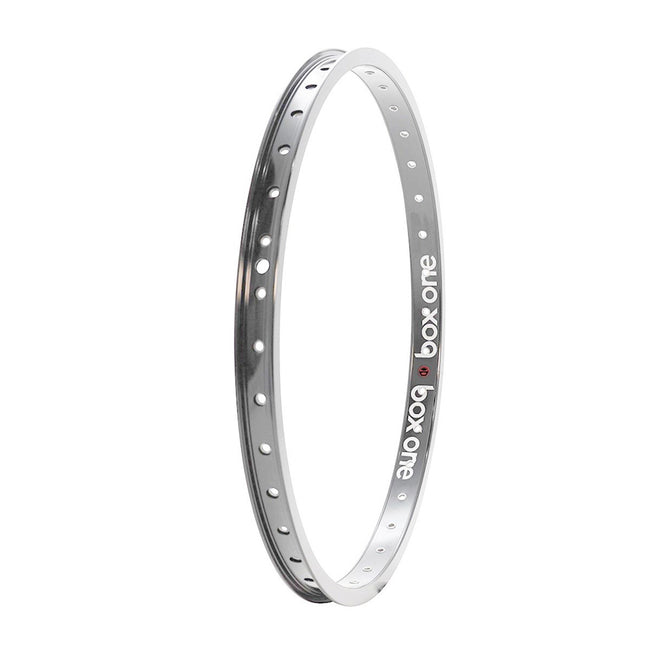

Please note: Box has not supplied photos of the front rim, so the pictures on this page are for the rear rim which has a flat surface for the brake pads. The front specced rim does not have this flat surface.

FEATURES

• Low Profile Design
• Brake and Brake-Less Profiles
• Stainless Steel Eyelets
• Machined Brake Track
• Schader Valve Hole
• Optimized Internal Geometry

COMPATIBILITY

• Box One X2 Pro Carbon 1 1/8" cro-mo steerer 20" X 20mm fork
• Box One Quantum Hubset 36h
• Box Two 20mm Front Hub 36h
• Box Two 20mm Freewheel Hubset 36h
• Box Three Pro 10mm Rear Disc Hub 36h

SPECIFICATIONS

• WEIGHT: 295g
• HOLE DRILLING: 36
• INTERNAL RIM WIDTH: 22.5mm
• EXTERNAL RIM WIDTH: 28mm
• RIM HEIGHT: 18.5mm
• ERD: 391
• MATERIAL: 6061 Aluminum
