Box One 507 Rim-Front-36H-24x1.75"

Save 15%
$50.88 $59.95
  • Black
Secure Checkout

About This Product: Box One 507 Rim-Front-36H-24x1.75"

The Box One 451 Rim-Front-28H-20x1 1/8" is as low-profile as it gets. All the better to be lightweight and speedy. Featuring double walled aluminum, eyeleted construction. Lacking a sidewall braking surface this rim is designed specifically for the front of the bike, but can be used on the rear if using a disc brake.

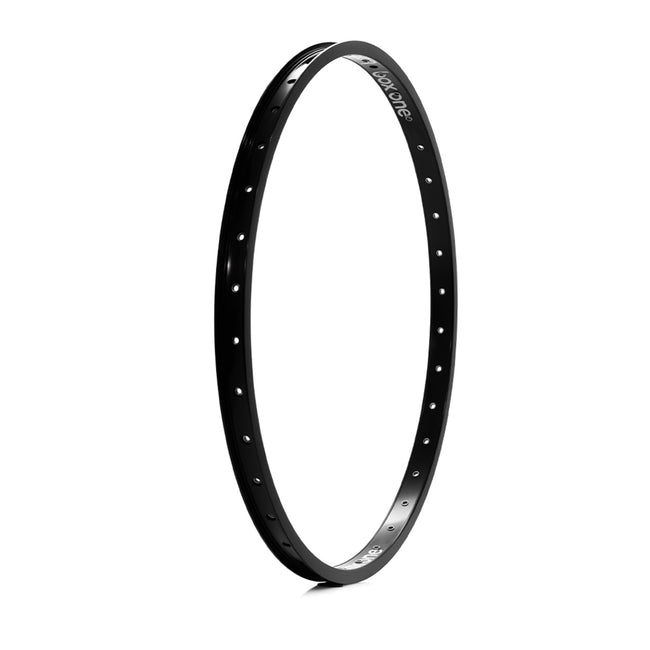

Please note: Box has not supplied photos of the front rim, so the pictures on this page are for the rear rim which has a flat surface for the brake pads. The front specced rim does not have this flat surface.

FEATURES

  • Optimized Internal Geometry
  • Machined Brake Track
  • Stainless Steel Eyelets
  • Brake (Rear) and Brake-Less (Front) Profiles
  • Low Profile Design
  • Schrader Valve Hole

COMPATIBILITY

  • Box One X2 Pro Carbon 1 1/8" cro-mo steerer 24" X 20mm fork
  • Box One X5 Pro Carbon 1.5" to 1 1/8" alloy steerer 24" X 20mm fork
  • Box One XL Pro Lite Carbon 1 1/8" alloy steerer 20” X 10mm fork
  • Box One X Pro Carbon 1-1/8" cro-mo steer 24" X 10mm fork
  • Box One Quantum Hubset 36h Black

SPECIFICATIONS

  • WEIGHT: 400g
  • HOLE DRILLING: 36
  • INTERNAL RIM WIDTH: 22.5mm
  • EXTERNAL RIM WIDTH: 28mm
  • RIM HEIGHT: 18.5mm
  • ERD: 491
  • MATERIAL: 6061 Aluminum
  • BEAD DIAMETER: 507mm
