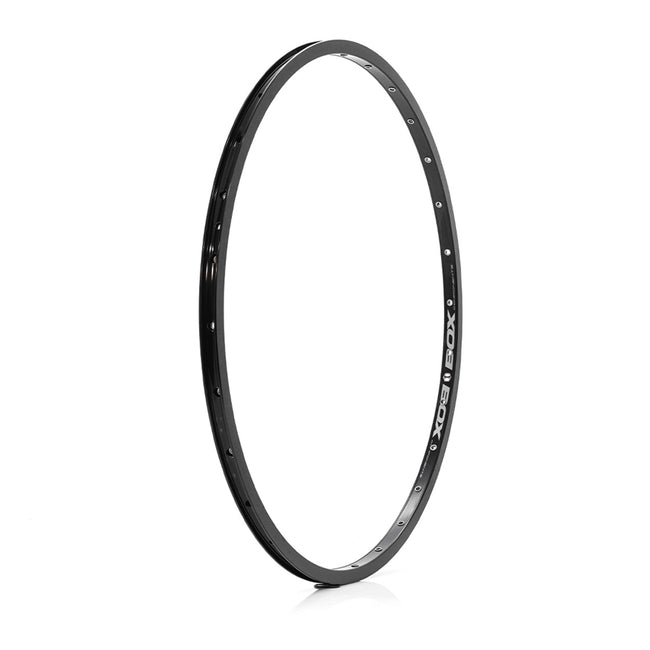

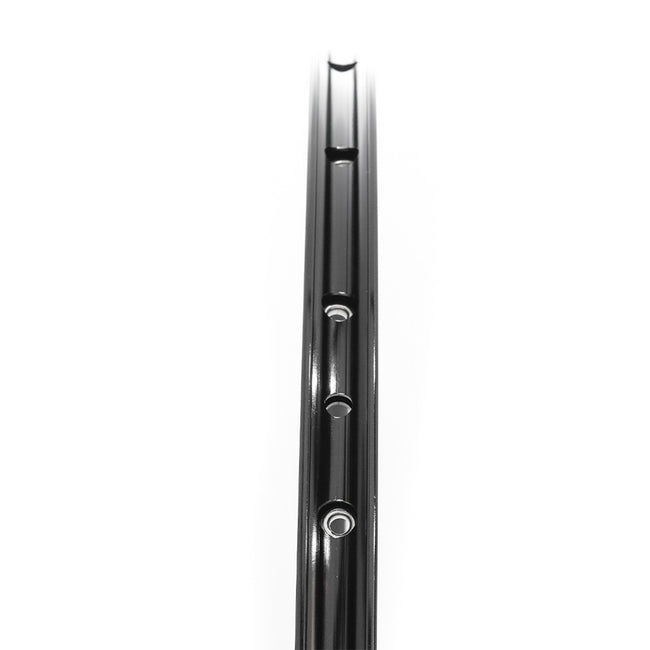

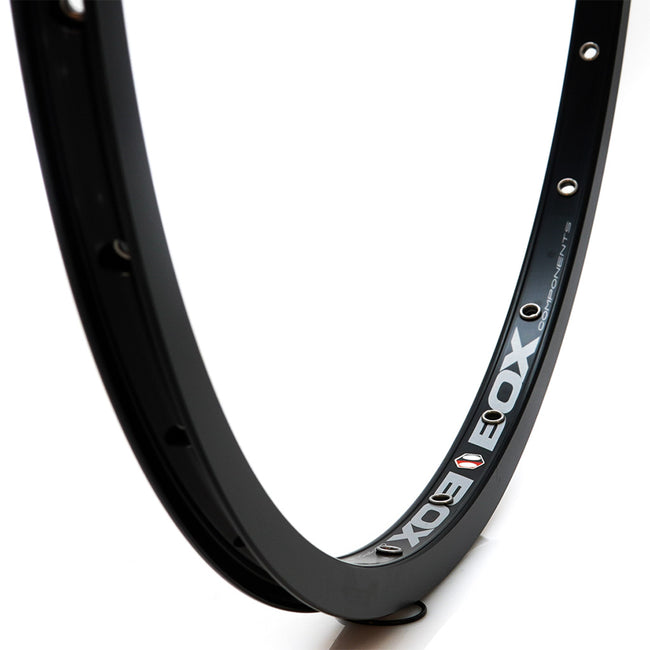

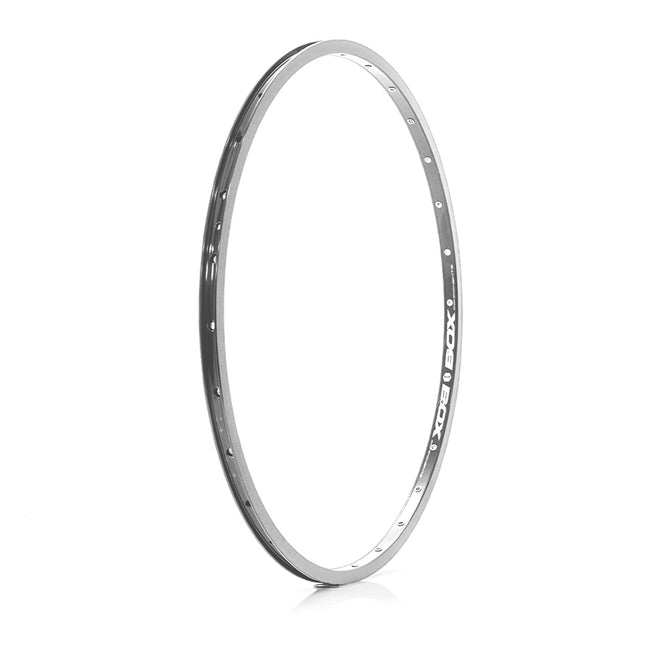

Box One 520 Rim Front-28H-24x1 1/8"

The Box One 520 Rim Front 28H-24x1 1/8" is about good as you can get without forking over all that cash for an all carbon rim. This is a front rim, so there is no track for brake pads, if you want brakes you’ll need to purchase the Box One 520 REAR rim. Construction is a double-walled, eyeletted, and low profile design.

Features:

• Optimized Internal Geometry
• Presta Valve Hole
• Machined Brake Track
• Stainless Steel Eyelets
• Brake (Rear) and Brake-Less (Front) Profiles
• Low Profile Design

Compatibility

• Box One XS Mini Carbon 1" alloy steerer 20" x 10mm fork Black
• Box One Harmonic Expert Hubset 28h Black
• Box One X5 Fork with 1-1/8" Steerer Tube
• Box One Stealth Expert 10mm Front Hub 28h Black
• Box One Stealth Expert 10mm Rear Hub 28h Black

Specifications:

• Weight: 287g
• Hole Drilling: 28
• Internal Rim Width: 12.5mm
• External Rim Width: 17.5mm
• Rim Height: 15mm
• ERD: 512
• Material: 6061 Aluminium
