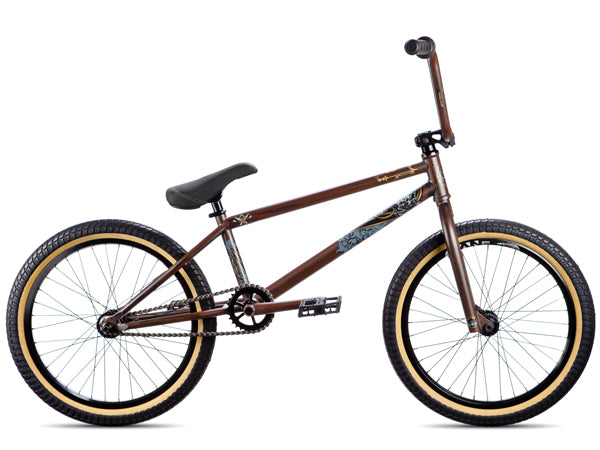

DK X-Model BMX Bike-Matte Woodgrain

The 2013 DK X-Model is top-of-the-line with 100% 4130 CrMo frame featuring CNC machined integrated head tube and chainstay along with removable brake mounts and cable guides.


FRAME SPECS:
Toptube Length: 20.75"
Chainstay Length: 13.42”
Headtube Angle: 75°
Seattube Angle: 72°

RECOMMENDED RIDER HEIGHT:  5' 7" - 6'

FRAME: 100% 4130 Chromoly Frame w/ CNC integrated headset & 5mm dropouts
*Removeable brake mounts and cable guides for gonig brakeless
HEADTUBE: Integrated 1 1/8"
BB SHELL: MID BB shell
BRAKE MOUNTING: U-Brake
SEAT CLAMP: 1 1/8"
FORK: 100% Chromoly fork w/ Internally threaded, 1pc machined steer tube
HANDLEBAR: 8.75" Chromoly bar with 12° up sweep and 4° back sweep
STEM: 3D CNC machined frontload stem
GRIPS: DK Tsuka
HEADSET: Sealed bearing 1 1/8" Integrated
REAR BRAKE: TEKTRO FX340 U brake with soft green pads
BRAKE LEVER: TEKTRO XL-510 lever
CRANKS: 3 pc. tubular Crmo 175mm
BOTTOM BRACKET: Sealed MID with 19mm 48 spline spindle
SPROCKET: 28t Alloy CNC 8mm thick sprocket
PEDALS: DK Nylon/Fiber platform
CHAIN: KMC 710 Half Link
HUBS: DK 36h 3/8" Sealed front female hub & Sealed 14mm rear hub with 9t driver
RIMS: SUN Envy Aero double wall front, SUN Big Baller double wall rear
TIRES: NEW Kenda Ticket Gum-wall tires Front 2.3" Rear 2.25" 75psi
FREEWHEEL: 9T Cassette
SEAT: DK Padded Pivotal
SEAT POST: Pivotal
MISC: N/A

Weight: 24.81 lbs / 11.25 kg

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
