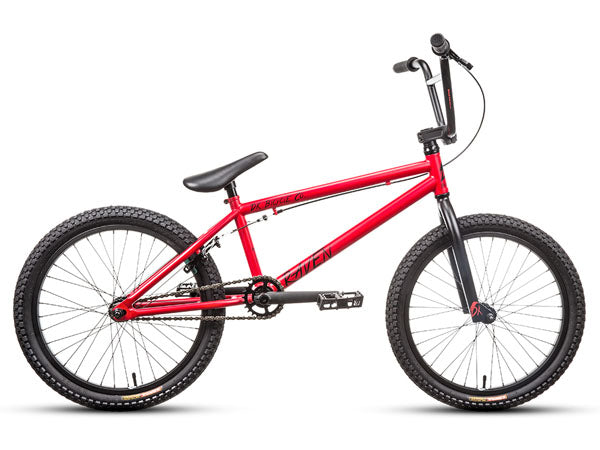

DK Raven BMX Bike-Matte Red

The DK Bicycles 2014 Raven BMX bike is DK's entry level model focused on riders getting into the sport of BMX.  The Raven features chromoly 3-pc cranks and proven freestyle geometry.

FRAME SPECS:
Top tube Length: 20"
Chainstay Length: 13.75”
Headtube Angle: 74.5°
Seattube Angle: 72°
Recommended Rider Height: 5" - 5' 6"

FRAME: Hi-Ten Steel frame featuring welded brake mounts and integrated seatpost clamp
FORK: Chromoly Steer tube, Internally threaded with alloy bolt, tapered legs
BARS: 8” x 28”, 12° back, 2° up 2pc design with welded cross bar
CRANKS: 3pc Tubular 175mm Cro-mo with pinch bolt
STEM: 50mm length, Alloy front clamp
HEADSET: 1-1/8” threadless
GEAR: 25T front, 9T cassette
RIMS: Alloy Singlewall 36H Black
HUBS: Alloy 9T cassette with oversized rear axle, steel 3/8” front
TIRES: Kenda K-RAD 20 x 2.125
BRAKES: Tektro Alloy U Brake with sticky pad, Tektro Alloy lever
GRIPS: NEW DK Proxxy with press in bar ends
PEDALS: DK PC Platform
SEAT: 1pc padded seat/post combo

WEIGHT:    24lbs 13oz

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
