DK Professional V2 BMX Race Frame 20mm-Orange

DK
Sold Out

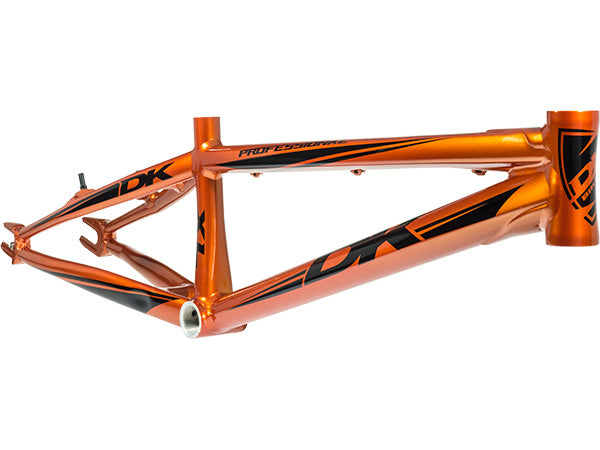

About This Product: DK Professional V2 BMX Race Frame 20mm-Orange

The much anticipated Professional V2 frame from DK features SPF tubing that is 10% lighter than Hydro-formed tubing that most brands use. Now available with two Bottom Bracket options: Euro and PF30

FEATURES:
*SPF formed 7005 series aluminum tubing
*SPF is 10% lighter than Hydro-formed tubing
*Trapezoidal seat mast increases stiffness
*Hourglass and teardrop bridges

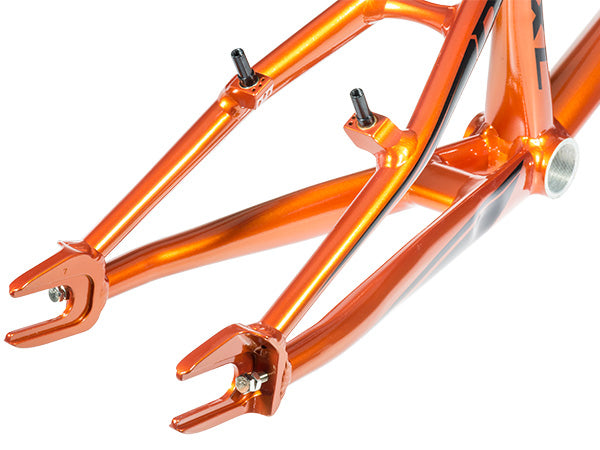

*20mm drop out w/tensioner blocks for both 3/8" and 20mm axles
*FLT welding process

SPECS:
All Sizes: 27.2mm post
All Sizes: 1 1/4" seat clamp (31.8mm)
USE: Race
MATERIAL: 7005 aluminum

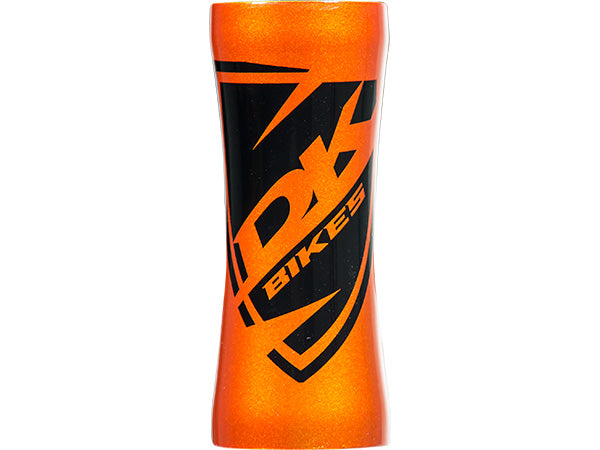

HEADSET STYLE: 45°/45° integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro or PF30*

If you choose the PF30 bottom bracket size, you'll also need to be sure you have PF30 compatible cranks, such as the BOX VECTOR CRANKS.

SIZE
 TT
 CS
 HEADSET HA SA SEAT TUBE
 WEIGHT
EXPERT XL
 20.25" 14.25" 1 1/8" 73° 69° 27.2mm - 1 1/4" clamp TBA
PRO 20.5" 14.83" 1 1/8" 74° 72° 27.2mm - 1 1/4" clamp TBA
PRO XL 21" 14.83" 1 1/8" 74° 72° 27.2mm - 1 1/4" clamp 3lbs 8oz
PRO XXL 21.5" 15" 1 1/8" 74° 72° 27.2mm - 1 1/4" clamp TBA
PRO XXXL  22" 15" 1 1/8" 74° 72°  27.2mm - 1 1/4" clamp  TBA
PRO 24 21.75" 15.25" 1 1/8" 73° 72° 27.2mm - 1 1/4" clamp TBA

DK BMX Race Bike Size Charts

Size Rider's Height Age
Size: Micro Rider's Height: 3'6" - 4'2" Age: 4 - 5
Size: Mini Rider's Height: 4' - 4'7" Age: 5 - 7
Size: Junior Rider's Height: 4'5" - 4'11" Age: 7 - 9
Size: Expert Rider's Height: 4'8" - 5'5" Age: 9 - 11
Size: Expert XL Rider's Height: 5'3" - 5'7" Age: 10 - 13
Size: Pro Rider's Height: 5'6" - 6' Age: 13+
Size: Pro XL Rider's Height: 5'9" - 6" Age: 13+
Size: Pro XXL Rider's Height: 5'11" and up Age: 13+
Size: Cruiser Rider's Height: 5'9" and up Age: 13+

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
