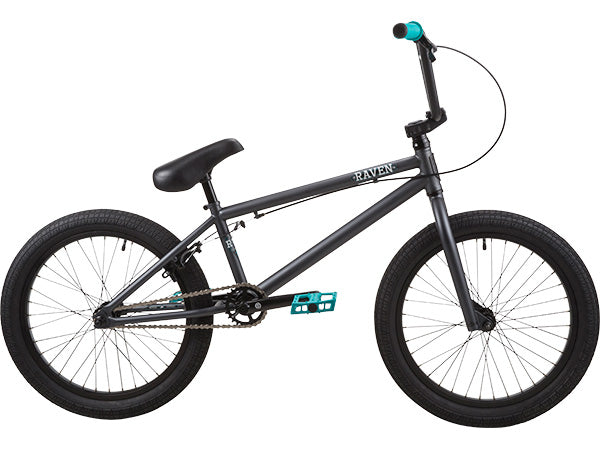

DK Raven BMX Bike-20"-Matte Charcoal

Sold Out

About This Product: DK Raven BMX Bike-20"-Matte Charcoal

PRODUCT DETAILS

NEW for 2015, the Raven now has large 2.3" tires.

FRAME SPECS:
TOP TUBE LENGTH 20
CHAINSTAY LENTH 13.75
SEAT TUBE ANGLE 72°
HEAD TUBE ANGLE 74.5°

RECOMMENDED RIDER HEIGHT: 5' - 5' 6"

  • DK Pro designed frame geometry with 20" Top Tube and Machined BB
  • 1 1/8° Fork w/ Internally threaded chromoly steer tube, alloy bolt and tapered legs
  • 8° Handlebars, 12° back and 2° up
  • WISE 3pc crank with tubular chromoly arms, 8 spline spindle, and American BB
  • 25t WISE Sprocket
  • DK 36h hubs with oversized rear axle and 9t cassette
  • DK Proxxy Grip and DK PC Pedals
  • Innova Street 20" x 2.3" Tires
  • 1 PC Padded "MID" Seat/Post Combo
  • 20" Top Tube - 13.75" Chainstay
  • 74.5° Head Tube - 72° Seat Tube
  • 24lbs 13oz

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode 031370
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.
