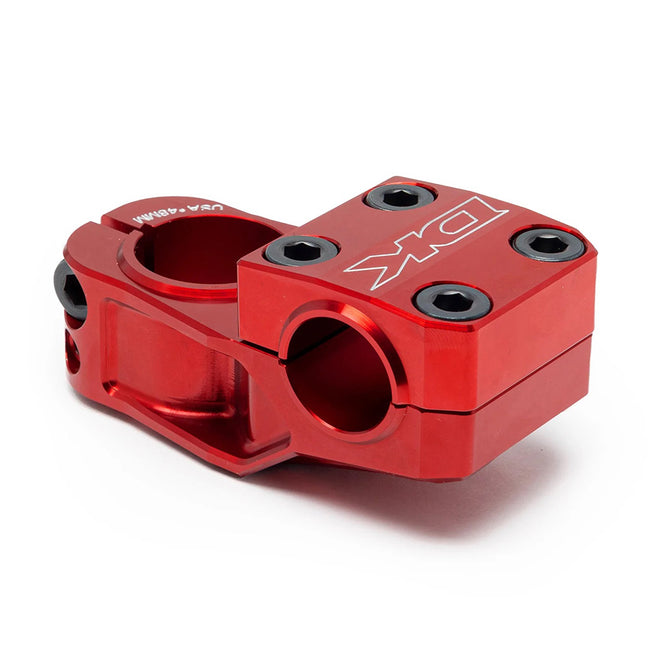

DK Phase Top Load BMX Stem-1 1/8"-Red

The DK Phase Top Load BMX Stem-1 1/8”-Red at J&R Bicycles is built for lightweight strength with advanced design elements and high-tech materials. Made from aerospace-grade 6061-T6 aluminum alloy to deliver max strength without much weight, the DK Phase also features hollow recesses to get rid of unnecessary bulk. Super tough thanks to the double truss construction. offset pinch slot and flared bosses, the 48mm weighs just 10.3oz and the 53mm is 10.9oz. Made in the USA.

SPECIFICATIONS

• REACH: 48mm or 53mm
• RISE: 32mm (1.25")
• FORK BORE: 1-1/8 " (28.6mm)
• BAR BORE: 7/8 " (22.2mm)
• CLAMP BOLTS: USA made socket head cap M8 x 1.25mm x 20mm (x4)
• PINCH BOLTS: USA made socket head cap M8 x 1.25mm x 20mm (x2)
• WEIGHT:
  10.3 oz (292 g) (48mm)
  10.9 oz (309 g) (53mm)

• MATERIAL: USA made Aerospace grade 6061-T6 Aluminum
