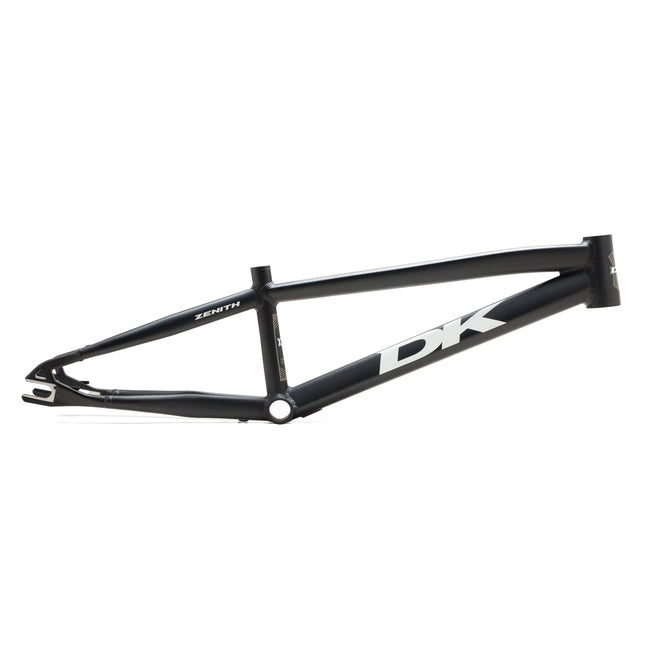

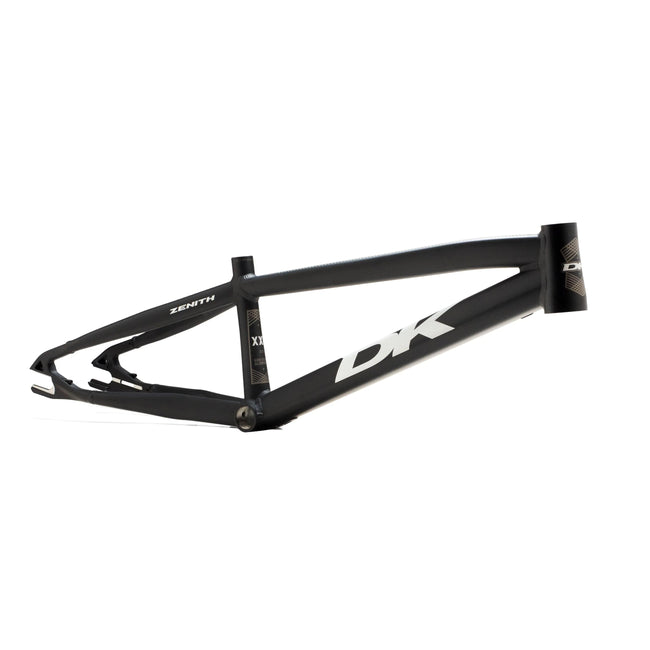

About This Product: DK Zenith Disc BMX Race Frame-Black

Experience BMX racing at its peak with the DK Zenith Disc BMX Race Frame. Crafted from lightweight hydroformed 6000 series aluminum tubing, this frame combines precision engineering with stunning aesthetics. With its tapered head tube, wide stance rear stay design, and internal brake cable routing, the Zenith offers exceptional stiffness, agility, and style. Prepare to dominate the BMX track with well-crafted flair.

Features

  • Built with lightweight hydroformed 6000 series aluminum tubing
  • Horizontal sliding axle / brake system provides 30mm of adjustment

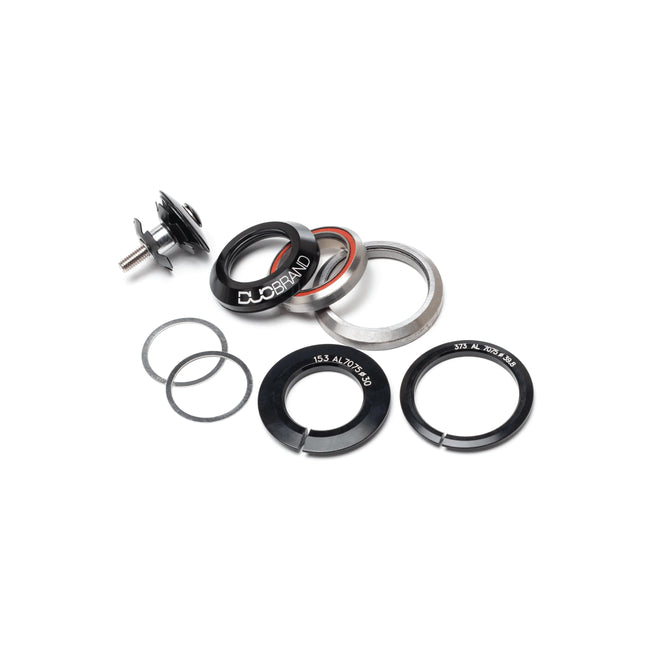

  • Features a tapered 1-1/8”-1.5” head tube (headset included with an extra lower race to work with standard 1-1/8” forks)
  • Trapezoidal seat mast for increased stiffness at bottom bracket
  • Wide stance rear stay design adds stiffness
  • Threaded Euro bottom bracket shell
  • Internal brake cable routing

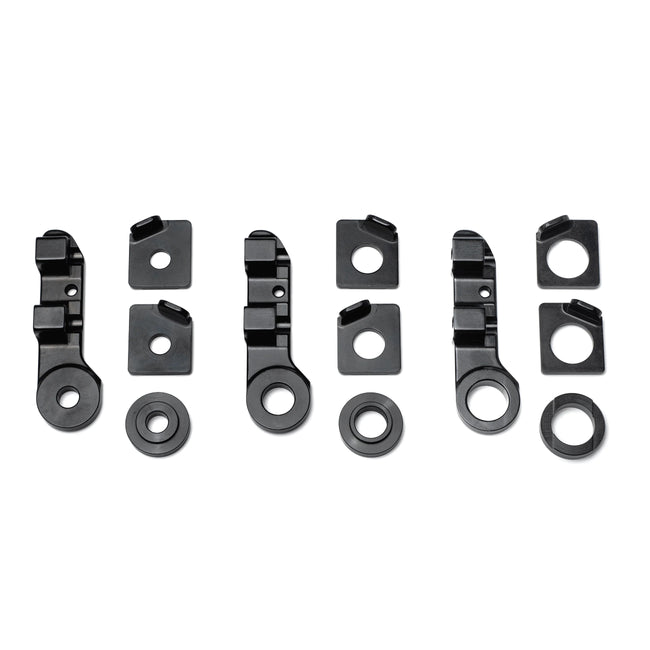

  • 20mm / 15mm / 10mm dropouts (all axle hardware included) with integrated chain tensioners
  • Seat post diameter: 27.2mm

Geometry

DK Zenith Disc BMX Race Frame Geometry
  PRO XL XX XXX XXXX CRUISER
Top Tube Length Pro: 20.5” XL: 21” XX: 21.5” XXX: 22” XXXX: 22.5” CRUISER: 21.75”
Chain Stay Length Pro: 14.83” XL: 14.83” XX: 15” XXX: 15” XXXX: 15” CRUISER: 15.25”
Head Tube Angle Pro: 74º XL: 74º XX:74º XXX: 74º XXXX: 74º CRUISER: 73º
Seat Tube Angle Pro: 72º XL: 72º XX: 72º XXX: 72º XXXX: 72º CRUISER: 72º
BB Drop Pro: -35mm XL: -35mm XX: -35mm XXX: -35mm XXXX:-35mm CRUISER: -10mm
Seat Tube Length Pro: 7.4” XL: 7.4” XX: 7.4” XXX: 7.4” XXXX: 7.4” CRUISER: 8.25”
Headset Type Pro: Tapered 1.5” XL: Tapered 1.5” XX: Tapered 1.5” XXX: Tapered 1.5” XXXX: Tapered 1.5” CRUISER: Tapered 1.5”
Rear Axle Size Pro: 10mm, 15mm, or 20mm XL: 10mm, 15mm, or 20mm XX: 10mm, 15mm, or 20mm XXX: 10mm, 15mm, or 20mm XXXX: 10mm, 15mm, or 20mm CRUISER: 10mm, 15mm, or 20mm
Weight Pro:3.81 lbs XL: 3.84 lbs XX: 3.9 lbs XXX: 3.92 lbs XXXX: 3.97 lbs CRUISER: 3.95 lbs

DK BMX Race Bike Size Charts

Size Rider's Height Age
Size: Micro Rider's Height: 3'6" - 4'2" Age: 4 - 5
Size: Mini Rider's Height: 4' - 4'7" Age: 5 - 7
Size: Junior Rider's Height: 4'5" - 4'11" Age: 7 - 9
Size: Expert Rider's Height: 4'8" - 5'5" Age: 9 - 11
Size: Expert XL Rider's Height: 5'3" - 5'7" Age: 10 - 13
Size: Pro Rider's Height: 5'6" - 6' Age: 13+
Size: Pro XL Rider's Height: 5'9" - 6" Age: 13+
Size: Pro XXL Rider's Height: 5'11" and up Age: 13+
Size: Cruiser Rider's Height: 5'9" and up Age: 13+

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
