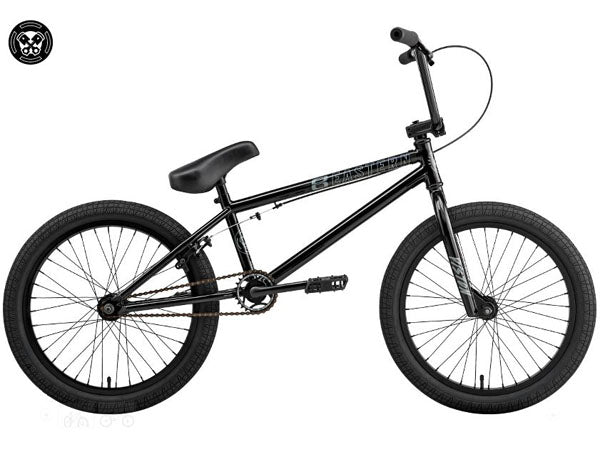

Eastern Piston BMX Bike-Gloss Black

The 2014 Eastern Piston BMX bike is designed for young riders with a 19.75" top tube and features a fully sealed rear cassette hub with 9T driver.

FRAME SPECS:
Top tube Length: 19.75"
Chainstay Length: 13.5” to 13.75”
Headtube Angle: 74.5°
Seattube Angle: 71°

Recommended Rider Height: 4' 6" - 5" 2"

Frame Material: 1020 Hi-Ten steel
Fork: Piston, 1020 Hi-Ten steel
Handle Bar:Hi-Ten, 8”, 28.5”, Upsweep 1°, Backsweep 12°
Headset: 1-1/8” Aheadset
Chainwheel: Eastern Phorcys 25T steel
Crank: Forged and heat-treated 1pc chromoly cranks
Bottom Bracket: American loose ball bearing
Stem: Forged alloy frontload
Grip: Krayton rubber
Front Hub: 36 hole, with 3/8” chromoly axle, loose ball bearing
Rear Hub: Fully sealed 36 hole cassette hub, 9T chromoly driver, 14mm chromoly axle
Front Rim: Alloy 36 hole
Rear Rim: Alloy 36 hole
Spokes: 14G stainless  w/ brass nipples
Front Tire: Multi-Surface , 20” x 2.25”
Rear Tire: Multi-Surface , 20” x 2.25”
Cable: Straight cable
Rear Brake: Forged alloy U-brake
Front Brake: N/A
Brake Lever(s): Forged alloy
Freewheel: Sealed bearing 9t 1pc driver
Chain: KMC
saddle: EASTERN seat/post combo, durable cover
Seat Post: Alloy post included with seat
Seat Clamp: Eastern forged alloy clamp
Pedals: Nylon Pedals
Rotor: N/A

WEIGHT: 26.7lbs/12.11kg

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
