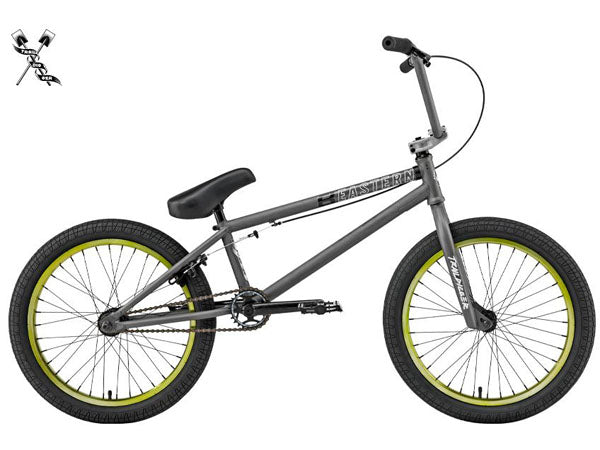

Eastern Traildigger BMX Bike-Matte Phosphate

The 2014 Eastern Traildigger BMX bike features 4130 chromoly downtube, fully sealed 9t cassette hub, sealed front hub, double wall front and rear rim, Eastern Trottle cranks with sealed MID bottom bracket and much more.

FRAME SPECS:
Top tube Length: 20.75"
Chainstay Length: 13.5 to 13.75"
Headtube Angle: 74.5°
Seattube Angle: 71°

Recommended Rider Height: 5' 8" - 6'

Frame: Traildigger frame w/ holes for replaceable gyro tabs, 4130 chromoly Downtube
Fork: Traildigger w/ tapered legs. 100% Full 4130 chromoly
Handle Bar: Hi-Ten, Rise 8.75”, Width 29”, Upsweep 1°, Backsweep 12°
Headset: Sealed bearing 45/45 integrated
Chainwheel: Eastern Phorcys 25T steel
Crank: Eastern Throttle Cranks. Tubular Chromoly heat-treated 3pc Cranks w/ 8 spline spindle
Bottom Bracket: Sealed bearing mid
Stem: Forged alloy topload
Grip: Eastern Riblet
Front Hub: Sealed Bearing, 36 hole alloy shell, 3/8” chromoly axle
Rear Hub: Fully sealed 36 hole cassette, 1pc 9T chromoly driver, 14mm chromoly axle
Front Rim: Double wall alloy, 36 hole
Rear Rim: Double wall alloy, 36 hole
Spokes: 14G stainless  w/ brass nipples
Front Tire: Multi-Surface , 20” x 2.30”
Rear Tire: Multi-Surface , 20” x 2.30”
Cable: Straight cable
Rear Brake: Forged alloy U-brake
Front Brake: N/A
Brake Lever(s): Forged w/ hinged clamp
Freewheel: Sealed bearing 9t 1pc driver
Chain: KMC  Z510 heavy duty
Saddle: EASTERN seat/post combo, durable nylon cover
Seat Post: Alloy post included with seat
Seat Clamp: Integrated
Pedals: Eastern Throttle flat pedals
Rotor: N/A
Extras: Velcro cable strap  &  2 black steel pegs (w/ 10mm hole, w/ 14mm hole)

WEIGHT: 25.75lbs/11.68kg

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
