Eastern Javelin Bike-Gloss White

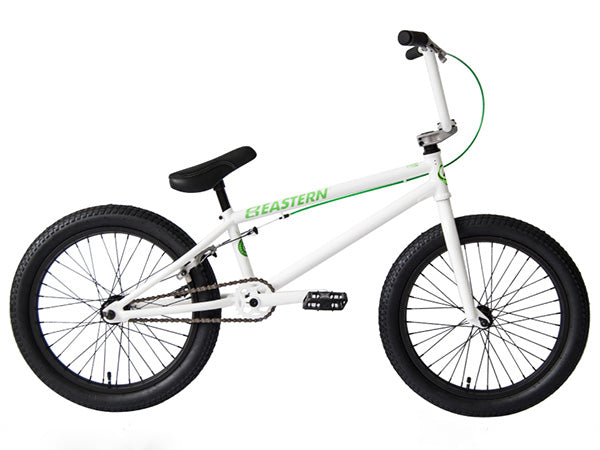

Eastern Javelin Bike-Gloss White

Name: Eastern Javelin Bike-Gloss White
Brand: Eastern
Price: 339.95 USD
Availability: Discontinued

Eastern

Sold Out

About This Product: Eastern Javelin Bike-Gloss White

PRODUCT DETAILS

FRAME

Hi Tensile Steel Javelin 20″

Top Tube Size: 20.5″
BB: AM
Headtube: Aheadset
Chainstay Length: 13.38″
Clamp: Integrated with Frame

BARS

Hi-Ten
8.25″
Upsweep/Backsweep 12⁰/1⁰

FORK

Javelin 20″,
Hi-Tensile Steel with Chromoly Steerer Tube
Fork Rake: 28mm

HEADSET
Aheadset

STEM
Forged Alloy Top Load Stem

GRIP
Eastern Riblet Grips

CRANK
3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm Arm Length

BOTTOM BRACKET
American Ball Bearing

CHAINWHEEL
Eastern Phorcys, Cold Hard Steel, 25T

CHAIN
KMC Z510 1/2 x 1/8

PEDAL
Eastern Atom Plastic Pedal with 9/16″ Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE
U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER
Forged Alloy Lever

BRAKE CABLE [S]
LINEAR

SADDLE
Medium Width Seat/ Post Combo

POST
Comes with seat

FRONT HUB
Ball Bearing, Steel Shell, Drilled for 36 Spokes, 3/8″ Axle

REAR HUB
Eastern 2016 Hub, 5 Sealed Bearings, Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL
9 Tooth Driver with Hub

FRONT RIM
Alloy, Single Wall, Drilled for 36 Spokes, For 20″ Tires

REAR RIM
Alloy, Single Wall, Drilled for 36 Spokes, For 20″ Tires

SPOKES
14 Gauge with Brass Nipples

FRONT TIRE
20 x 2.40

REAR TIRE
20 x 2.40

PEG
2 black steel pegs (1pc w/ 10mm hole, 1pc w/ 14mm hole)

Additional Information

Barcode	136038
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.
