Eclat Tibia Crankset

Eclat
Sold Out

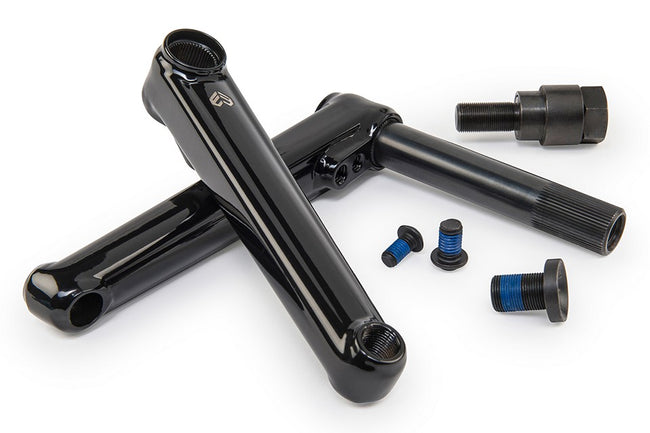

About This Product: Eclat Tibia Crankset

The Eclat Tibia crankset offers the function and simplicity of a two-piece design, but stays true to the proven splined design of three-piece cranks. The Tibia cranks feature a slim arm design, constructed of 4130 crmo arms and spindle. The Tibia cranks go together smoothly, stay secure, and won’t let you down.

If you need the right pair of cranks and fewer headaches, you might want to consider choosing the Tibia.

Specs:

  • Square shape heat-treated 4130 crmo arms & crmo axle
  • 165mm, 170mm or 175mm
  • 22mm crmo ultra hollow
  • Strong, lightweight crank / RSD & LSD compatible / 2 sprocket bolt holes on each side
  • Comes supplied with an assembly tool and 6mm Allen key
Weight:
  • 934g (32.95oz : 2.06lbs)


Crank Size Chart

Crank Size Chart
Inseam length Crank Length
Crank Size: Micro, Mini. Junior
Inseam length: 15 - 16 inch Crank length: 130 mm
Inseam length: 16 - 17.5 inch Crank length: 135 mm
Inseam length: 17.5 - 19 inch Crank length: 140 mm
Inseam length: 19 - 20 inch Crank length: 145 mm
Inseam length: 20 - 22 inch Crank length: 150 mm
Crank Size: Junior, Expert, Expert XL
Inseam length: 20 - 22 inch Crank length: 150 mm
Inseam length: 22 - 23 inch Crank length: 155 mm
Inseam length: 23 - 25 inch Crank length: 160 mm
Inseam length: 25 - 26 inch Crank length: 165 mm
Crank Size: Pro and Larger
Inseam length: 26 - 27 inch Crank length: 170 mm
Inseam length: 27 - 28 inch Crank length: 175 mm
Inseam length: 28 - 30 inch Crank length: 177.5 mm
Inseam length: 30 - 31 inch Crank length: 180 mm
Inseam length: 31 - 32 inch Crank length: 185 mm
Inseam length: 33+ inch Crank length: 190 mm

How To Measure Your Inseam

  1. Start with a pair of pants you already have that fit you well and lay them flat on the floor.
  2. Carefully measure the length from the crotch seam to the bottom of the leg.
  3. THIS NUMBER IS YOUR INSEAM. Use this number to help you choose your cranks.
