Elevn 120MM Disc Brake Kit

The Elevn Disc Brake Kit allows for disc brakes to be easily installed on Chase Act 1.0 and RSP 4.0 frames. Requires a rear hub with ISO 6 screw fastener. Both disc kits are sold without a hydraulic braking system; please consider one of these options:

• Shimano XTR Disc Brake
• Shimano XT Disc Brake

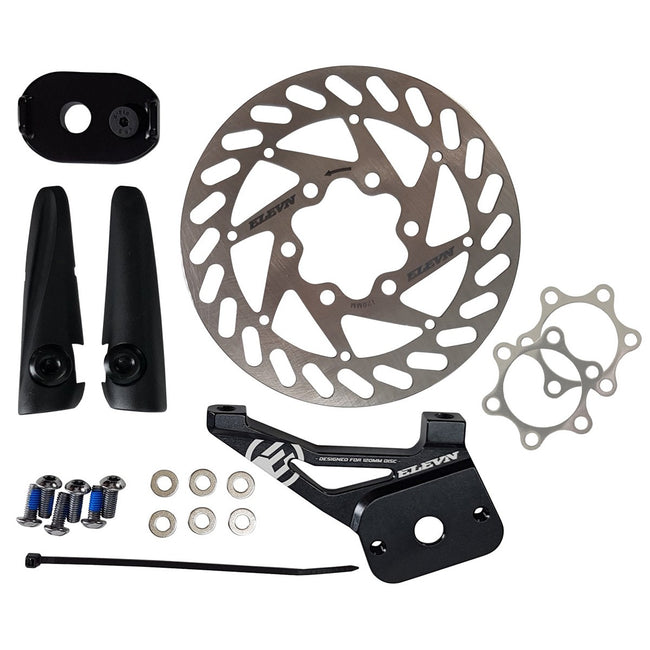

SPECS FOR CHASE ACT 1.0 SPECIFIC DISC BRAKE KIT

• 120mm Disc Brake Rotor fastening system ISO 6 screws with air vents
• Full CNC Alloy Adaptor for 120mm Disc Brake Mount only
• Full CNC Chain Tensioner to work with adaptor (opposite side to the disc)
• Pin bolt security, 6 Disc screws and washers included
• 2 covers brake cleats to replace the standard brake mounts for a clean, aero design look.
• 2 Disc Rotor spacers (only needed depending on the type of rear disc ready hub used)
• For 10mm (3/8″) rear axle set up

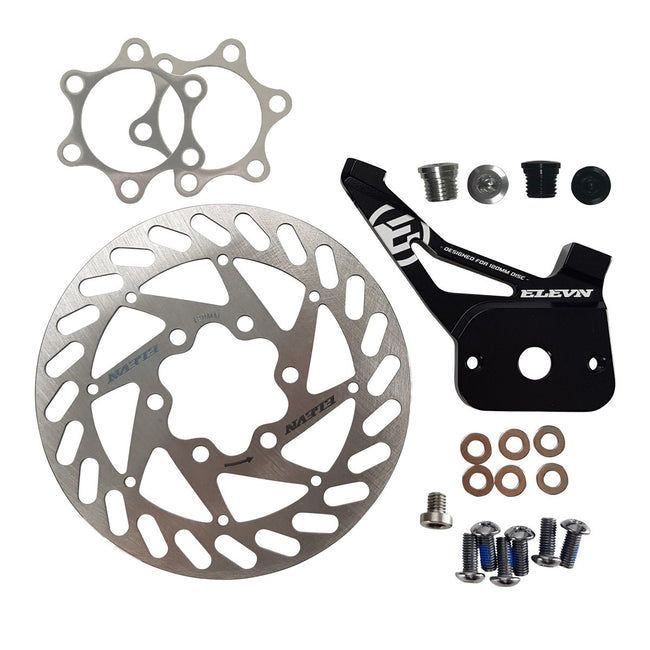

SPECS FOR CHASE RSP 4.0 SPECIFIC DISC BRAKE KIT

• Full CNC Alloy Adaptor for the 120mm Disc Brake Mount only
• 10mm rear axle set up, pin bolt security
• 120mm Disc Brake Rotor fastening system ISO 6 screws with air vents
• 6 Disc screws and washers included
• 2 disc spacers 0.5mm thickness each
• 2 sets of Covers Brake pivot bolts to replace the standard brake mounts for a clean, aero design look. (Black and Polished pair)
• 2 Disc Rotor spacers (only needed depending on the type of rear disc ready hub used)
