Elevn 22.2mm Overbite Top Load Stem

The Elevn 22.2mm Overbite Stem at J&R Bicycles was designed with detailed engineering to reduce weight while providing as much clamping strength as possible. Rounded edges and beveled sides don't just look slick but also reduce drag and the top cap mounting system saves even more weight. Made from CNC'd 6061-TG alloy, the 22.2 Overbite includes 6mm Allen bolts and features laser-etched graphics and convenient handlebar adjustment gauges. The 1" option uses a single bolt steer tube clamp system to make it even lighter for superior stream-lined performance to benefit smaller riders.

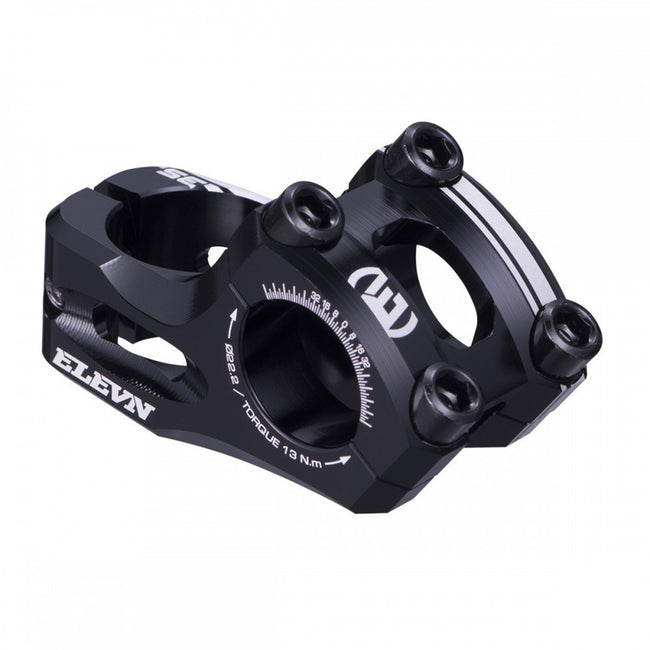

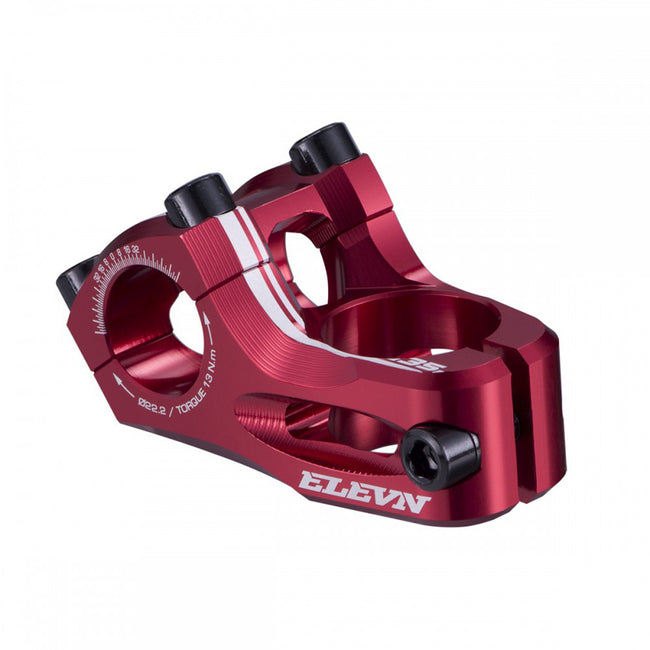

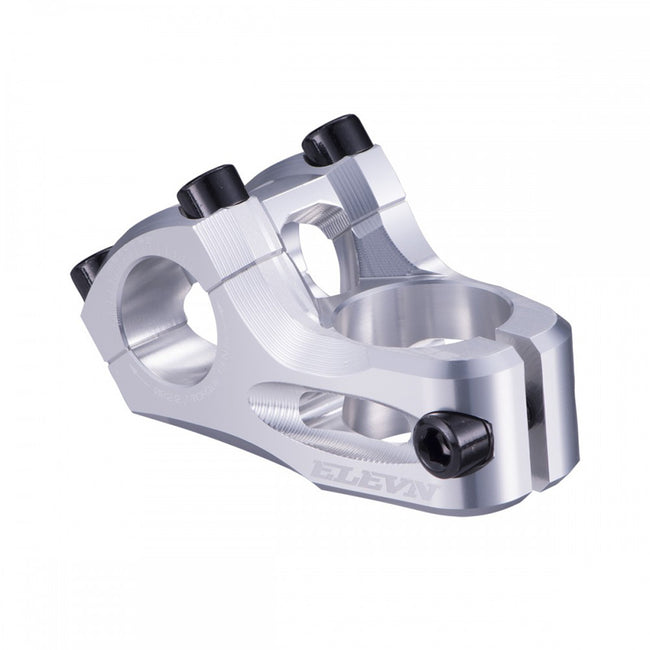

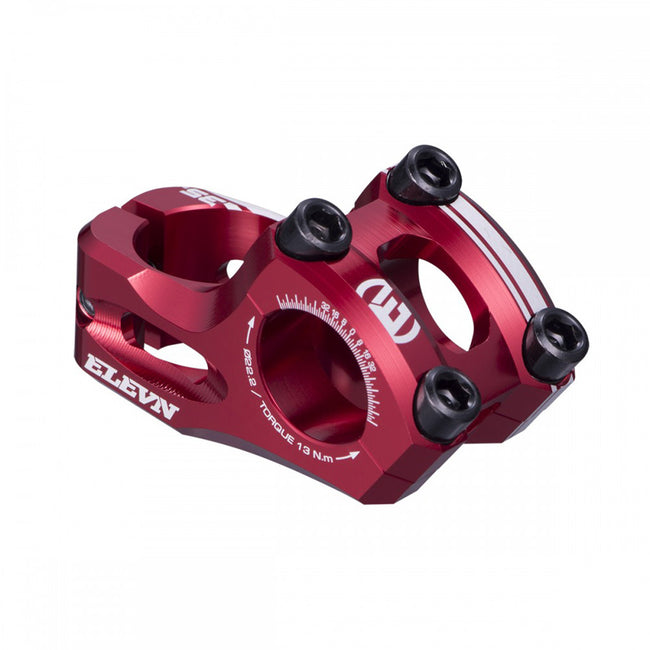

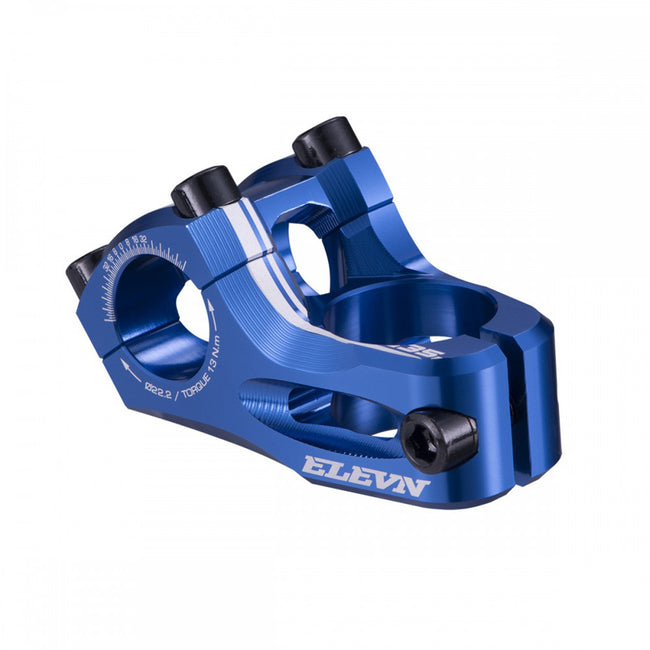

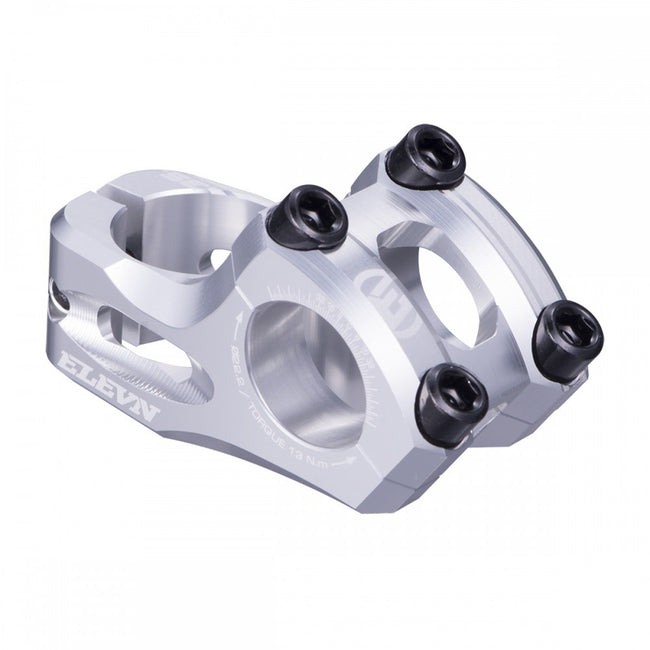

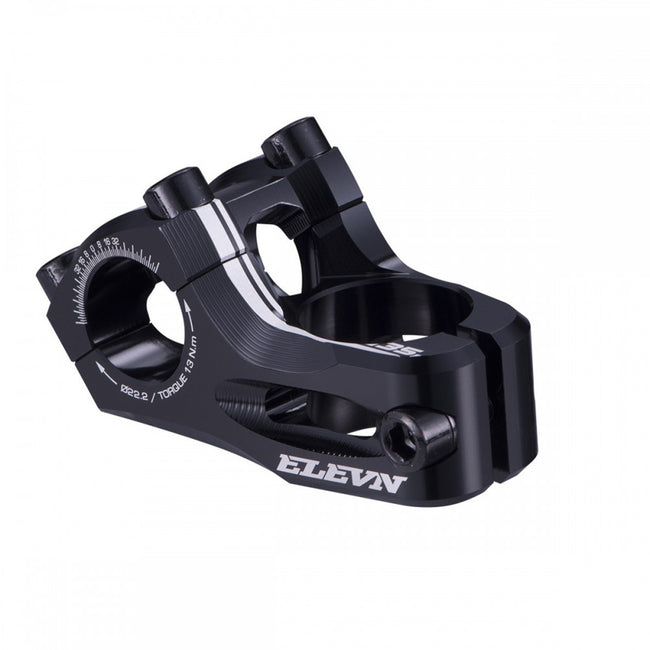

1"

FEATURES

• Material: 6061 T-6 Alloy
• Steer tube Clamp: 1 bolt
• Steer tube size: 1”
• Bar Clamp size: 22.2mm
• Rise: 22.6mm
• Stack Height: 24mm
• Lengths: 35mm, 40mm, 45mm
• Bolts size: M6 x 1.0 x 20mm, 10.9 Grade

WEIGHTS

• 35mm: 110 g / 3.88 oz
• 40mm: 120 g / 4.23 oz
• 45mm: 130 g / 4.58 oz

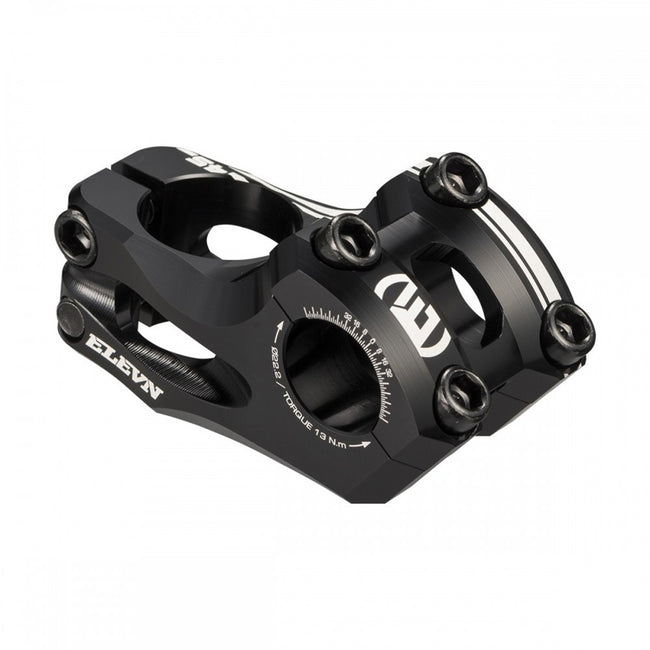

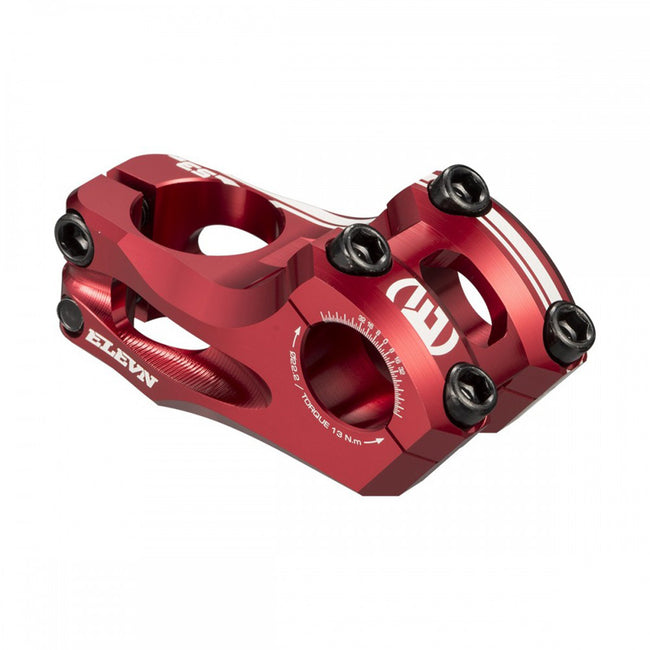

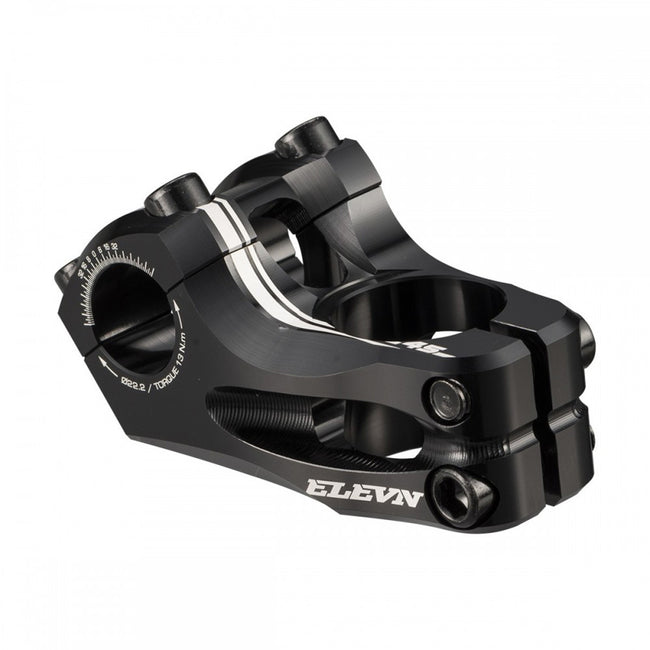

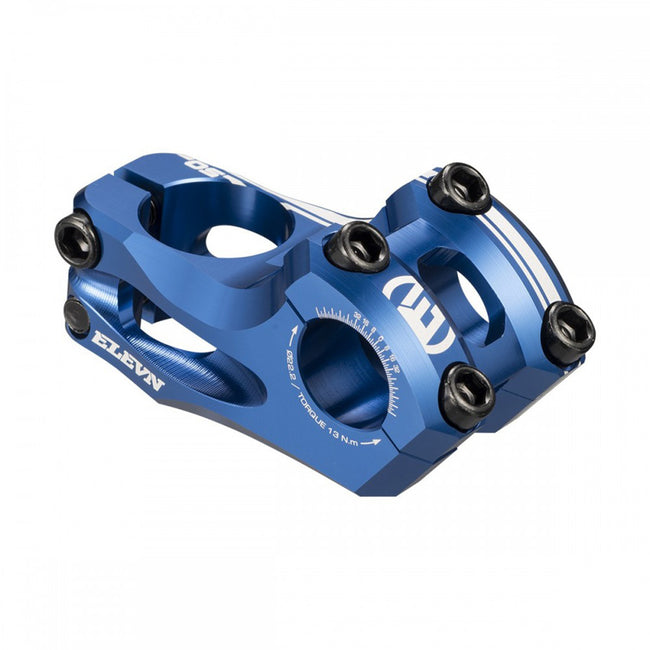

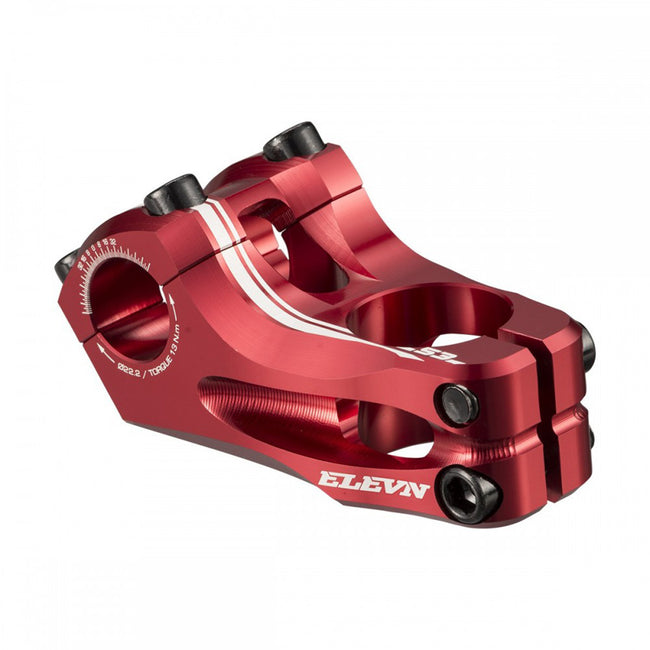

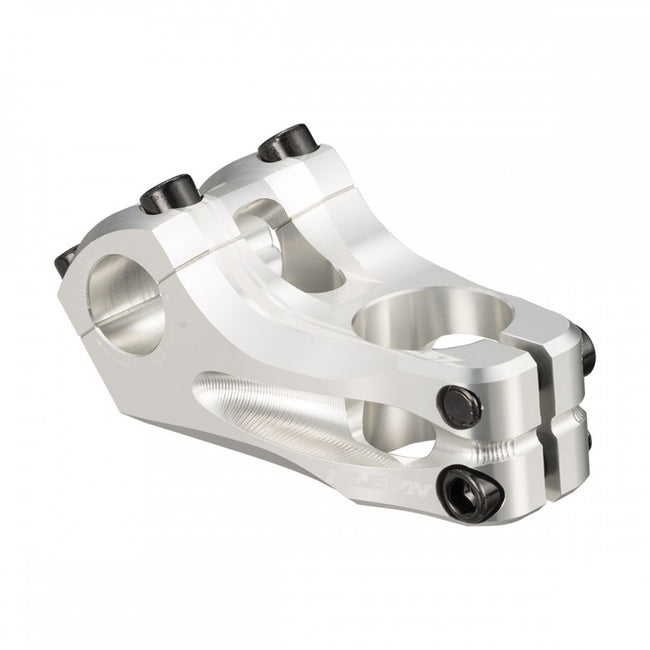

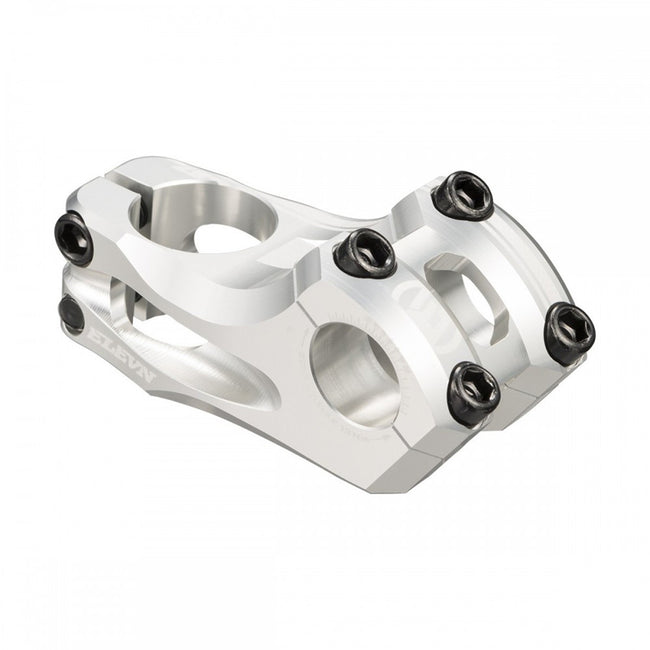

1 1/8”

FEATURES

• Material: 6061 T-6 Alloy
• Steer tube Clamp: 2 bolts
• Steer tube size: 1-1/8”
• Bar Clamp size: 22.2mm
• Rise: 29.93mm
• Stack Height: 31mm
• Lengths: 45mm, 50mm, 53mm, 57mm, 60mm
• Bolts size: M8 x 1.25 x 25mm, 12.9 Grade

WEIGHTS

• 45mm: 226 g / 7.97 oz
• 50mm: 235 g / 8.3 oz
• 53mm: 241 g / 8.5 oz
• 57mm: 250 g / 8.1 oz
• 60mm: 258 g / 9.1 oz
