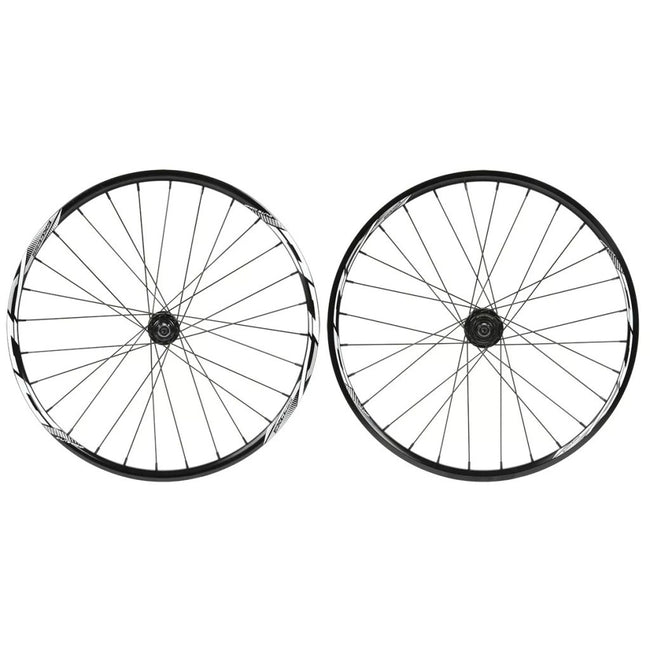

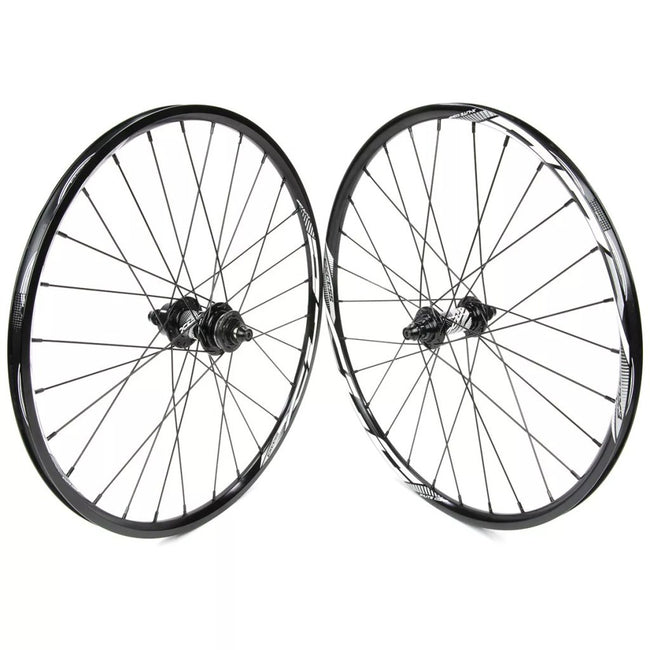

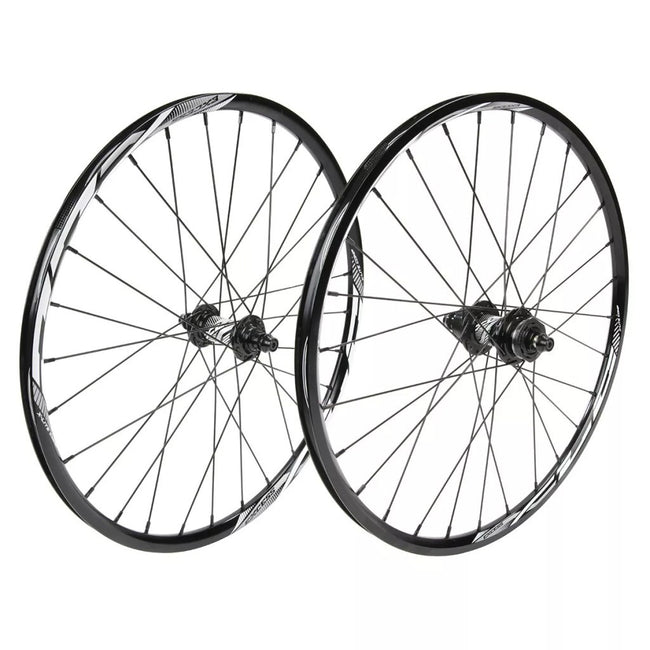

Excess XLS-1 Alloy Mini/Expert BMX Race Wheelset-28H-20x1 1/8"

The Excess XLS-1 Mini/Expert Alloy Wheelset-28H-20x1 1/8"-Black/White is from an all new, track-proven line up. Featuring proprietary, double-walled, 6061-T6 alloy rims. The front is mated to an Excess XLS-1 sealed front hub with alloy axle and end caps. While the rear has a sealed cassette hub with a precision single engagement, 3 pawl system and a 24 ratchet ring. These stiffer and stronger rims make for a great upgrade for your bike with a nice return on investment realized in pure performance.

XLS-1 Alloy Rim Features:

• Double walled 6061-T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
• Low Profile Aero
• Brakeless Surface Profiles Front rim
• Machined Brake Track on Brake surface on rear rim
• Single process hi-polished, black anodized finish
• Angled Nipples Holes
• Laced with 14G Stainless spokes & Brass nipples
• Included rim tapes

XLS-1 Mini/Expert Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• M6 bolts with alloy CNC bolts caps

XLS-1 Mini/Expert Rear Hub Features:

• 4 sealed bearing
• Alloy axle
• M6 bolts with alloy CNC bolts caps
• Cromo driver (3 pawls single engage into a 24 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Chromoly driver (3 pawls single engage into a 24 ratchets outer ring), with Chromoly 1x 1mm, 1x 0.5mm driver spacer and lock ring.
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter.
• Rear Cog and Center Lock Disc adapter not included

XLS-1 Alloy Rim Specifications:

• SIZE : 20″ X 1-1/8″-1-3/8″
• ETRTO: 451mm
• ERD: 438mm
• Height: 16mm
• Internal Rim Width: 13.6mm (front) 14.6mm (rear)
• External Rim Width: 19.5mm
• Valve : F/V Presta

Spokes Length:

• Front: 215mm
• Rear: 212/214mm

Wheel Weights:

• Front: 596g
• Rear: 850g

Rims Drilling:

• 28 holes

Cassette Body Specifications:

• Chromoly driver : 3 pawls single engage into a 24 ratchets outer ring

Center Lock Disc Adapter Specifications:

• Center lock disc adapter and disc sold separately
