Excess XLS-1 Alloy Expert Plus/Pro Lite BMX Race Wheelset-36H-20x1.50" - 1
Excess XLS-1 Alloy Expert Plus/Pro Lite BMX Race Wheelset-36H-20x1.50" - 2
Excess XLS-1 Alloy Expert Plus/Pro Lite BMX Race Wheelset-36H-20x1.50" - 3

Excess XLS-1 Alloy Expert Plus/Pro Lite BMX Race Wheelset-36H-20x1.50"

Save 17%
$288.88 $349.95
  • Black/White
Secure Checkout

About This Product: Excess XLS-1 Alloy Expert Plus/Pro Lite BMX Race Wheelset-36H-20x1.50"

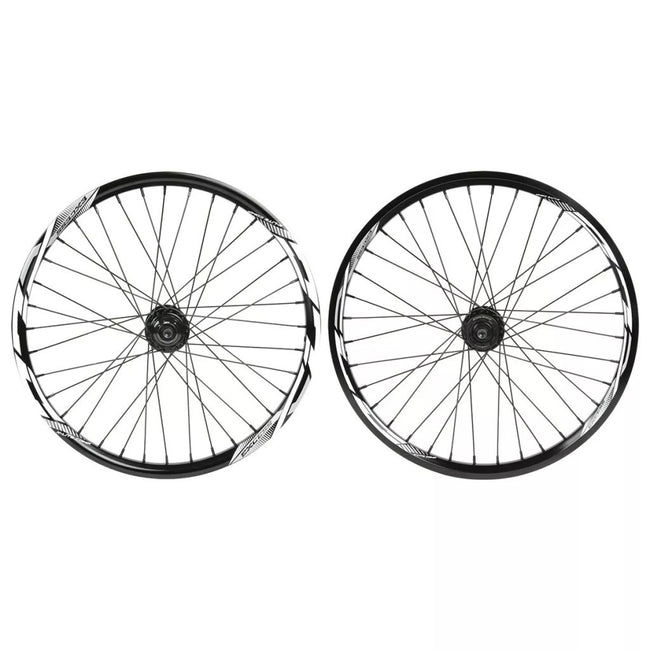

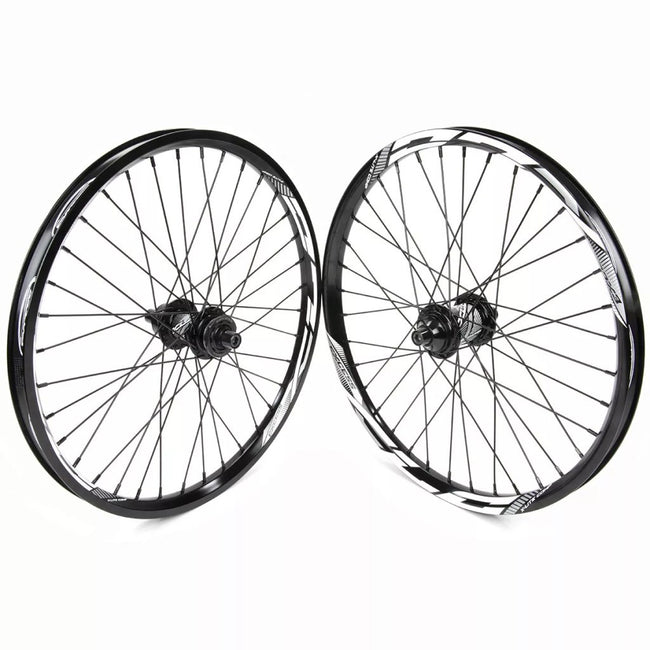

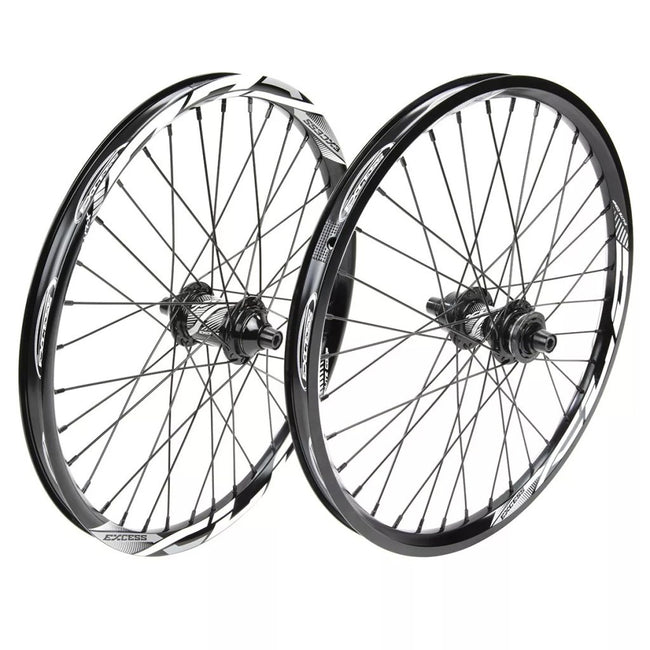

Excess XLS-1 Pro Lite/Pro Alloy Wheelset-36H-20x1.5"-Black/White is from an all new, track-proven line up. Featuring proprietary, double-walled, 6061-T6 alloy rims. The front is mated to an Excess XLS-1 sealed front hub with alloy axle and end caps. While the rear has a sealed cassette hub with a precision single engagement, 3 pawl system and a 24 ratchet ring. These stiffer and stronger rims make for a great upgrade for your bike with a nice return on investment realized in pure performance.
Please note: this wheelset is sold without a cog and without a center lock disc adapter.

RIMS FEATURES:

  • Double walled 6061-T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
  • Low Profile Aero
  • Brakeless Surface Profiles Front rim
  • Machined Brake Track on Brake surface on rear rim
  • Single process hi-polished, black anodized finish
  • Tubeless Ready System
  • Angled Nipples Holes
  • Laced with 14G Stainless spokes & Brass nipples
  • Included rim tapes

FRONT HUB FEATURES:

  • 2 sealed bearings
  • Alloy axle / Alloy end caps
  • 3/8” bolts with alloy CNC bolts caps
  • Optional 20mm Conversion axle kit sold separately

REAR HUB FEATURES:

  • 4 sealed bearings
  • Chromoly axle
  • 3/8” bolts with alloy CNC bolts caps
  • Chromoly driver (3 pawls single engage into a 24 ratchets outer ring), with Chromoly 1x 1mm, 1x 0.5mm driver spacer and lock ring.
  • Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter
  • Rear Cog and Center Lock Disc adapter not included

SPECIFICATIONS

  • SIZE: 20" X 1.50"-1.75"
  • ETRTO: 406mm
  • ERD: 388mm
  • Height: 18.9mm (front) 18.8mm (rear)
  • Internal Rim Width: 21.9mm (front) | 23.3mm (rear)
  • External Rim Width: 28mm
  • Valve : A/V Schrader
  • RIMS DRILLING: 36 Holes
  • SPOKES LENGTHS: 183mm (front) | 182/184mm (rear)
  • WEIGHTS:: 818g (front) | 975g (rear)

Wheel Sizing Charts

Wheel Sizing Charts
RIDER WEIGHT RIDER AGE RECOMMENDED SIZE
RIDER WEIGHT: > 55 lbs RIDER AGE: > 5 RECOMMENDED SIZE: 18 x 1 inch
RIDER WEIGHT: 55 - 80 lbs RIDER AGE: 5 - 10 RECOMMENDED SIZE: 20 x 1.125 inch 24 x 1.125 inch
RIDER WEIGHT: 80 - 115 lbs RIDER AGE: 9 - 12 RECOMMENDED SIZE: 20 x 1.375 inch 24 x 1.375 inch
RIDER WEIGHT: 115 - 145 lbs RIDER AGE: 12 - 14 RECOMMENDED SIZE: 20 x 1.5 inch 24 x 1.5 inch
RIDER WEIGHT: 145 lbs < RIDER AGE: 14 < RECOMMENDED SIZE: 20 x 1.75 inch 24 x 1.75 inch
