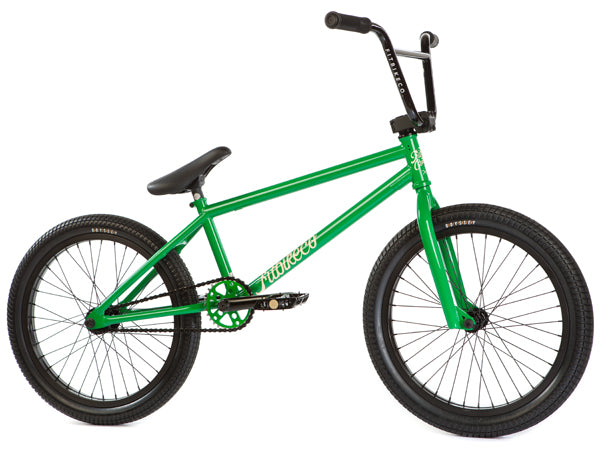

FIT Dugan BMX Signature Bike-Green

MAIN FEATURES:
*Full CrMo Frame, Fork, Handlebar
*Rider inspired aftermarket spec
*FIT CROSSFIT CNC’d Sprocket
*Tubular CrMo 48 Spline Cranks
*Sealed Female Axle Front & Rear Hubs
*FIT BENNY L Signature Front Load 46mm Stem
*Half Link Chain

FRAME SPECS:
Toptube Length: 20.75"
Chainstay Length: 13.6”
BB Height: 11.6"
Headtube Angle: 75°
Seattube Angle: 71°

Recommended Rider Height: 5' 7" - 6'

FRAME: Full CrMo, 20.75” Top Tube
HEADTUBE: Integrated
BB SHELL: MID
DROP OUTS: CrMo 14mm Axle Slots
BRAKE MOUNTING: Thread-on 990
SEAT CLAMP: Integrated
STEERER TUBE: 1Piece CNC Machined CrMo
LEGS: CrMo Tapered
DROP OUTS: CrMo 3/8” Axle Slots
HANDLEBAR: Full CrMo 2 Piece 8.375" X 29"
STEM: FIT Benny L Front Load 46MM
GRIPS: FIT Team Flangeless
HEADSET: Integrated 45°/45° Sealed 41.8MM
REAR BRAKE: Alloy 990 U-Brake, Soft Compound Pads
BRAKE LEVER: Odyssey Monolever Medium Hinged
BRAKE CABLE: Odyssey Linear/CNC Cable Hanger
GEARING: 30/10
CRANKS: Tubular CrMo 175mm 8 Spline
BOTTOM BRACKET: Sealed Bearing MID
SPROCKET: Odyssey C-512 30T
PEDALS: Odyssey JC Trailmix
CHAIN: PYC Half Link
FRONT HUB: Alloy Sealed 3/8" Female Axle
FRONT RIM: Odyssey Quadrant DBL Wall 36H
FRONT TIRE: Odyssey Aitken 2.25
REAR HUB: Sealed 14mm Axle/ 3/8" Female Bolts
REAR RIM: Odyssey Quadrant DBL Wall 36H
REAR TIRE: Fit FAF 2.25
SPOKES: 14G Black
NIPPLES: Brass
SEAT: Odyssey Senior 2 Pivotal
SEAT POST: Alloy Pivotal
PEGS: N/A
MISC: N/A

Weight: 24.56 LBS / 11.14 KG

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
