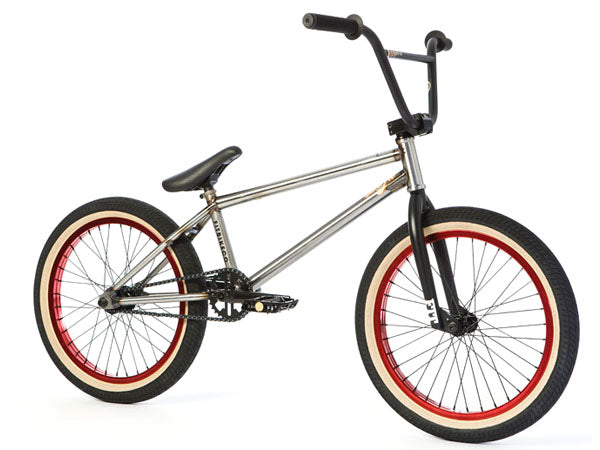

FIT Dugan Signature BMX Bike-Gloss Clear Raw

The FIT Bikes Dugan Signature complete BMX bike is as close as you get to replicating Dugan's acutal bike packed with after-market FIT and Odyssey parts.

FRAME SPECS:
Top tube Length: 21"
Chainstay Length: 13.78”
Headtube Angle: 75°
Seattube Angle: 71°

RECOMMENDED RIDER HEIGHT: 5' 8" - 6'+

SPECS:
FRAME: Full CrMo, 21” Top Tube
HEADTUBE: Integrated
BB SHELL: MID
DROP OUTS: CrMo 14mm Axle Slots
BRAKE MOUNTING: Thread-on 990
SEAT CLAMP: Integrated
FORK: 1pc CNC machined steer tube, tapered CrMo legs, 3/8"
HANDLEBAR: Full CrMo 2 Piece 8.5" X 29"
STEM: Odyssey TDFL 45MM
GRIPS: Odyssey Tommy Dugan
HEADSET: Integrated 45°/45° Sealed 41.8MM
REAR BRAKE: Alloy 990 U-Brake, Soft Compound
BRAKE LEVER: Odyssey Monolever Medium Hinged
BRAKE CABLE: Odyssey Slic/CNC Cable Hanger
GEARING: 30/10
CRANKS: Fit Indented CrMo 175mm 48 Spline
BOTTOM BRACKET: Sealed Bearing MID
SPROCKET: Fit Alloy Key CNC 30T
PEDALS: Odyssey JC Trailmix
CHAIN: PYC-P121 Half Link
FRONT HUB: Alloy Sealed 3/8” Female Axle
FRONT RIM: Revenge OHM DBL Wall 36H
FRONT TIRE: Fit FAF 2.3
REAR HUB: Sealed 14mm Axle/ 3/8" Female Bolts
REAR RIM: Revenge OHM DBL Wall 36H
REAR TIRE: Fit FAF 2.3
SPOKES: 14G Black
NIPPLES: Brass
SEAT: Fit Odyssey Senior 2 Pivotal
SEAT POST: Fit 200mm Pivotal
PEGS: NA

WEIGHT: 25.72 LBS / 11.67 KG

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
