Name: GT 2013 Pro Series Frame
Brand: GT
Price: 249.95 USD
Availability: Discontinued

GT

Sold Out

Frame Size:

About This Product: GT 2013 Pro Series Frame

PRODUCT DETAILS

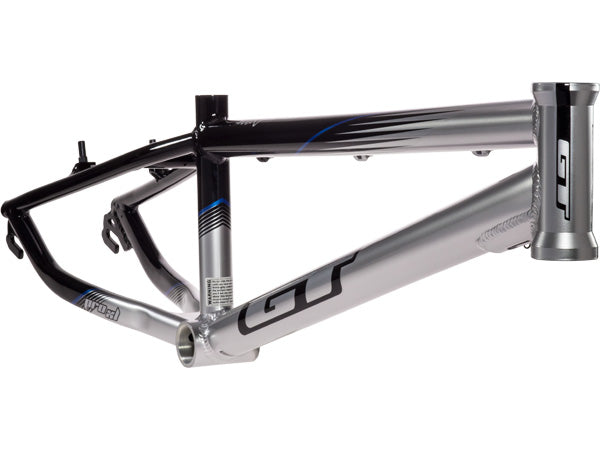

The 2013 GT Pro Series frame features 6061-T6 aluminum tubing with an integrated head tube, Euro bottom bracket shell, GT reverse dropouts and design uniqueness that keeps GT standing out from the rest.

FEATURES:
*6061 T6 tubing

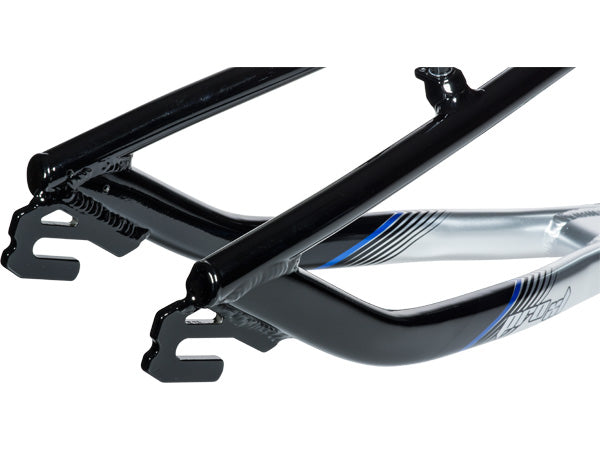

*Reverse dropout design

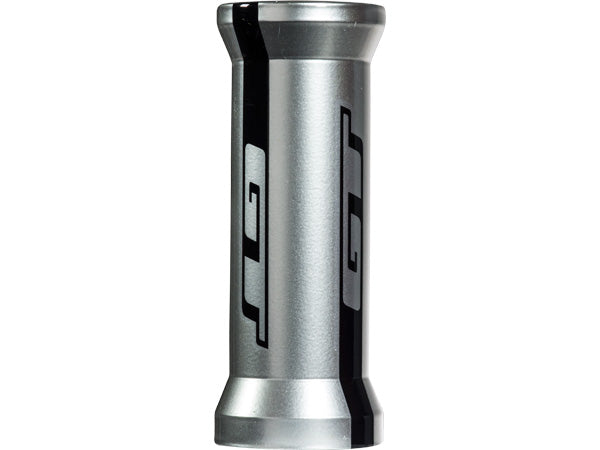

*Integrated head tube
*Wishbone style chainstay for stiffness and strength
*Euro Bottom bracket
*V-Brake mounts

SPECS:

USE: Race

MATERIAL: 6061 aluminum

HEADSET STYLE: Integrated

BRAKE MOUNTS: V-Brake

BB SHELL: Euro

TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle | H/S: Headset size

SIZE	TT	CS	H/S	HA	SA	SEAT CLAMP	SEAT POST	WEIGHT
Mini	17"	13"	1" Integrated	72°	70°	1 1/8"	25.4mm	2 lbs 2.9oz
Junior	18.5"	13.5"	1" Integrated	73°	70°	1 1/8"	25.4mm	2 lbs 9oz
Expert	19.25"	13.5"	1 1/8" Integrated	73°	70°	1 1/8"	25.4mm	2 lbs 10oz
Pro	20.5"	14.25"	1 1/8" Integrated	74°	72°	1 1/4"	27.2mm	3lbs 4.2oz
Pro XL	21"	14.75"	1 1/8" Integrated	74°	72°	1 1/4"	27.2mm	3lbs 5.2oz
Pro 24"	21.75	15.5"	1 1/8" Integrated	73°	70°	1 1/4"	27.2mm	3lbs 9.1oz
