GT 2013 Speed Series BMX Race Frame-Blue/Silver - 1
GT 2013 Speed Series BMX Race Frame-Blue/Silver - 2
GT 2013 Speed Series BMX Race Frame-Blue/Silver - 3

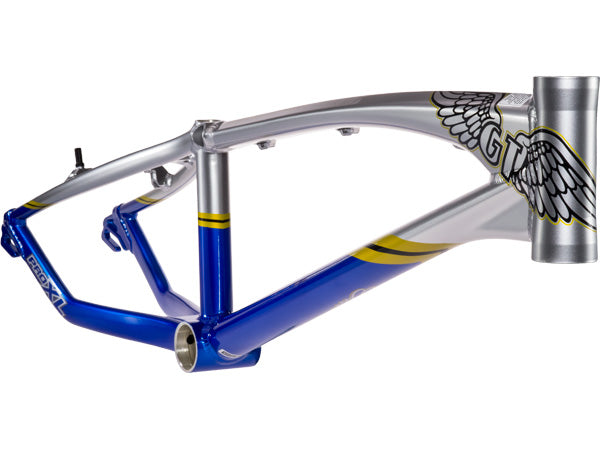

GT 2013 Speed Series BMX Race Frame-Blue/Silver

Sold Out

About This Product: GT 2013 Speed Series BMX Race Frame-Blue/Silver

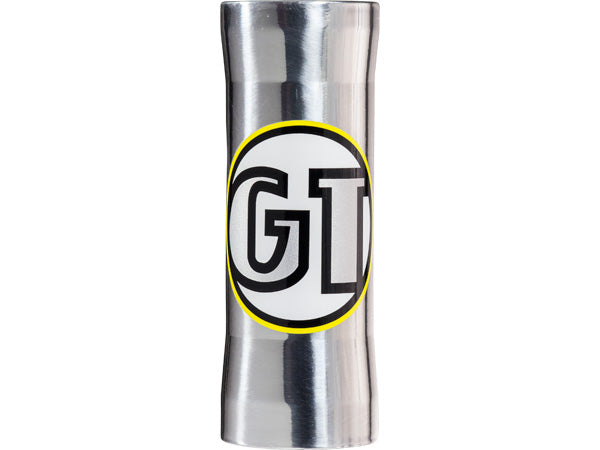

The 2013 GT Speed Series race frame is made from 6061 T6 aluminum and features an integrated headtube, one of a kind rear triangle design, and hydroformed frame tubing.  All frames also feature an integrated seat clamp.

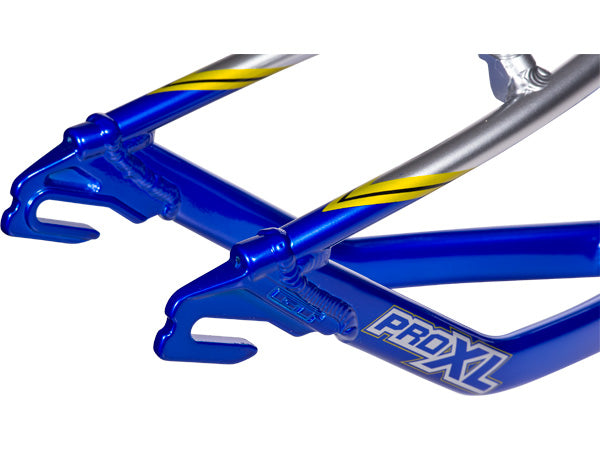

NOTE: Pro, ProXL, ProXXL and Pro 24" Cruiser features a 30mm bottom bracket and reverse drop-outs that are unique to BMX. These sizes with include a Euro conversion kit so you can run any Euro bottom bracket.  The Junior and Expert use a standard Euro bottom bracket.  All frames include chain tensioners.

FEATURES:
*6061 T6 aluminum tubing
*Hydro-formed tubing shape
*Unique bottom bracket shell for pro size frames, stiffer
*Integrated seat clamp eliminates the need for a regular clamp

SPECS:
Junior and Expert: 25.4mm post
All Pro Sizes: 27.2mm post
USE: Race
MATERIAL: 6061 aluminum
HEADSET STYLE: integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro (JR and EX), 30mm for Pro and larger
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle
SIZE
TT
CS
HEADSET HA SA BB HEIGHT WEIGHT
JUNIOR 18.5" 13.5" 1" 73° 70° 10.25" 2lbs 15.8oz
EXPERT 19.25" 13.5" 1 1/8" 73° 70° 10.25" 3lbs 1.8oz
PRO 20.5" 14.5" 1 1/8" 74° 72° 10.75" 3lbs 11.1oz
PRO XL 21" 14.5" 1 1/8" 74° 72° 10.75" 3lbs 10.5os
PRO XXL 21.5" 15" 1 1/8" 74° 72° 10.75" 3lbs 11.9oz
PRO 24 21.75" 15.5" 1 1/8" 73° 70° 11.5" 3lbs 12.2oz


Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
