GT 2014 Speed Series BMX Race Frame-Black/White - 1
GT 2014 Speed Series BMX Race Frame-Black/White - 2
GT 2014 Speed Series BMX Race Frame-Black/White - 3
GT 2014 Speed Series BMX Race Frame-Black/White - 4

GT 2014 Speed Series BMX Race Frame-Black/White

Sold Out

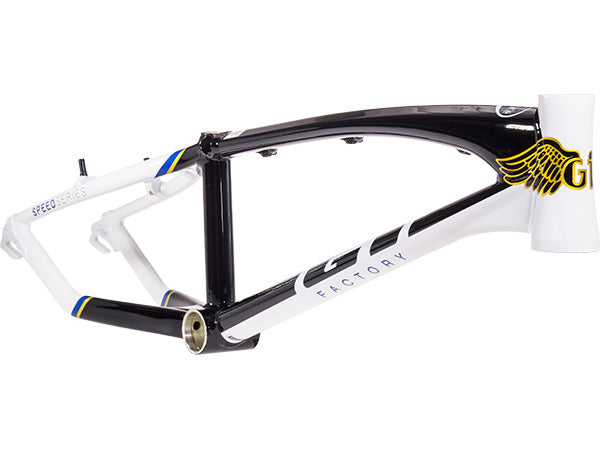

About This Product: GT 2014 Speed Series BMX Race Frame-Black/White

The 2014 GT Speed Series race frame features hydro formed and butted speed metal tubing that sets itself apart from the rest of the pack.  The GT Speed Series is super light, stiff and technology know to produce some of the fastest BMX racers on Earth.

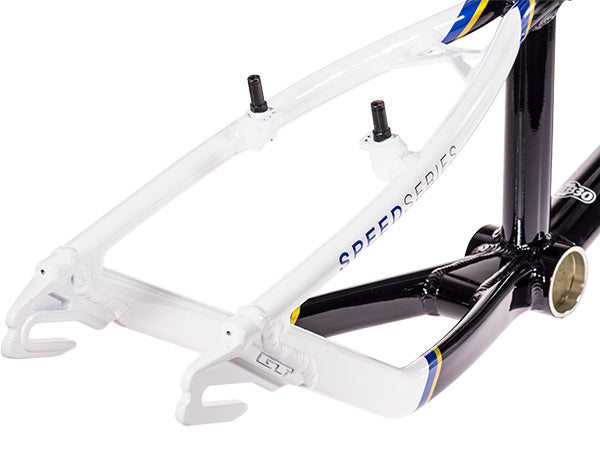

NOTE: Pro, ProXL, ProXXL and Pro 24" Cruiser features a 30mm bottom bracket and reverse drop-outs that are unique to BMX. These sizes will include a Euro conversion kit so you can run any Euro bottom bracket.  The Junior and Expert use a standard Euro bottom bracket.  All frames include chain tensioners.

FEATURES:
*6061 T6 aluminum tubing
*Hydro-formed tubing shape
*Unique bottom bracket shell for pro size frames, stiffer
*Integrated seat clamp eliminates the need for a regular clamp

SPECS:
Junior and Expert: 25.4mm post

All Pro Sizes: 27.2mm post

USE: Race
MATERIAL: 6061 aluminum

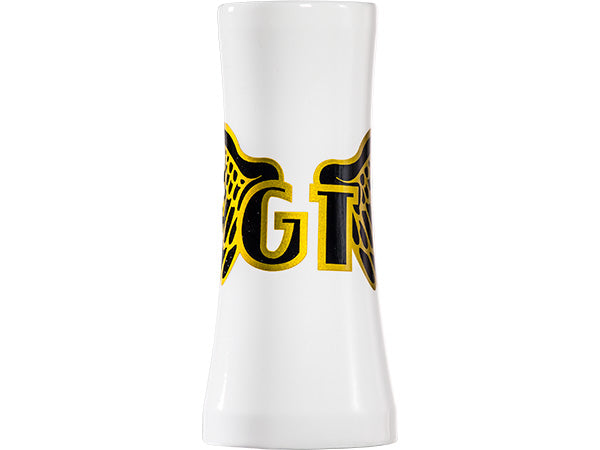

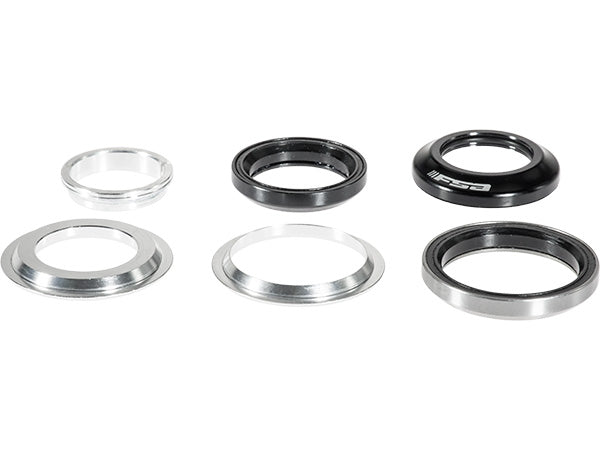

HEADSET STYLE: integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro (JR and EX), 30mm for Pro and larger
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle
SIZE
TT
CS
HEADSET HA SA BB HEIGHT WEIGHT
JUNIOR 18.5" 13.5" 1" 73° 70° 10.25" 2lbs 15.8oz
EXPERT 19.25" 13.5" 1-1/8" 73° 70° 10.25" 3lbs 1.8oz
PRO 20.5" 14.5" 1-1/8" 74° 72° 10.75" 3lbs 11.1oz
PRO XL 21" 14.5" 1-1/8" 74° 72° 11.5" 3lbs 10.5os
PRO XXL 21.5" 15" 1-1/8" 74° 72° 11.5" 3lbs 11.9oz
PRO XXXL  22"  15.5" 1-1/8" 74° 72° 11.5" 3lbs 13.7oz
PRO 24 21.75" 15.5" 1-1/8" 73° 70° 11.5" 3lbs 12.2oz

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
