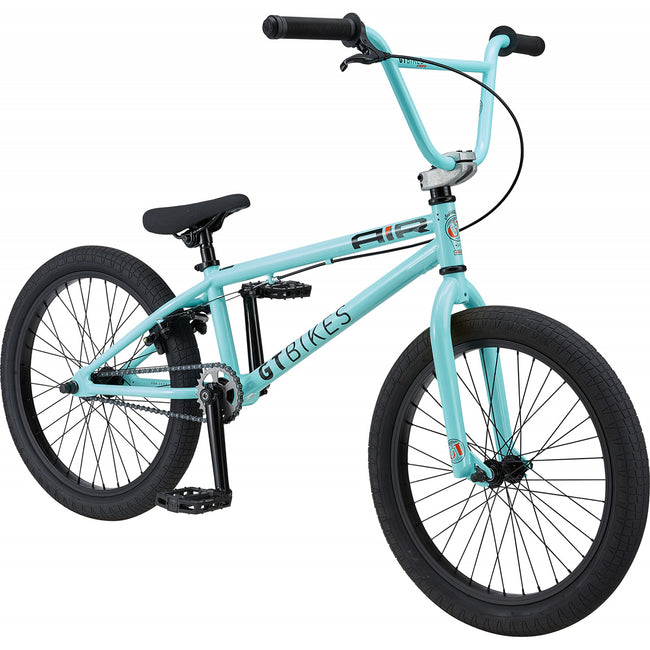

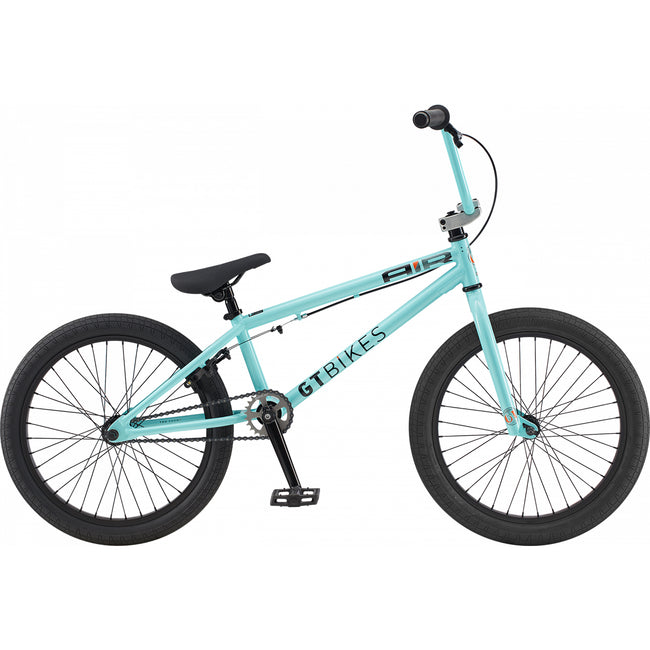

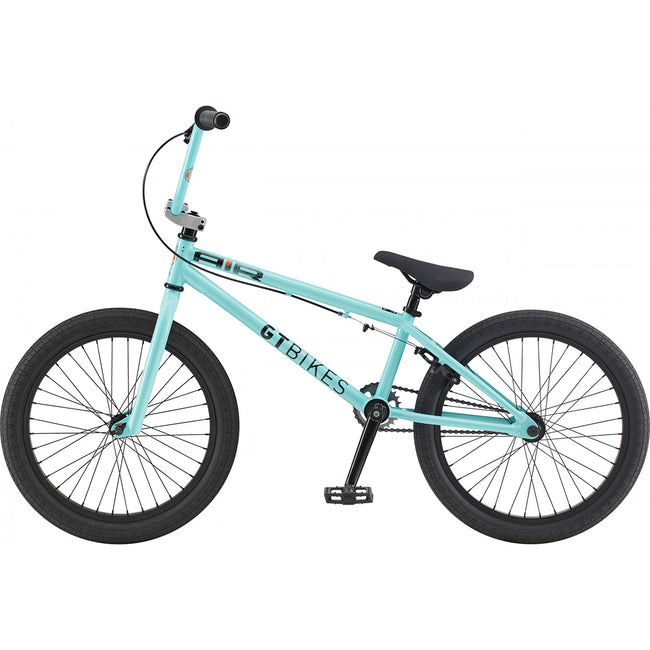

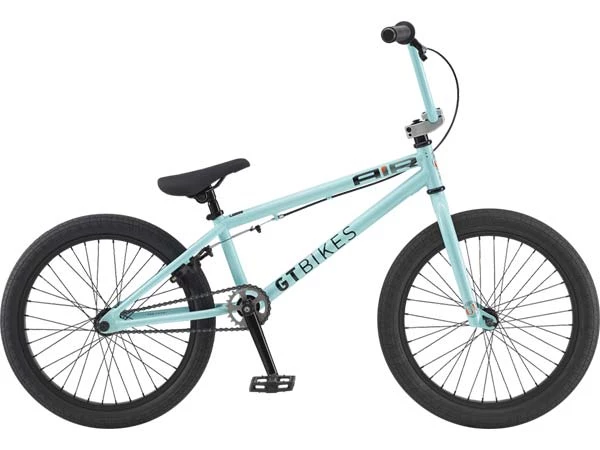

GT Air 20"TT BMX Bike-Turquoise

A Breath of Fresh...

SPECIFICATION

• FRAME: GT FS Design, Hi-Ten Steel Tubes, DT Gusset, American BB, Seat Stay Mounted U-Brake, External 1-1/8" H/T, w/ Removable Rotor Tabs, Odyssey Springfield Brake compatible
• FORK: GT FS Design, Hi-Ten 2pc. Steerer & Tapered Legs, 31mm Offset, 3/8" Axle Dropouts
• CHAIN: KMC Z410
• CRANK: GT Power Series Cr-Mo 170mm 3Pc. 19mm x 8T Cr-Mo Spindle, GT 25T Steel Chainwheel
• BOTTOM BRACKET: American Loose Ball Bearing
• PEDALS: GT Low Profile FS Platform Design, PP Material, Boron Axle
• RIMS: Alloy single wall, 20" 36h
• TIRES: Innova, 20 x 2.3" front, 2.2" rear
• FRONT HUB: Steel Body, Loose Ball 3/8" x 150mm Heat Treated Axle, 36 Hole, 15mm Nut front, Steel Body, Loose Ball, 14mm Adapter x 180mm Axle, 9T Cassette, 36 Hole, 17mm Nut rear
• SPOKES: Stainless Steel, 14g
• BRAKES: Aluminum U-Brake w/ Soft Compound Pad
• BRAKE LEVERS: Alloy
• HANDLEBAR: GT Freestyle 2pc., Steel, 8.375"H x 28"W, 3°Up, 11° sweep
• STEM: New GT Top Load, 1-1/8", Cold Forged Cap, 32mm Rise, 40mm Length
• GRIPS: GT Super Soft 155mm Single Compound w/ GT removable plug
• HEADSET: 1-1/8" Threadless, Steel
• SADDLE: GT saddle
• SEAT POST: Steel, 25.4 x 200mm

GEOMETRY

• A. Seat Tube Length: 9
• C. Top Tube Actual: 20.0
• D. Head Tube Angle: 75.0°
• E. Seat Tube Angle: 71.0°
• G. Head Tube Length: 4.0
• H. Wheelbase: 34.9
• I. Front Center: 21.9
• J. Chain Stay Length: 13.2
• K. BB Drop: 1.6
• L. BB Height: 11.8
• M. Fork Rake: 1.2
