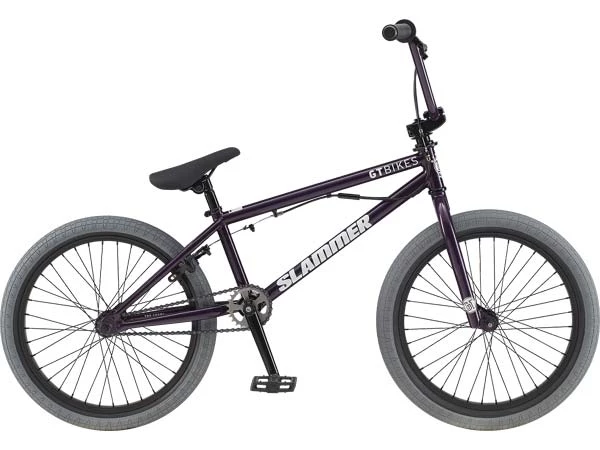

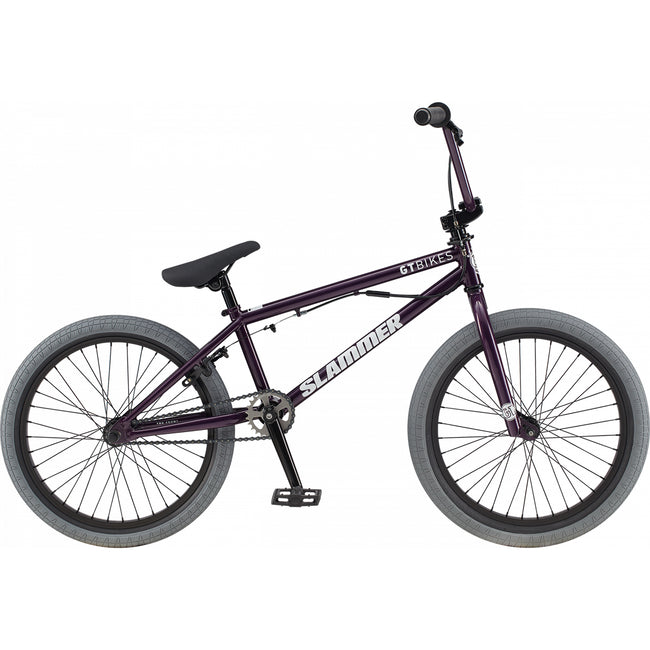

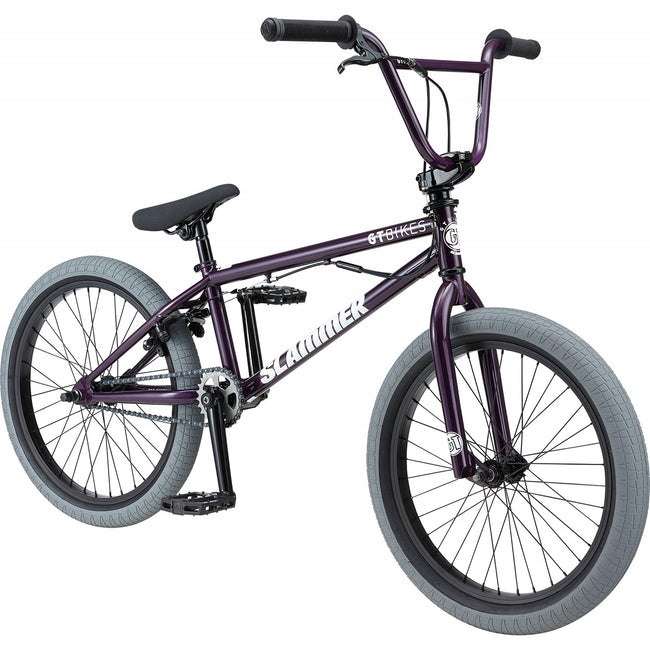

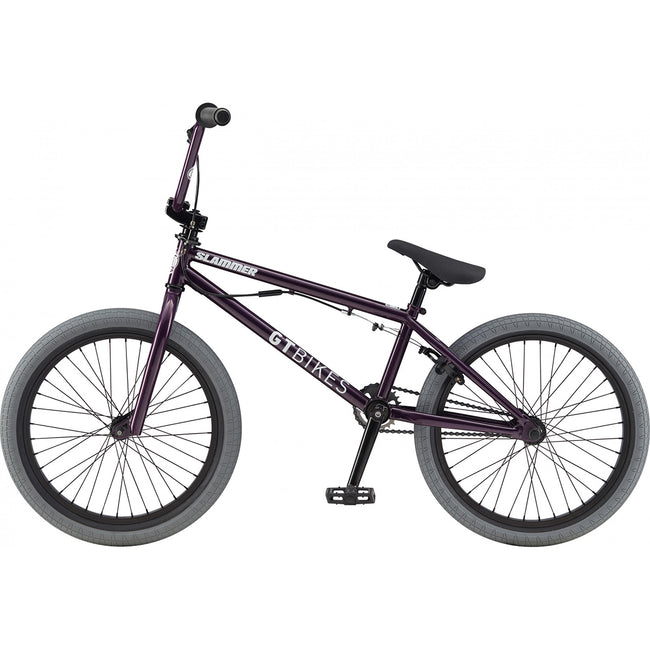

GT Slammer 20"TT BMX Bike-Deep Purple

A low-maintenance, technique driven bike for riders looking to improve their freestyle skills.

SPECIFICATION

• FRAME: GT FS Design, Hi-Ten Steel Tubes, DT Gusset, American BB, Seat Stay Mounted U-Brake, External 1-1/8" H/T, w/ Removable Rotor Tabs, Odyssey Springfield Brake compatible
• FORK: GT FS Design, Hi-Ten 2pc. Steerer & Tapered Legs, 31mm Offset, 3/8" Axle Dropouts
• CHAIN: KMC S1
• CRANK: GT Power Series Cr-Mo 3pc., 170mm Arms, 19mm x 8T Cr-Mo Spindle, GT 25T Steel Chainwheel
• BOTTOM BRACKET: American Loose Ball Bearing
• PEDALS: GT Low Profile FS Platform Design, PP Material, Boron Axle
• COG SET: 9T Sealed 1pc. Driver
• RIMS: Alloy Single Wall, 36h
• TIRES: INNOVA 20 x 2.3"
• WHEELS SIZE: 20
• FRONT HUB: Steel Body, Loose Ball 3/8" x 150mm Heat Treated Axle, 36h, 15mm Nut
• SPOKES: Stainless Steel, 14g
• BRAKES: SST ORYG Detangler, Aluminum U-Brake w/ Soft Compound Pad
• BRAKE LEVERS: Alloy
• HANDLEBAR: GT Freestyle 2pc., Steel, 8.375"H x 28"W, 3°Up, 11° Back
• STEM: GT Top Load, 1-1/8", Cold Forged Cap, 32mm Rise, 40mm
• GRIPS: GT Super Soft 155mm Single Compound w/ GT removable plug
• HEADSET: 1-1/8" Threadless, Steel
• SADDLE: Railed
• SEAT POST: Alloy, 25.4mm x 200mm

GEOMETRY

• A. Seat Tube Length: 9.4
• C. Top Tube Actual: 20.0
• D. Head Tube Angle: 75.0°
• E. Seat Tube Angle: 71.0°
• G. Head Tube Length: 4.0
• H. Wheelbase: 34.9
• I. Front Center: 21.9
• J. Chain Stay Length: 13.2
• K. BB Drop: -1.8
• L. BB Height: 12.0
• M. Fork Rake: 1.2
