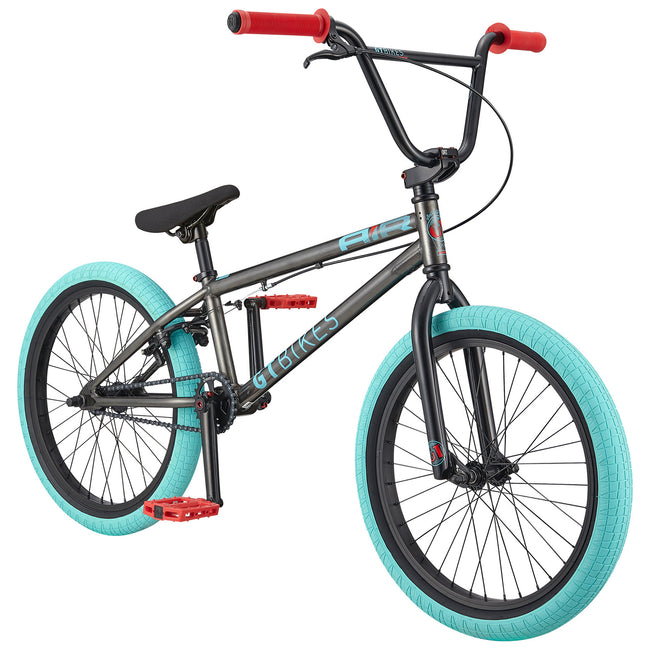

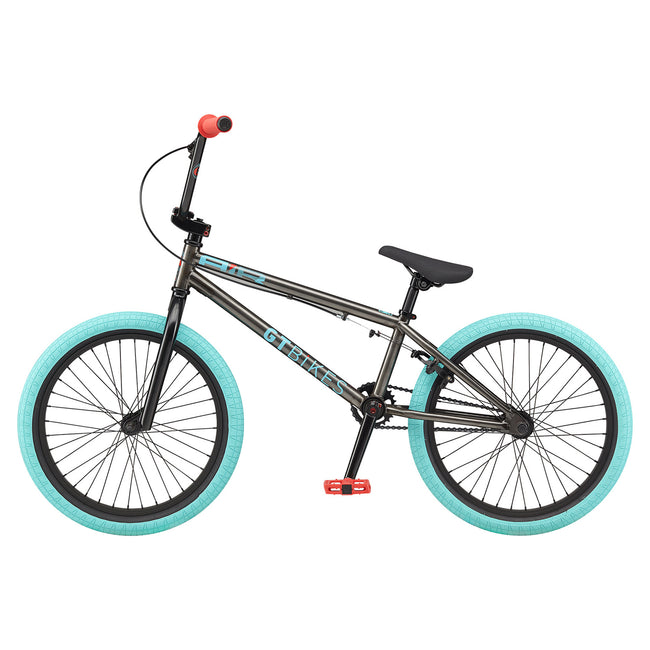

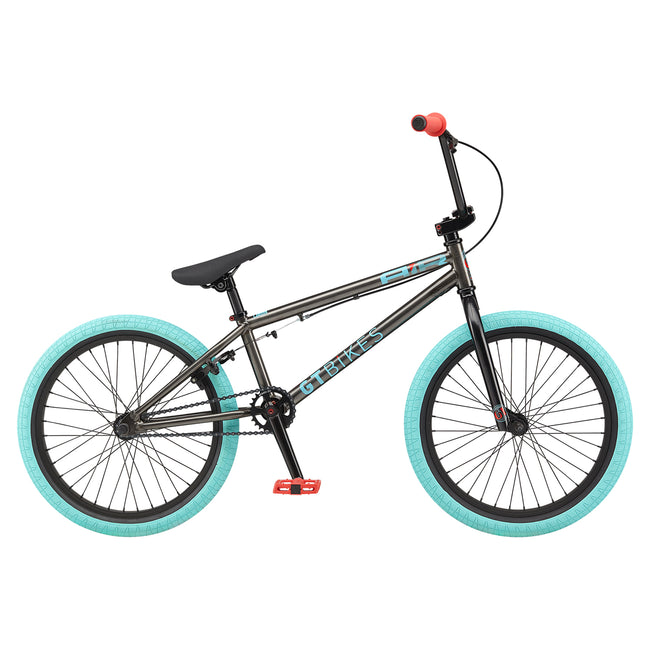

GT Air 20"TT BMX Bike-Guinness Black

At home in the neighborhood or the skatepark, the Air is the perfect first bike. The frame geometry is quick responsive allowing the bike to handle easier as the young rider builds up their strength. Spec'd with a 25t sprocket, a 9t cassette rear hub, and large volume tires, the Air lets the rider fit in with their friends without a high price tag.

FEATURES

• GT NBS 40mm Topload Stem
• Simple and Clean Straight Cable
• Adjustable Railed 2pc Saddle

SPECIFICATIONS

• FRAME: Hi-Ten Steel Tubes, DT Gusset, American BB, Seat Stay U-Brake, 1-1/8" H/T, w/ Removable Rotor Tabs
• FORK: GT FS Design, Hi-Ten 2pc. Steerer & Tapered Legs, 31mm OffSet, 3/8" Axle Dropouts
• CHAIN: KMC Z410
• CRANK: GT Power Series Cr-Mo 3pc., 170mm Arms, 19mm x 8T Cr-Mo Spindle, GT 25T Steel Chainwheel
• BOTTOM BRACKET: American Loose Ball Bearing
• PEDALS: GT Low Profile FS Platform Design
• COG SET: 9T 1pc. Driver
• RIMS: Alloy Single Wall, 36h
• TIRES: Innova 20 x 2.2"Innova 20 x 2.3"
• FRONT HUB: Steel Body, Loose Ball 3/8" x 150mm Heat Treated Axle, 36h, 15mm Nut
• REAR HUB: Steel Body, Loose Ball, 14mm Adapter x 180mm Axle, 9T Cassette, 36h, 17mm Nut
• SPOKES: Stainless Steel, 14g
• BRAKES: Aluminum U-Brake w/ Soft Compound Pad
• FRONT BRAKE: Aluminum U-Brake w/ Soft Compound Pad
• REAR BRAKE: Aluminum U-Brake w/ Soft Compound Pad
• BRAKE LEVERS: Alloy U-type
• HANDLEBAR: GT Freestyle 2pc., Steel, 8.375"H x 28"W, 3° Up, 11° Back
• STEM: GT Top Load, 1-1/8", Cold Forged Cap, 32mm Rise, 40mm
• GRIPS: GT Super Soft Flanged 155mm Single Compound w/ GT Removable Plug
• HEADSET: 1-1/8" Threadless, Steel
• SADDLE: Railed
• SEAT POST: Alloy, 25.4mm x 200mm

GEOMETRY

1. SEAT TUBE LENGTH: 9
2. TOP TUBE ACTUAL: 20
3. HEAD TUBE ANGLE: 75°
4. SEAT TUBE ANGLE: 71°
5. SEAT TUBE LENGTH: 4
6. WHEELBASE: 34.9
7. FRONT CENTER: 21.9
8. CHAIN STAY LENGTH: 13.2
9. BB DROP: -1.6
10. BB HEIGHT: 11.8
11. FORK RAKE: 1.2
12. SEAT POST DIAMETER: 25.4mm
13. AXLE TO CROWN: 12.6
