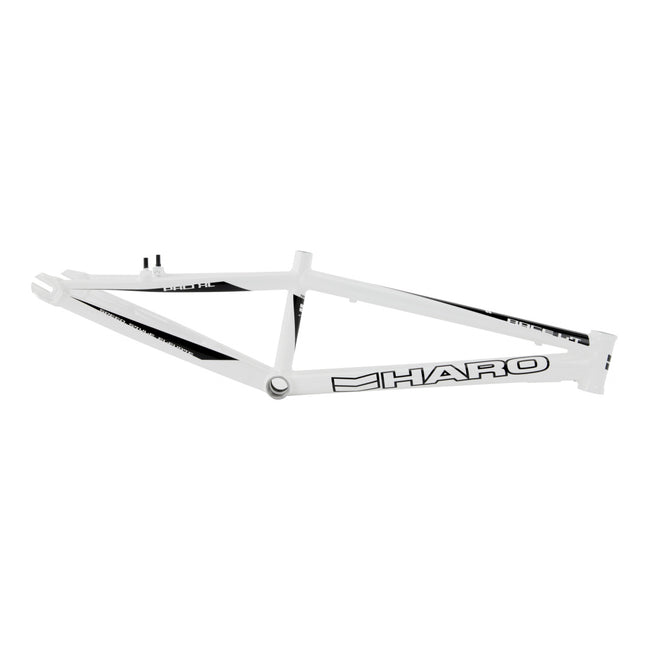

Haro Race Lite BMX Race Frame-White Pro XL

Haro
Sold Out

About This Product: Haro Race Lite BMX Race Frame-White Pro XL

Lightweight aluminum race frame featuring 7000 series aluminum tubing.

FEATURES

  • 7000 Aluminum tubing
  • Campy 45°x45° integrated headtube
  • ovalized downtube
  • Downtube gussets
  • Euro BB shell
  • rectangular chainstays
  • V-Brake mounts
  • 8mm thick dropouts

SPECIFICATIONS

  • USE: Race
  • MATERIAL: 7000 aluminum
  • HEADSET STYLE: Integrated
  • BRAKE MOUNTS: V-Brake
  • BB SHELL: Euro

GEOMETRY

Haro Race Frame Geometry Chart
SIZE TT CS H/S HA SA SC SP WEIGHT
SIZE: PRO TT: 20.75" CS: 14.25" H/S: 1 1/8" HA: 74° SA: 72° SC: 1 1/4" (31.8mm) SP: 27.2mm WEIGHT: 3lbs 5oz
SIZE: PRO XL TT: 21" CS: 14.625" H/S: 1 1/8" HA: 74° SA: 72° SC: 1 1/4" (31.8mm) SP: 27.2mm WEIGHT: 3lbs 6.1oz
SIZE: PRO XL+ TT: 21.25" CS: 14.625" H/S: 1 1/8" HA: 74° SA: 72° SC: 1 1/4" (31.8mm) SP: 27.2mm WEIGHT: 3lbs 6.8oz

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
