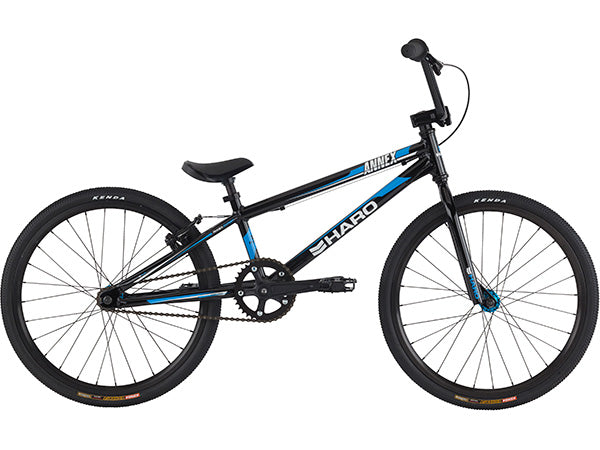

Haro Annex Race Bike-Expert-Gloss Black

Name: Haro Annex Race Bike-Expert-Gloss Black
Brand: Haro
Price: 399.95 USD
Availability: Discontinued

Haro

Sold Out

About This Product: Haro Annex Race Bike-Expert-Gloss Black

PRODUCT DETAILS

Recommended Rider Height:

Top Tube	18.87"
Head Angle	73°
Seat Angle	71°
BB Height	11"
Chainstay	13.75"

Frame	KSK-FRB100233; 6061 ALLOY EXPERT FRAME; PMT CHINA
Fork	HARO MINI / JUNIOR / EXPERT FORK 20"; MODEL #FKB0043; HARO BMX RACING FORK; 25.4MM (1") OD THREADLESS CRMO 1.6t STEERER & 1.2t LEG; M10155L278*100W
Colors	Gloss Black
Headset	VP-A31; 1" AHEADSET
Stem	HARO 2014 OE FRONT-LOAD STEM; #ITC-XD831; MELT FORGED; 45MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 25.4MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
Handlebar	HARO EXPERT BAR; HBB307; ALLOY 3.2T W/ 19MMX2.0T WELDED CROSSBAR; 630WX165HX10 DEGREE BACKSWEEP; SAND BLAST BLACK ANODIZED; NO DECAL
Grips	VELO GRIP; MODEL #VLG 410; 115MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
Seat	VELO #VL-7208; PLASTIC SADDLE BLACK W/O PADDING; ALLOY POST 22.2 X 200MM BLACK ANODIZED NO LOGO
Seat Post	BLACK ALLOY W/ SEAT; 22.2 X 200MM (PRICE INCLUDED WITH SEAT)
Seat Post Clamp	ProMax MX28 25.4MM; SAND BLAST BLACK W/ NO LOGO
Rims	#DA16; 20 X 1 3/8"; 28H; ALL BLACK WITHOUT CNC OR SIDEWALL TREATMENT; PV
Front Hub	KT HUB; MODEL #KT-516F; 28H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; LOOSE BALL
Rear Hub	KT HUB; MODEL #KT-5V4R; 28H LOW FLANGE ALLOY SHELL; 3/8" X 155MM LENGTH AXLE; LOOSE BALL; THREAD BC 1.37/M30*1.0 FLIP-FLOP
Spokes	14 GUAGE STEEL BLACK; W/ 12MM BLACK NIPPLES
Tires	KENDA K1054, 20x1-3/8", BK/BKS/BSK 60tpi-100psi DTC; 20"1-3/8 F/V W/PRESTA VALVE TUBE; 20"16mm PVC RIM STRIP FOR 20X1-1/8" RIM
Crankset	CHUAN WEI MODEL #AF23-136A; 170MM ARM LENGTH; 110MM 5 BOLT PATTERN; FORGED ALLOY; SQUARE TAPER SPINDLE INTERFACE; SPROCKET BOLTS INCLUDED WITH CRANK SET (BLACK)
Bottom Bracket	CHUAN WEI MODEL #SAX-J21ST; 68 X 118MM; CR-MO SPINDLE SQUARE TAPER INTERFACE; 2 SEALED CARTRIDGE BEARINGS
Pedals	VP-505; Alloy body; Boron Steel Axle; Loose ball bearing; dimension = 102 x 93
Brake	PROMAX MODEL #MV-87; MINI V-BRAKE; ARM LENGTH 85MM; 70MM ANGLE ADJUSTMENT PADS 271MW; BLACK; BLACK HARDWARE
Brake Lever	PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
Chain	KMC 410A; 1/2'X1/8"X82L; BROWN / BROWN
Gearing	1/2”X1/8”x36T ALLOY CHAINRING; SANDBLAST BLACK ANODIZED (PRICE INCLUDED WITH CRANK SET)
Extras	SM WATER TRANSFER DECAL

Weight:

Additional Information

Barcode	133321
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size	Age	Rider's Height
Size: Micro Mini	Age: 4 - 5	Rider's Height: 3'6" - 4'
Size: Mini	Age: 5 - 7	Rider's Height: 4' - 4'5"
Size: Junior	Age: 7 - 9	Rider's Height: 4'5" - 4'9"
Size: Expert	Age: 9 - 11	Rider's Height: 4'8" - 5'4"
Size: Expert XL	Age: 11 - 12	Rider's Height: 5'3" - 5'8"
Size: Pro	Age: 13+	Rider's Height: 5'6" - 5'10"
Size: Pro XL	Age: 13+	Rider's Height: 5'9" - 6'
Size: Pro 24	Age: 13+	Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:
