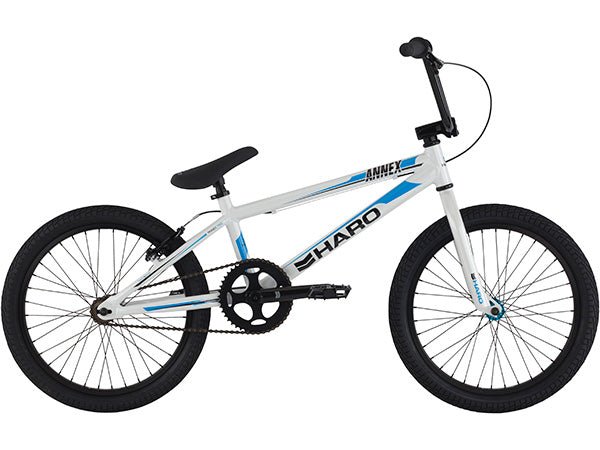

Haro Annex Race Bike-Pro-Metallic White

Name: Haro Annex Race Bike-Pro-Metallic White
Brand: Haro
Price: 399.95 USD
Availability: Discontinued

Haro

Sold Out

About This Product: Haro Annex Race Bike-Pro-Metallic White

PRODUCT DETAILS

Recommended Rider Height:

Top Tube	20.5"
Head Angle	74°
Seat Angle	72°
BB Height	11.5"
Chainstay	14.37"

Frame	FRAME DRAWING #FRB0058260; 20.5" T/T; Alloy tubes, v-brake style brake mounts on seat stays, flat (2D) rear dropout for 3/8" axle - NEW SMALLER SHAPE, THREADED EURO BB, no internal head tube; 27.2 Seat Tube ID.
Fork	KSK FORK DRAWING #FKB110 20"161282314*100W/oPivot,"#4"LG; THREADLESS 1-1/8" 100% CRMO, 31.8 x 1.4T NON-TAPERED LEG; STEERER LENGTH 161MM;3/8" DROPOUT SLOT
Colors	Metallic White
Headset	#VP-A71; AHEADSET 1-1/8" THREADLESS，9PCS
Stem	HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
Handlebar	EVG PROMAX #HB-B201 (W6850); HARO 8" OE HANDLEBAR; STEEL BAR; 8" RISE x 27" WIDE; REVISED CROSSBAR 19MM*1.4T
Grips	VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
Seat	VELO SADDLE #VL-7122; BLACK, W/4MM PADDING, ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK
Seat Post	ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK ,W/O LOGO (INCLUDED WITH SEAT)
Seat Post Clamp	ProMax MX38-RT 31.8MM; SAND BLAST BLACK W/ NO LOGO
Rims	#AS26; SINGLE WALL PIN JOINT RIM; 20" * 1.75"*36H; ALL BLACK ANODIZED NO EYELETS
Front Hub	KT HUB; MODEL #KT-516F; 36H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; LOOSE BALL
Rear Hub	KT HUB; MODEL #KT-5V4R; 36H LOW FLANGE ALLOY SHELL; 3/8" X 155MM LENGTH AXLE; LOOSE BALL; THREAD BC 1.37
Spokes	14 GAUGE STEEL BLACK; 12MM BLACKNIPPLE; LACED 3 CROSS
Tires	KENDA KONTACT #K841; 20X2.25; ALL BLACK; TUBE 20"2.25 A/V BK; RIM STRIP 20"16mm
Crankset	#BFC-21A; 3-PC 175MM; HI-TEN FORGED HEAD AND PEDAL BOSSES; 11,9/16" HOLE; HARO CHEVRON LOGO
Bottom Bracket	CHUAN WEI MODEL #AX02-EBA; 19MM CR-MO SPINDLE- 8 SPLINE INTERFACE; 4 EURO SEALED BEARINGS; ALLOY CUP AND CONE WASHERS; INCLUDE BEARING SPACER, SPROCKET ADAPTER AND WASHERS, SPINDLE BOLTS
Pedals	VP-565 Aluminum; Ball Bearing; 9/16"; NO LOGO
Brake	PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE
Brake Lever	PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
Chain	KMC Z410A BROWN / BROWN; 1/2X1/8X88L
Gearing	CHUAN WEI MODEL #CW-1488M-44T; 5MMx44T ALLOY CHAINRING; SAND BLAST ANODIZED
Extras

Weight:

Additional Information

Barcode	133323
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size	Age	Rider's Height
Size: Micro Mini	Age: 4 - 5	Rider's Height: 3'6" - 4'
Size: Mini	Age: 5 - 7	Rider's Height: 4' - 4'5"
Size: Junior	Age: 7 - 9	Rider's Height: 4'5" - 4'9"
Size: Expert	Age: 9 - 11	Rider's Height: 4'8" - 5'4"
Size: Expert XL	Age: 11 - 12	Rider's Height: 5'3" - 5'8"
Size: Pro	Age: 13+	Rider's Height: 5'6" - 5'10"
Size: Pro XL	Age: 13+	Rider's Height: 5'9" - 6'
Size: Pro 24	Age: 13+	Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:
