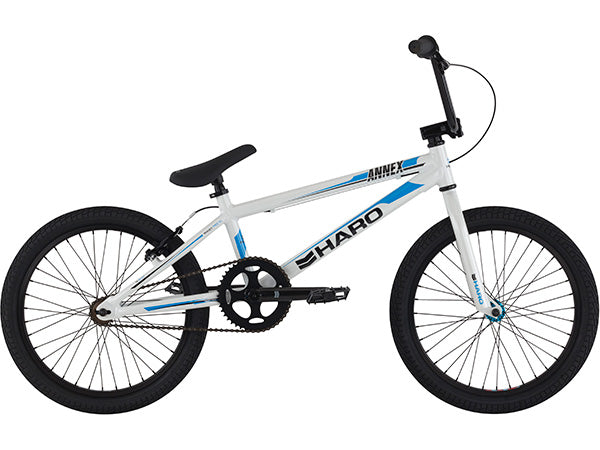

Haro Annex Race Bike-Pro XL-Metallic White

Haro
Sold Out

About This Product: Haro Annex Race Bike-Pro XL-Metallic White

PRODUCT DETAILS

DECAL/NAME PLATE SM WATER TRANSFER DECAL
FRAME FRAME DRAWING #KSK-FRB0059260; 21" T/T; Alloy tubes, v-brake style brake mounts on seat stays, flat (2D) rear dropout for 3/8" axle - NEW SMALLER SHAPE, THREADED EURO BB, no internal head tube; 27.2 Seat Tube ID.
FORK KSK FORK DRAWING #FKB110 20"161*282*314*100W/oPivot,"#4"LG; THREADLESS 1-1/8" 100% CRMO, 31.8 x 1.4T NON-TAPERED LEG; STEERER LENGTH 161MM;3/8" DROPOUT SLOT
HEAD SET #VP-A71;  AHEADSET 1-1/8" THREADLESS，9PCS
HEADSET SPACERS  2 X 5MM ALLOY BLACK ANODIZED SPACER
TOP CAP/STAR NUT #FP-HW-20; FLAT TOP CAP W/STAR NUT,W/O  梅花华司; NO LOGO
SPROCKET/SPIDER CHUAN WEI MODEL #CW-1488M-44T; 5MMx44T ALLOY CHAINRING; SAND BLAST ANODIZED
CRANK SET #BFC-21A; 3-PC 175MM; HI-TEN FORGED HEAD AND PEDAL BOSSES; 11,9/16" HOLE; HARO CHEVRON LOGO
BB-SET CHUAN WEI MODEL #AX02-EBA; 19MM CR-MO SPINDLE- 8 SPLINE INTERFACE; 4 EURO SEALED BEARINGS; ALLOY CUP AND CONE WASHERS; INCLUDE BEARING SPACER, SPROCKET ADAPTER AND WASHERS, SPINDLE BOLTS
HANDLEBAR EVG PROMAX #HB-B201 (W6850); HARO 8" OE HANDLEBAR; STEEL BAR; 8" RISE x 27" WIDE; REVISED CROSSBAR 19MM*1.4T
STEM HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG N/A
F/HUB KT HUB; MODEL #KT-516F; 36H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; LOOSE BALL
R/HUB KT HUB; MODEL #KT-5V4R; 36H LOW FLANGE ALLOY SHELL; 3/8" X 155MM LENGTH AXLE; LOOSE BALL; THREAD BC 1.37
FRONT RIM #AS26; SINGLE WALL PIN JOINT RIM; 20" * 1.75"*36H; ALL BLACK ANODIZED NO EYELETS
REAR RIM #AS26; SINGLE WALL PIN JOINT RIM; 20" * 1.75"*36H; ALL BLACK ANODIZED NO EYELETS
SPOKES 14 GAUGE STEEL BLACK; 12MM BLACKNIPPLE; LACED 3 CROSS
FRONT TIRE/TUBE/STRIP KENDA KONTACT #K841; 20X2.25; ALL BLACK; TUBE 20"*2.25 A/V BK; RIM STRIP 20"*16mm
REAR TIRE/TUBE/STRIP KENDA KONTACT #K841; 20X1.95; ALL BLACK; TUBE 20"*1.95 A/V BK; RIM STRIP 20"*16mm
F/BRAKE N/A
R/BRAKE PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE
BRAKE LEVER PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING PROMAX 2P CASING/SLICK TYPE INNER CABLE
ROTOR N/A
FREEWHEEL A8K-16, 1/2" X 1/8" X 16T BROWN
CHAIN KMC Z410A BROWN / BROWN; 1/2X1/8X88L
CHAINGUARD #CN-068N; 20" BMX  CH PLASTIC W/CLAMP
SADDLE VELO SADDLE #VL-7122; BLACK, W/4MM PADDING, ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK
SEAT POST ANODIZED BLACK ALLOY POST 27.2 * 200MM W/POST LOCK ,W/O LOGO (INCLUDED WITH SEAT)
SEAT CLAMP ProMax  MX38-RT 31.8MM; SAND BLAST BLACK W/ NO LOGO
PEDALS VP-565 Aluminum; Ball Bearing; 9/16"; NO LOGO
CHAIN TENSIONER N/A
PEGS N/A
REFLECTORS RR 180 + RR 570; AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL;  WHITE FORWARD FACING; RED REAR FACING FOR USA.  OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
MISC N/A
F/REF. BRKT TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT TO MATCH YUNG FANG B-4 FOR 30.6 SEAT POST
F. AXLE SAFETY RET BLACK
BOLTS

Additional Information

Barcode 133324
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
