Haro Annex Si-Metallic White

Haro
Sold Out

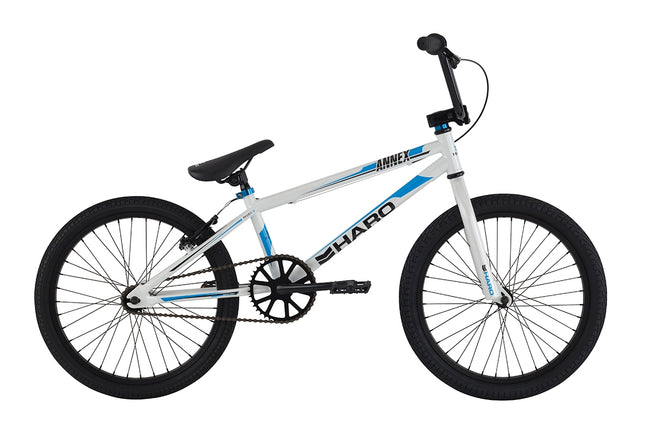

About This Product: Haro Annex Si-Metallic White

PRODUCT DETAILS

The 2016 Haro Annex Si complete BMX race bike is the perfect neighborhood bike or starter race bike for new riders on a tight budget.

DECAL/NAME PLATE SM WATER TRANSFER DECAL
FRAME KSK #FRB0061; H/T 40*38*34 HI-TEN; T/T: 31.8*1.2 HI-TEN; S/T: 28.6*1.4 HI-TEN; D/T 34.9*1.2T HI-TEN; S/S 19*1.2T HI-TEN; C/S 19*1.2 HI-TEN; BB: 57.5*51.5*68L HI-TEN; END: 6.0T HITEN; V-BRAKE PIVOTS ON S/S; HARO CHEVRON LOGO STAMPED ON DROPOUTS
FORK KSK #FKB030161; 20" BMX;  1-1/8" THREADLESS 100% HI-TEN STEEL TIG PULSE, 31.8 DIAMETER LEGS NO-TAPER; RAW FINISH; 25mm OFFSET
HEAD SET #FP-H801S; AHEADSET 1-1/8" THREADLESS TOP CAP W/STAR NUT
HEADSET SPACERS MH-561A; 1*8mm; 1*3mm
TOP CAP #FP-HW-20; FLAT TOP CAP W/STAR NUT,W/O  梅花华司; NO LOGO
SPROCKET/SPIDER CHUAN WEI; HARO CW-1350 STAMPED STEEL SPROCKET; 1/2*1/8* 40T BLACK; NO LOGO.
CRANK SET SS-902; 165mm ; NO LOGO
BB-SET SS-905; ONE SIDE SHIELD; NO LOGO
HANDLEBAR #HB-B201 7.5" BAR;  635X190X130mm; 22.2 DIAMETER X 1.8t HI-TEN; NO STICKER OR LOGO
STEM HARO 2014 OE FRONT-LOAD STEM; #ITC-XC967; MELT FORGED; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG N/A
F/HUB KT-122F STEEL; 3/8"X14GX36HX100X145MM AXLE, LOOSE BALL; W/O LOGO
R/HUB KT-116R STEEL; 3/8"*14GX36HX110X155MM AXLE, NUTTED, LOOSE BALL; W/O LOGO
RIMS #T5; 20" X 1.5"; 36H A/V
SPOKES 14G*36H UCP W/ 12MM STEEL NIPPLE
FRONT TIRE/TUBE/STRIP KENDA KONTACT #K841; 20X1.95; ALL BLACK; TUBE 20"*1.95 A/V BK; RIM STRIP 20"*16mm
REAR TIRE/TUBE/STRIP KENDA KONTACT #K841; 20X1.75; ALL BLACK; TUBE 20"*1.75 A/V BK; RIM STRIP 20"*16mm
F/BRAKE
R/BRAKE PROMAX MODEL #MV-295L; V-BRAKE; ARM LENGTH 95MM; 60MM ANGLE ADJUSTMENT PADS 260MW; BLACK; BLACK HARDWARE
BRAKE LEVER PROMAX MODEL #XL-378; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING TEKTRO 2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR
FREEWHEEL LIDA #A8K-16; 1/2" X 1/8" X 16T; BROWN
CHAIN 410A; 1/2"*1/8"*86 LINKS
CHAINGUARD C-068V; 20" BMX   PLASTIC SMOKE W/BLK CLAMP; 長度錯誤
SADDLE VELO SADDLE #VL-7083; 0-1 STITCH PATTERN; VINYL TOP WITH EMBOSSED LOGO; FRONT AND REAR PLASTIC BUMPERS; 8MM HI-TEN STEEL RAILS; INCLUDE SEAT CLAMP/GUTS
SEAT POST SP-501S; DIAM: 25.4*250mm NO LOGO
SEAT CLAMP MX-28; HARO SOHC 28.6mm; NO LOGO
PEDALS #B123; PLASTIC PEDAL BODY W/ CRMO 1/2" AXLE; W/ CPSC REFLECTORS
PEGS
REFLECTORS RR-316 BS  REFLECTOR F/R WHEELS; RR-180-BTW FOR FRONT H/BAR, RR-180-BTR FOR REAR SEAT POST
MISC
 TRAINNING WHEEL
 PAD SET N/A
F/REF. BRKT B-10/B-3  FRONT FOR HANDLEBAR CROSS BAR , REAR FOR SEAT POST
R/REF. BRKT B-10/B-3 FRONT FOR HANDLEBAR CROSS BAR , REAR FOR SEAT POST
F. AXLE SAFETY RET INCLUDED W/FRONT HUB
BOLTS N/A

Additional Information

Barcode 133966
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.
