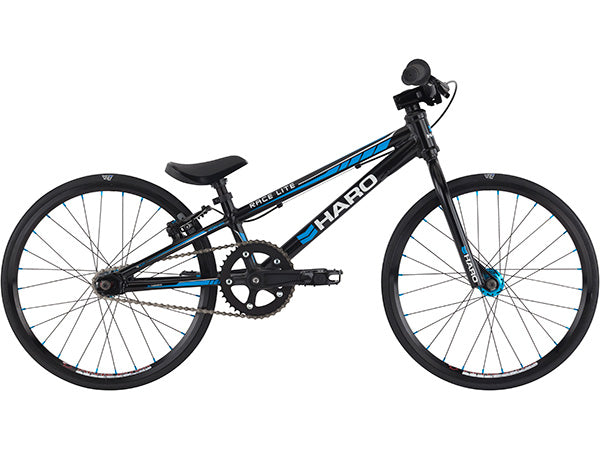

Haro Race LT-Micro Mini-Signature Black

Haro
Sold Out

About This Product: Haro Race LT-Micro Mini-Signature Black

PRODUCT DETAILS

DECAL/NAME PLATE SM WATER TRANSFER DECAL
FRAME 2016 HARO RACE LITE MICRO MINI FRAME; JOVIAL DRAWING #W0019-1; 6061 ALUMINUM; INTERNAL HEAD TUBE; INCLUDE JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE - ALL BLACK
FORK 2016 HARO MICRO MINI FORK; MODEL #FKB0053; HARO 18" MICRO MINI BMX FORK; 25.4MM (1") OD THREADLESS CRMO 1.6T STEERER & 1.2T LEG; M10*130L*262*100W
HEAD SET MODEL #VP-A06ACM1; 1" AHEADSET; 7 PCS; DIAMETER 25.4*41.8*26.4 SEMI-CARTRIDGE BEARING; ALUMINUM CONICAL TOP COVER (5MM); WITH HEADSET CAP M-3D
HEADSET SPACERS 2 X 5MM ALLOY BLACK ANODIZED SPACER
TOP CAP/STAR NUT M-3D; FOR 1" ; TOP CAP W/STAR NUT, NO LOGO
SPROCKET/SPIDER 1/2”X3/32”x38T ALLOY CHAINRING; SANDBLAST BLACK ANODIZED (PRICE INCLUDED WITH CRANK SET)
CRANK SET CHUAN WEI MODEL #AF23-136A; 130MM ARM LENGTH; 110MM 5 BOLT PATTERN; FORGED ALLOY; SQUARE TAPER SPINDLE INTERFACE; SPROCKET BOLTS INCLUDED WITH CRANK SET (BLACK)
BB-SET CHUAN WEI MODEL #SAX-J21ST; 68 X 118MM; CR-MO SPINDLE SQUARE TAPER INTERFACE; 2 SEALED CARTRIDGE BEARINGS
HANDLEBAR HARO MICRO MINI / MINI H BAR; EVG #HB-B300; 485mm X 50mm RISE X 10 DEG SWEEP 3.2t WALL; NO DECAL
STEM HARO 2016 OE FRONT-LOAD STEM; #ITC-XD685; COLD FORGED WITH CNC; 45MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 25.4MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP VELO GRIP; MODEL #VLG 410; 115MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG N/A
F/HUB KT HUB; MODEL #KT-M37F; 28H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; SEALED BEARINGS
R/HUB KT HUB; MODEL #KT-M98R; CASSETTE REAR HUB; 28H LOW FLANGE ALLOY SHELL; 3/8' X 160MM AXLE; SEALED BEARINGS; INCLUDE 14TX3/32"T CP COG; ALL BLACK HARDWARE
FRONT RIM ANKLE BITER; PART #A120-0825; ALLOY AN-04 18"; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
REAR RIM ANKLE BITER; PART #A120-0825; ALLOY AN-04 18"; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
SPOKES 15 GUAGE STEEL BLACK; 3X; W/ SHADAR ALLOY 12MM NIPPLE
FRONT TIRE/TUBE/STRIP VEE RUBBER "SPEEDSTER" TIRE #VRB316; 18X1"; 60TPI; W/PRESTA VALVE TUBE; JOGON PVC RIM STRIP # FOR 18X1" RIM
REAR TIRE/TUBE/STRIP VEE RUBBER "SPEEDSTER" TIRE #VRB316; 18X1"; 60TPI; W/PRESTA VALVE TUBE; JOGON PVC RIM STRIP # FOR 18X1" RIM
F/BRAKE N/A
R/BRAKE TEKTRO MODEL #926AL; MINI V-BRAKE; ARM LENGTH 80MM; DIMENSION 20 - 36.5MM; BLACK; BLACK HARDWARE
BRAKE LEVER TEKTRO MODEL #317A; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING 2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR N/A
FREEWHEEL 14TX3/32"T CP COG; INCLUDED WITH REAR HUB
CHAIN KMC Z33; 1/2'X3/32"X74L; SILVER / SILVER
CHAINGUARD 20" BMX C068N (EQUIVELANT TO DL-421C); M5X8L 20" SMOKE PLASTIC
SADDLE VELO #VL-7208; PLASTIC SADDLE BLACK W/O PADDING; ALLOY POST 22.2 X 200MM BLACK ANODIZED NO LOGO
SEAT POST BLACK ALLOY W/ SEAT; 22.2 X 200MM (PRICE INCLUDED WITH SEAT)
SEAT CLAMP ProMax  MX28 25.4MM; SAND BLAST ANODIZED W/ NO LOGO
PEDALS VP-505; Alloy body; Boron Steel Axle; Loose ball bearing; dimension = 102 x 93
CHAIN TENSIONER #JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE
PEGS
REFLECTORS AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL;  WHITE FORWARD FACING; RED REAR FACING FOR USA.  OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
PAD SET
MISC
F/REF. BRKT TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT TO MATCH YUNG FANG B-2 FOR 22.2 SEAT POST
F. AXLE SAFETY RET BLACK
BOLTS

Additional Information

Barcode 133327
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
