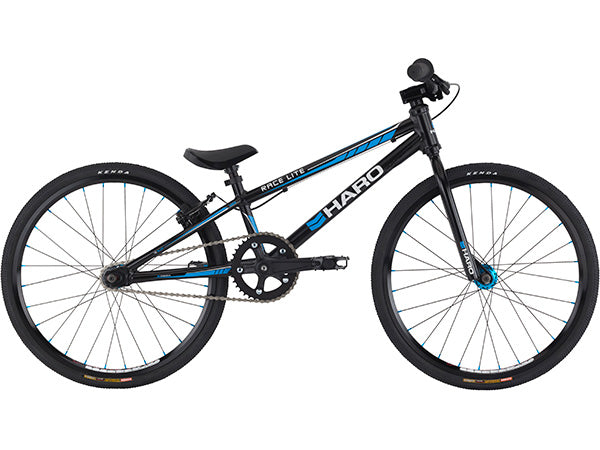

Haro Race LT-Mini-Signature Black

Haro Race LT-Mini-Signature Black

Name: Haro Race LT-Mini-Signature Black
Brand: Haro
Price: 549.95 USD
Availability: Discontinued

Haro

Sold Out

About This Product: Haro Race LT-Mini-Signature Black

DECAL/NAME PLATE: SM WATER TRANSFER DECAL
FRAME: 2016 HARO RACE LITE MINI FRAME; JOVIAL DRAWING #W0019-2; 6061 ALUMINUM; INTERNAL HEAD TUBE; INCLUDE JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE - ALL BLACK
FORK: HARO MINI / JUNIOR / EXPERT FORK 20"; MODEL #FKB0043; HARO BMX RACING FORK; 25.4MM (1") OD THREADLESS CRMO 1.6t STEERER & 1.2t LEG; M10* 150L *278*100W
HEAD SET: MODEL #VP-A06ACM1; 1" AHEADSET; 7 PCS; DIAMETER 25.4*41.8*26.4 SEMI-CARTRIDGE BEARING; ALUMINUM CONICAL TOP COVER (5MM); WITH HEADSET CAP M-3D
HEADSET SPACERS: 2 X 5MM ALLOY BLACK ANODIZED SPACER
TOP CAP/STAR NUT: M-3D; FOR 1" ; TOP CAP W/STAR NUT
SPROCKET/SPIDER: 1/2”X3/32”x38T ALLOY CHAINRING; SANDBLAST BLACK ANODIZED (PRICE INCLUDED WITH CRANK SET)
CRANK SET: CHUAN WEI MODEL #AF23-136A; 145MM ARM LENGTH; 110MM 5 BOLT PATTERN; FORGED ALLOY; SQUARE TAPER SPINDLE INTERFACE; SPROCKET BOLTS INCLUDED WITH CRANK SET (BLACK)
BB-SET: CHUAN WEI MODEL #SAX-J21ST; 68 X 118MM; CR-MO SPINDLE SQUARE TAPER INTERFACE; 2 SEALED CARTRIDGE BEARINGS
HANDLEBAR: HARO MICRO MINI / MINI H BAR; EVG #HB-B300; 485 mm X 50mm RISE X 10 DEG SWEEP 3.2t WALL; NO DECAL
STEM: HARO 2016 OE FRONT-LOAD STEM; #ITC-XD685; COLD FORGED WITH CNC; 45MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 25.4MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP: VELO GRIP; MODEL #VLG 410; 115MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG: N/A
F/HUB: KT HUB; MODEL #KT-M37F; 28H LOW FLANGE ALLOY SHELL; 3/8" X 140MM LENGTH AXLE; SEALED BEARINGS
R/HUB: KT HUB; MODEL #KT-M98R; CASSETTE REAR HUB; 28H LOW FLANGE ALLOY SHELL; 3/8' X 160MM AXLE; SEALED BEARINGS; INCLUDE 14TX3/32"T CP COG; ALL BLACK HARDWARE
FRONT RIM: ANKLE BITER; PART #A120-0097; ALLOY AN-04 20"; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
REAR RIM: ANKLE BITER; PART #A120-0097; ALLOY AN-04 20"; 28H, POST-ANODIZED ALL BLACK AFTER JOINING AND CNC SIDEWALL; PV
SPOKES: 15 GUAGE STEEL BLACK; 3X; W/ SHADAR ALLOY 12MM NIPPLE
FRONT TIRE/TUBE/STRIP: KENDA K1054, 20x1-1/8", BK/BKS/BSK 60tpi-100psi DTC; 20"*1-1/8 F/V W/PRESTA VALVE TUBE; 20"*16mm PVC RIM STRIP FOR 20X1-1/8" RIM
FRONT TIRE/TUBE/STRIP: KENDA K1054, 20x1-1/8", BK/BKS/BSK 60tpi-100psi DTC; 20"*1-1/8 F/V W/PRESTA VALVE TUBE; 20"*16mm PVC RIM STRIP FOR 20X1-1/8" RIM
F/BRAKE: NONE
R/BRAKE: PROMAX MODEL #MV-85; MINI V-BRAKE; ARM LENGTH 85MM; 70MM ANGLE ADJUSTMENT PADS 271MW; BLACK; BLACK HARDWARE
BRAKE LEVER: PROMAX MODEL #XL-373; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING: 2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR: N/A
FREEWHEEL: 14TX3/32"T CP COG; INCLUDED WITH REAR HUB
CHAIN: KMC Z33; 1/2'X3/32"X 80L; SILVER / SILVER
CHAINGUARD: 20" BMX C068N (EQUIVELANT TO DL-421C); M5X8L 20" SMOKE PLASTIC
SADDLE: VELO #VL-7208; PLASTIC SADDLE BLACK W/O PADDING; ALLOY POST 22.2 X 200MM BLACK ANODIZED NO LOGO
SEAT POST: BLACK ALLOY W/ SEAT; 22.2 X 200MM (PRICE INCLUDED WITH SEAT)
SEAT CLAMP: ProMax MX28 25.4MM; SAND BLAST ANODIZED W/ NO LOGO
PEDALS: VP-505; Alloy body; Boron Steel Axle; Loose ball bearing; dimension = 102 x 93
CHAIN TENSIONER: #JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE
PEGS: N/A
REFLECTORS: AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL; WHITE FORWARD FACING; RED REAR FACING FOR USA. OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
F/REF. BRKT: TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT: TO MATCH YUNG FANG B-2 FOR 22.2 SEAT POST
F. AXLE SAFETY RET: BLACK

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size	Age	Rider's Height
Size: Micro Mini	Age: 4 - 5	Rider's Height: 3'6" - 4'
Size: Mini	Age: 5 - 7	Rider's Height: 4' - 4'5"
Size: Junior	Age: 7 - 9	Rider's Height: 4'5" - 4'9"
Size: Expert	Age: 9 - 11	Rider's Height: 4'8" - 5'4"
Size: Expert XL	Age: 11 - 12	Rider's Height: 5'3" - 5'8"
Size: Pro	Age: 13+	Rider's Height: 5'6" - 5'10"
Size: Pro XL	Age: 13+	Rider's Height: 5'9" - 6'
Size: Pro 24	Age: 13+	Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:
