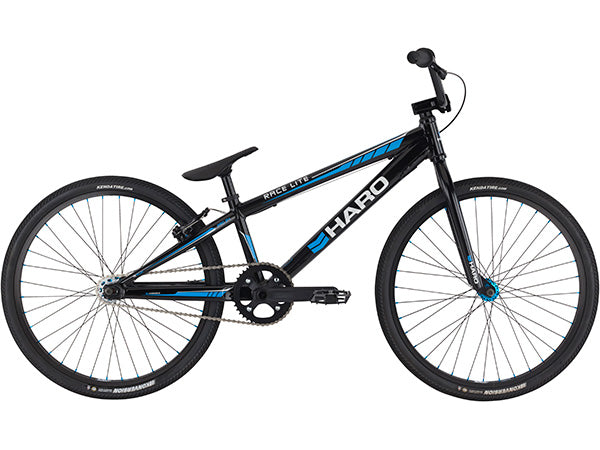

Haro Race LT-Pro 24"-Signature Black

Haro
Sold Out

About This Product: Haro Race LT-Pro 24"-Signature Black


DECAL/NAME PLATE SM WATER TRANSFER DECAL
FRAME 2016 HARO RACE LITE PRO 24 FRAME; JOVIAL DRAWING #W0025-0; 6061 ALUMINUM; INTERNAL HEAD TUBE; PTC DOWNTUBE; BB86 SHELL; INCLUDE JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE - ALL BLACK
FORK KSK FORK DRAWING #FKB4004; THREADLESS 1-1/8" 100% CRMO, 31.8 x 1.4T TAPERED LEG; STEERER LENGTH 158MM; 5MM DROPOUTS FOR 3/8" AXLE
HEAD SET FPD HEADSET; MODEL #YLT-4K; INTERNAL SEALED HEADSET; 45/45
HEADSET SPACERS VP #MH-S61A; 2 X 5MM; 28.6 ALLOY SPACER
TOP CAP/STAR NUT #FP-HW-20; FLAT TOP CAP W/STAR NUT,W/O  梅花华司; NO LOGO
SPROCKET/SPIDER CHUAN WEI; #P203 3/32" x 40T ALLOY CHAIN RING; BCD 104MM 4 BOLT PATTERN; INCLUDES CHAIN RING BOLTS; (PRICE INCLUDED IN CRANK SET)
CRANK SET CHUAN WEI; MODEL #TAF15-140A-PI; FORGED ALLOY CRANK ARMS; 175MM; BCD 104MM 4 BOLT PATTERN; 24MM HOLLOW SPINDLE; PEDAL INSERTS
BB-SET CHAUN WEI; #BB8601; INTEGRATED PRESS-FIT BB86, 2 SEALED BEARINGS; PLASTIC BB CUPS FOR 86.5MM BB SHELL (PRICE INCLUDED IN CRANK SET)
HANDLEBAR EVG #HB-B101-5.25-1 - Haro BMX Hbar 5.25" Rise .CRMO.
STEM HARO 2016 OE FRONT-LOAD STEM; #ITC-XD686; COLD FORGED WITH CNC; 52MM EXT; 22.2MM BAR BORE; 32MM STACK HEIGHT; 28.6MM STEER TUBE BORE; HARO LOGO ON FACE PLATE - LOGO SURFACE MACHINED AFTER ED OR PAINT
GRIP VELO GRIP; MODEL #VLG 410; 130MM LENGTH; WITH FLANGE (LOW); 25 DUROMETER (SOFT)
H/BAR END PLUG N/A
F/HUB KT HUB; MODEL #KT-M37F; 36H LOW FLANGE ALLOY SHELL; 3/8" X 150MM AXLE; SEALED BEARINGS
R/HUB KT HUB; MODEL #KT-M98R; CASSETTE REAR HUB; 36H LOW FLANGE ALLOY SHELL; 3/8' X 165MM AXLE; SEALED BEARINGS; INCLUDE 18TX3/32" CP COG; ALL BLACK HARDWARE
FRONT RIM AN-01 Singlewall rim. PBR 24". A120-0011
REAR RIM AN-01 Singlewall rim. PBR 24". A120-0011
SPOKES 14 GAUGE STEEL; LACED 3 CROSS; W/ SHADAR 12MM ALLOY NIPPLE
FRONT TIRE/TUBE/STRIP KENDA KONVERSION; MODEL #K1079; 24X1.75; WIRE BEAD; 60 TPI; ALL BLACK BK; STD TUBE; TUBE 24X1.9/2.125 A/V OEM; RIM STRIP PF-2001-R 20"*1-1/8"*16W*0.5MM RED F/V
REAR TIRE/TUBE/STRIP KENDA KONVERSION; MODEL #K1079; 24X1.75; WIRE BEAD; 60 TPI; ALL BLACK BK; STD TUBE; TUBE 24X1.9/2.125 A/V OEM; RIM STRIP PF-2001-R 20"*1-1/8"*16W*0.5MM RED F/V
F/BRAKE N/A
R/BRAKE PROMAX MODEL #MV-197; V-BRAKE; COLD FORGED ALUMINUM ARM LENGTH 95MM; 70MM ANGLE ADJUSTMENT PADS 2711MW; BLACK; BLACK HARDWARE
BRAKE LEVER PROMAX MODEL #XL-373; CAST ALUMINUM LEVER AND BRACKET; 2 FINGER LEVER; BLACK BRACKET; BLACK LEVER; BLACK HARDWARE; BLACK CABLE BARRELL ADJUSTER
BRAKE CABLE/CASING 2P CASING/SLICK TYPE INNER CABLE/MACHINED END CAPS
ROTOR N/A
FREEWHEEL 18TX3/32"T CP COG; INCLUDED WITH REAR HUB
CHAIN KMC Z33; 1/2'X3/32"X92L; SILVER / SILVER
CHAINGUARD CO66N 20" BMX (EQUIVELANT TO DL-421) CH PLASTIC
SADDLE PIVOTALASTIC; VELO #VL-7101; NO FOAM AND NO COVER; HOLLOW ALLEN BOLT
SEAT POST JP-S706A (EQUIVELANT TO #EP-012) ALLOY PIVOTAL POST 27.2 X 220MM
SEAT CLAMP Promax MX-38-RT; 31.8MM; SAND BLAST BLACK
PEDALS VP-565 Aluminum; Ball Bearing; 9/16"; NO LOGO
CHAIN TENSIONER #JC-L183 ALLOY CHAIN ADJUSTERS AND HARDWARE
PEGS N/A
REFLECTORS AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL;  WHITE FORWARD FACING; RED REAR FACING FOR USA.  OTHER COUNTRY REQUIREMENTS MAY DIFFER AND SHOULD BE FOLLOWED FOR EACH COUNTRY
MISC N/A
F/REF. BRKT TO MATCH YUNG FANG B-10 FOR HANDLEBAR CROSS BAR
R/REF. BRKT TO MATCH YUNG FANG B-4 FOR 30.6 SEAT POST
F. AXLE SAFETY RET BLACK
BOLTS

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
