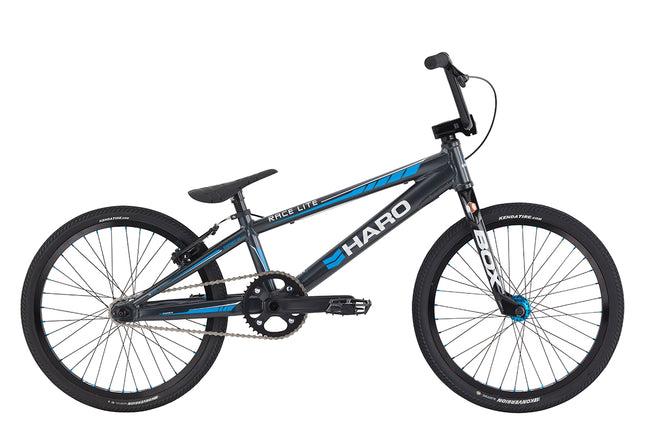

Haro Team CF Expert XL-Signature Metallic Grey

Name: Haro Team CF Expert XL-Signature Metallic Grey
Brand: Haro
Price: 939.95 USD
Availability: Discontinued

Haro

Sold Out

About This Product: Haro Team CF Expert XL-Signature Metallic Grey

PRODUCT DETAILS

6061 series alloy frame with PTC (Power Transfer Center), integrated head tube, triple butted air formed top tube – 20", over sized triple butted down tube, BB86 bottom bracket shell, tapered stays and 3D dropouts with integrated chain tensioners
Box X-10 Pro Carbon fork with 1 1/8" chromoly steer tube
Expert 6.75" rise alloy bars and Haro CNC alloy front load stem
2-piece alloy 170mm cranks with sealed press fit BB86
Fully sealed wheels with Alienation MIA rims, a sealed 15t rear cassette hub and alloy nipples
Promax Click clamp on grips
Promax "P-1" V-brake and "V-Point" brake lever
Kenda Konversion 20 x 1.65" front and 1.50" rear tires
Box Echelon plastic seat/carbon seat post combo

Geometry	Head Angle	Seat Angle	Top Tube	Seat Tube	Chainstay	BB Height	Stand Over
Inches	73°	71°	20	8.81	13.85	11	19.5
MM	73°	71°	507	224	352	280	495.3

Frame Components
Frame	6061 alloy with integrated head tube and PTC - 20" TT.
Fork	Box X-10 Pro Carbon fork w/1 1/8" crmo steer tube
Colors	SG Metallic Grey,
Drivetrain
Cranks	2pc Alloy 170mm / Sealed bearing press-fit BB86
Gearing	38/15
Pedals	Mini DX Alloy
Wheels
Tires	Kenda "Konversion" K1079 20x1.65 F/20x1.50 R
Hubs	36h Alloy Shell sealed bearing; 36h Alloy Shell sealed bearing cassette
Rims	Alienation MIA alloy 36H
Braking System
Rotor	N/A
Other Components
Grips	Promax Click clamp on grip 130mm
Handle Bar	Alloy 6.75" rise / Haro CNC Alloy front load 52mm ext
Seat	Box Echelon plastic seat/carbon post combo 27.2mm
Pegs	N/A

Additional Information

Barcode	135451
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.
