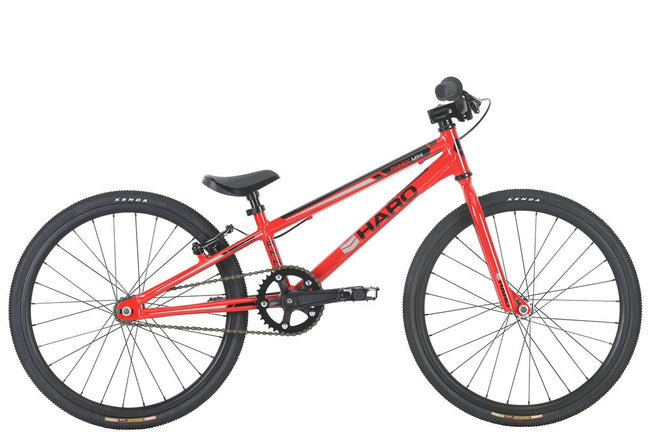

Haro Annex Mini BMX Bike-Race Red

Haro
Sold Out

About This Product: Haro Annex Mini BMX Bike-Race Red

ANNEX MINI

Pure BMX race starts here with the Annex Mini model. Designed with the smallest of racers in mind, this model comes equipped with a light weight 6061 alloy frame, 100% chromoly fork, 3 piece alloy race cranks and 28 spoke alloy wheels which all contribute to great performance and handling.

FEATURES

  • 6061 series alloy frame
  • 100% chromoly fork
  • Alloy bars and Haro alloy front load stem
  • 3-piece alloy race cranks
  • 28-spoke wheels with 20" DA16 double wall alloy rims
  • Kenda Kompact tires
  • Velo Unibody with built in alloy post
  • Promax V-Brake and lever



SPECIFICATIONS

FRAMESET
Frame 6061 Series Alloy with 17.75" TT
Fork Full Crmo 1" Threadless
Colors Gloss Black, Race Red
Weight 16lbs
DRIVETRAIN
Cranks 3pc Alloy race 145mm
Gearing 38/14
Pedals Mini DX Alloy
WHEELS
Tires Kenda "Kompact" K1054 20x1 1/8"
Hubs 3/8" axle: 28h Alloy Shell loose ball Rear: flip-flop
Rims 28h Alloy double wall
BRAKING SYSTEM
Brake Promax MV-87 Alloy V-brake
Brake Lever Promax XL-378 Alloy Lever
OTHER COMPONENTS
Grips Velo Mini Knurled Grips
Handle Bar Mini Alloy Bar
Stem Haro Mini Alloy front load stem 45mm ext
Seat Velo Unibody
Seat Post Alloy
Pegs N/A



Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
