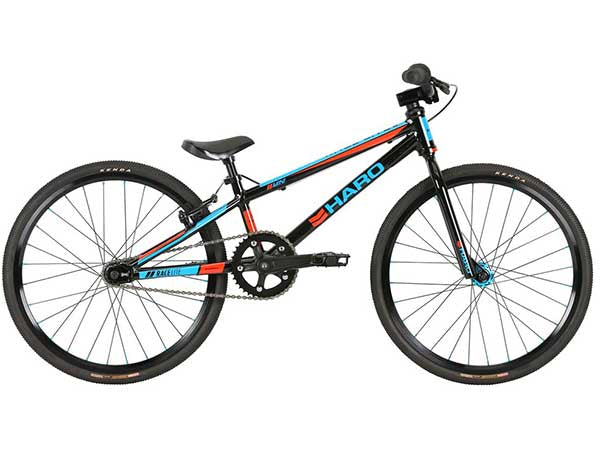

Haro Mini Bike-Gloss Black

The Race Lite Mini is the first model in the Race Lite series to use 20" wheels. Much like the Micro Mini, the Mini is designed around a 6061 alloy frame with race specific geometry. Sealed bearings are found throughout the 20" alloy wheel set and 3 piece alloy race cranks for fast and smooth operation with minimal resistance. Control is capped off with a 100% chromoly fork along with alloy bars and a CNC alloy stem.

FEATURES

• 6061 series alloy frame with integrated head tube, butted down tube, tapered chain stays, 3D dropouts with integrated chain tensioners
• 100% chromoly fork
• Alloy bars and Haro CNC alloy front load stem
• 3-piece alloy race cranks with sealed Euro BB
• Fully sealed wheels with Alienation rims, a sealed rear cassette hub and alloy nipples
• Kenda Kontact tires
• Promax V-Brake and lever

FRAMESET

• Frame: 6061 alloy with integrated head tube -17.75" TT
• Fork: Full Crmo 1" Threadless
• Colors: Gloss Black
• Weight: 15.7lbs

DRIVETRAIN

• Cranks: 3pc Alloy race 130mm
• Gearing: 38/14
• Pedals: Mini DX Alloy

WHEELS

• Tires: Kenda "Kompact" K1054 20x1 1/8"
• Hubs: 3/8" axle: 28h Alloy Shell sealed bearing
• Rims: 28h Alloy DW

BRAKING SYSTEM

• Brake: Promax MV-85 Alloy V-brake
• Brake Lever: Promax XL-373 Alloy Lever

OTHER COMPONENTS

• Grips: Velo Mini Knurled Grips
• Handle Bar: Mini Alloy Bar
• Stem: Haro CNC Alloy front load 45mm ext
• Seat: Velo Unibody
• Seat Post: Alloy
• Pegs: N/A

GEOMETRY

• Head Angle: 72°
• Seat Angle: 71°
• Top Tube: 17.6 inch
• Seat Tube: 8.34 inch
• Chainstay: 13.34 inch
• BB Height: 11
• Stand Over: 18.5 inch
