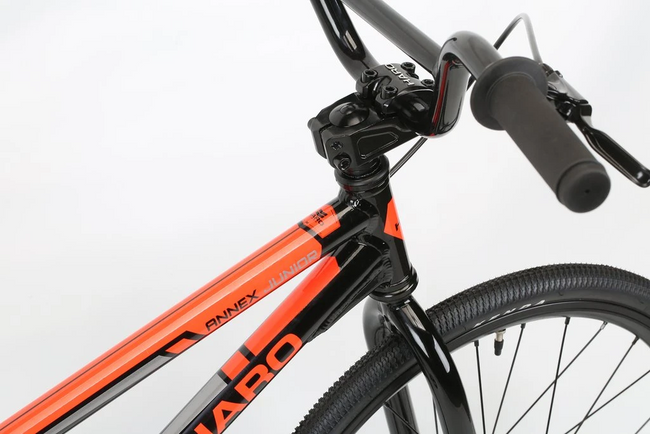

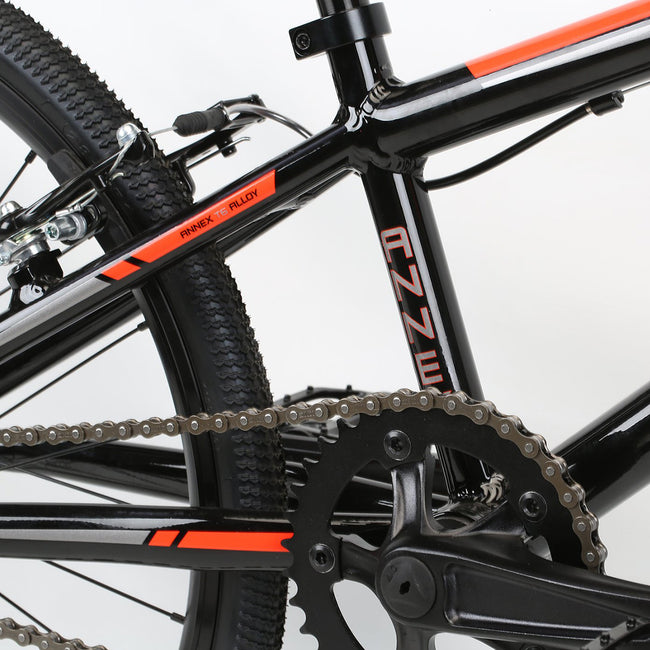

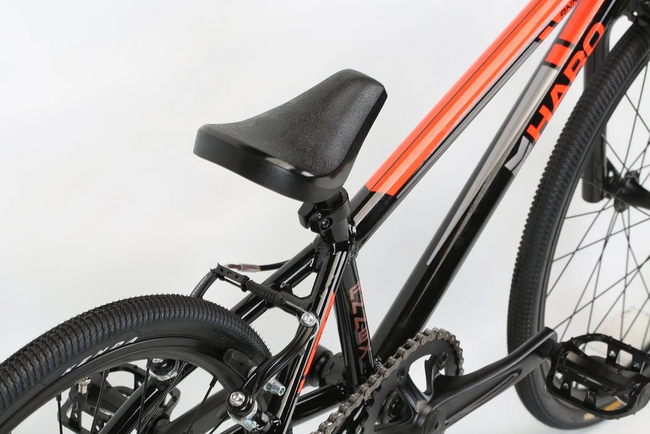

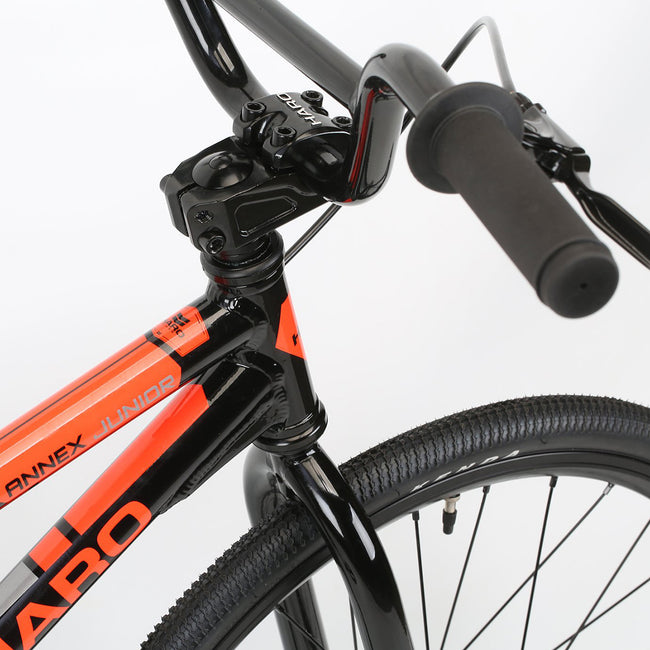

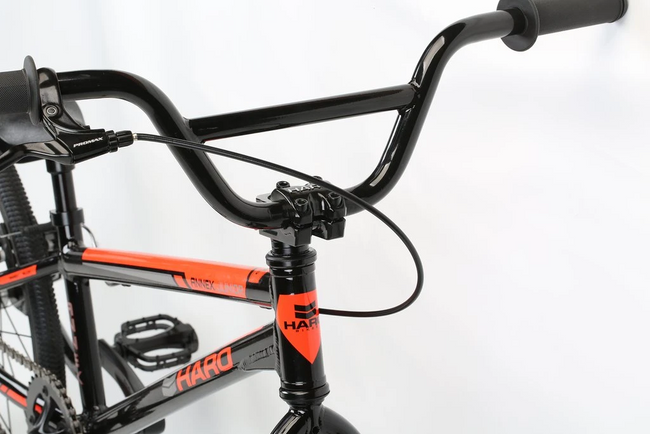

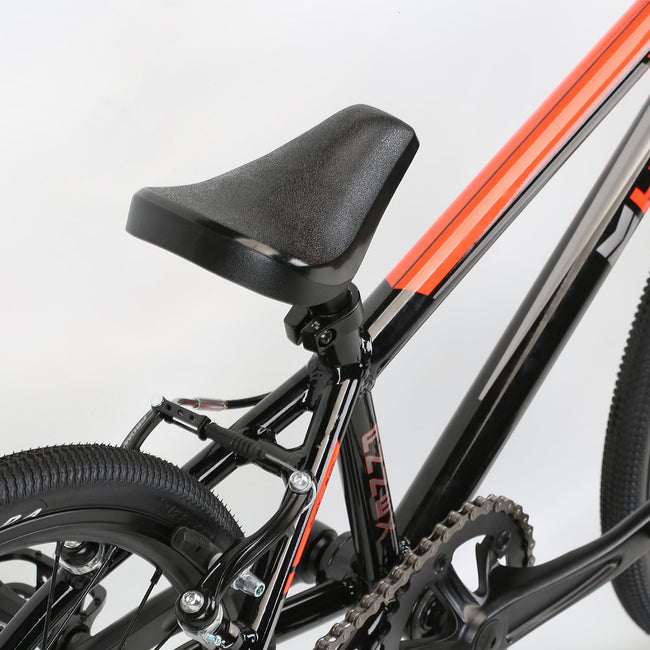

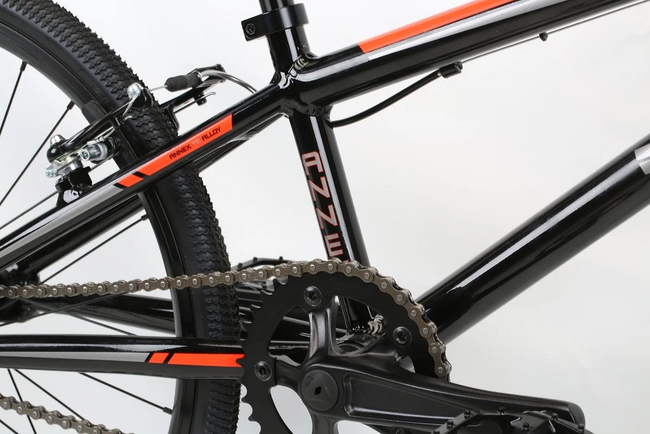

Haro Annex Junior BMX Race Bike-Black - 1
Haro Annex Junior BMX Race Bike-Black - 2
Haro Annex Junior BMX Race Bike-Black - 3
Haro Annex Junior BMX Race Bike-Black - 4
Haro Annex Junior BMX Race Bike-Black - 5
Haro Annex Junior BMX Race Bike-Black - 6
Haro Annex Junior BMX Race Bike-Black - 7
Haro Annex Junior BMX Race Bike-Black - 8
Haro Annex Junior BMX Race Bike-Black - 9
Haro Annex Junior BMX Race Bike-Black - 10

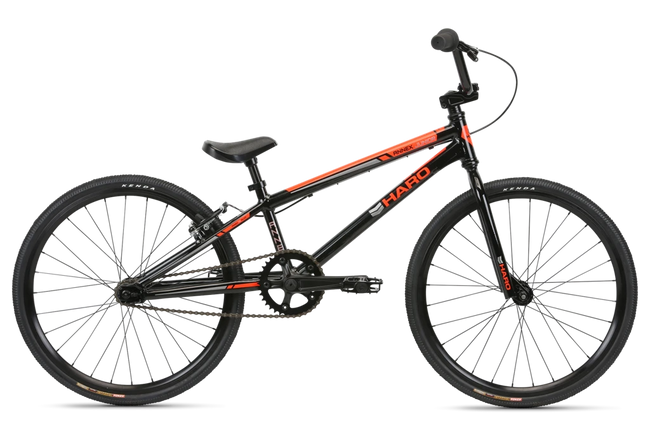

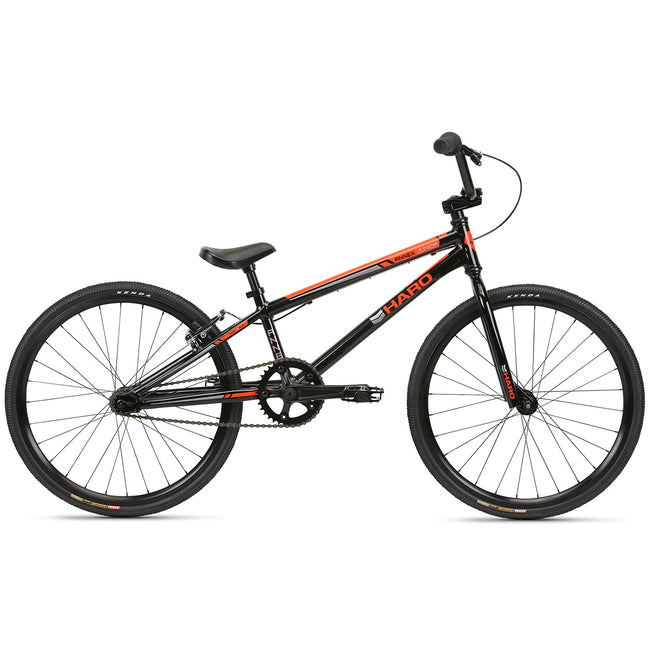

Haro Annex Junior BMX Race Bike-Black

Haro
Sold Out

About This Product: Haro Annex Junior BMX Race Bike-Black

The Annex line offers a wide variety of sizes and the next size up from the Mini is the Annex Junior. The Junior comes equipped with a 18.3" top tube 6061 alloy frame and 155mm 3 piece alloy cranks appropriately sized for great handling and final drive ratio. Steering you in the right direction are a 100% chromoly fork coupled with alloy bars and a front load alloy stem. Rounding out the package are 28 spoke alloy wheels which are both fast and durable.

FEATURES

  • 6061 series alloy frame with 3D dropouts with integrated chain tensioners
  • 100% chromoly fork

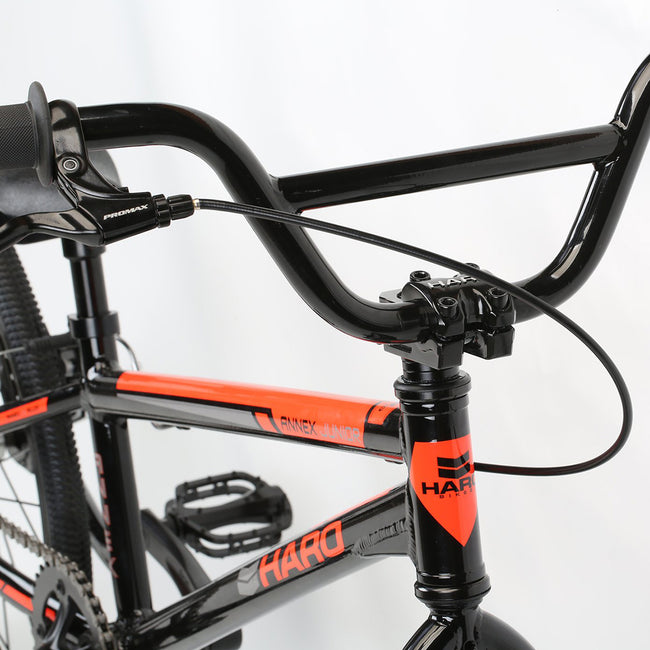

  • Alloy bars and Haro alloy front load stem
  • Haro 3-piece alloy race cranks with sealed Euro BB
  • 28-spoke wheels with 20" DA16 double wall alloy rims
  • Velo Unibody seat with built in alloy post
  • Kenda Kompact tires
  • Promax V-Brake and lever

SPECIFICATIONS

  • FRAME: 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners
  • FORK: Full Cr-Mo 1" Threadless
  • COLORS: Matte Black, Matte Granite
  • WEIGHT: 16.7lbs
  • CRANKS: 3-pc Alloy Race, 155mm
  • BOTTOM BRACKET: Sealed Bearing Euro Square Taper
  • SPROCKET: 36t Alloy
  • GEARING: 36/13
  • PEDALS: Mini DX Alloy, 9/16"
  • CHAIN: KMC 410
  • TIRES: Kenda "Kompact" 20 x 1 1/8"
  • FRONT HUB: Alloy 28h, Loose Ball
  • REAR HUB: Alloy Flip-Flop 28h, Loose Ball
  • AXLE: 3/8"
  • RIMS: 20" Alloy 28h, Double Wall
  • BRAKE: Promax MV-87 Alloy V-Brake
  • BRAKE LEVER: Promax XL-378 Alloy Lever
  • GRIPS: Mini Micro-Knurl Grips
  • HANDLE BAR: Alloy Bar, 5" Rise
  • STEM: Forged Alloy Top-Load, 45mm Ext.
  • HEADSET: Threadless Loose Ball, 1"
  • SEAT: Unibody
  • SEAT POST: Alloy, 22.2mm
  • SEAT POST CLAMP: Alloy, 25.4mm
Haro BMX Bike Geometry Chart

GEOMETRY & SIZING

Size: 20

  1. Head Angle: 73°
  2. Seat Angle: 71°
  3. Top Tube: 18.3 (464.9 mm)
  4. Seat Tube: 9.2 (232.7 mm)
  5. Chainstay: 13.6 (346 mm)
  6. BB Height: 11 (280 mm)
  7. Stand Over: 19.5 (495.3 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
