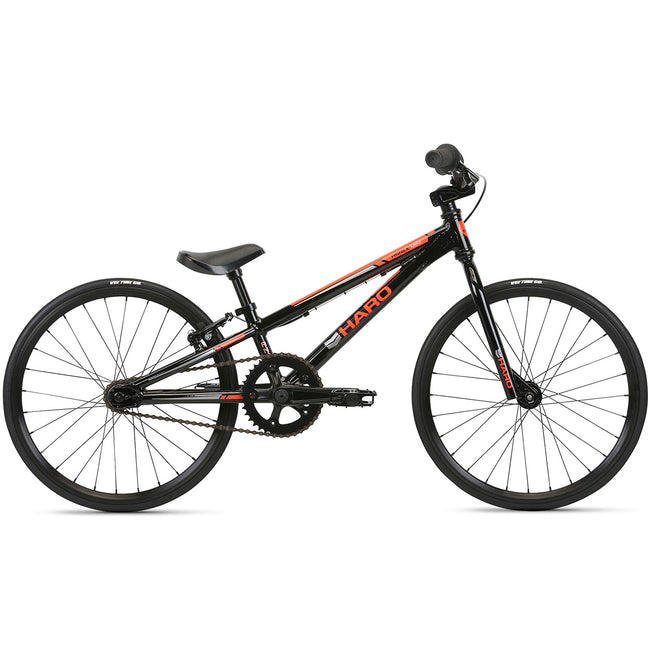

Haro Annex Micro Mini 18" BMX Race Bike-Black - 1
Haro Annex Micro Mini 18" BMX Race Bike-Black - 2
Haro Annex Micro Mini 18" BMX Race Bike-Black - 3
Haro Annex Micro Mini 18" BMX Race Bike-Black - 4
Haro Annex Micro Mini 18" BMX Race Bike-Black - 5
Haro Annex Micro Mini 18" BMX Race Bike-Black - 6
Haro Annex Micro Mini 18" BMX Race Bike-Black - 7
Haro Annex Micro Mini 18" BMX Race Bike-Black - 8
Haro Annex Micro Mini 18" BMX Race Bike-Black - 9

Haro Annex Micro Mini 18" BMX Race Bike-Black

Haro
Sold Out

About This Product: Haro Annex Micro Mini 18" BMX Race Bike-Black

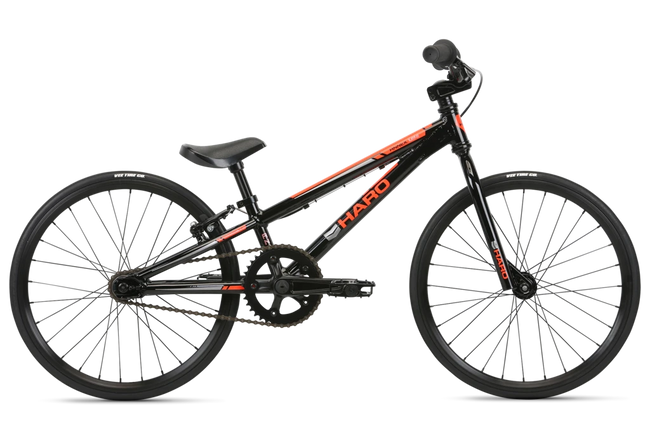

Racing starts here with the Annex Micro Mini model. Designed with the smallest of racers in mind, this model comes equipped with a light weight 6061 alloy frame, 100% chromoly fork, 3 piece alloy race cranks and 28 spoke alloy wheels which all contribute to great performance and handling.

FEATURES

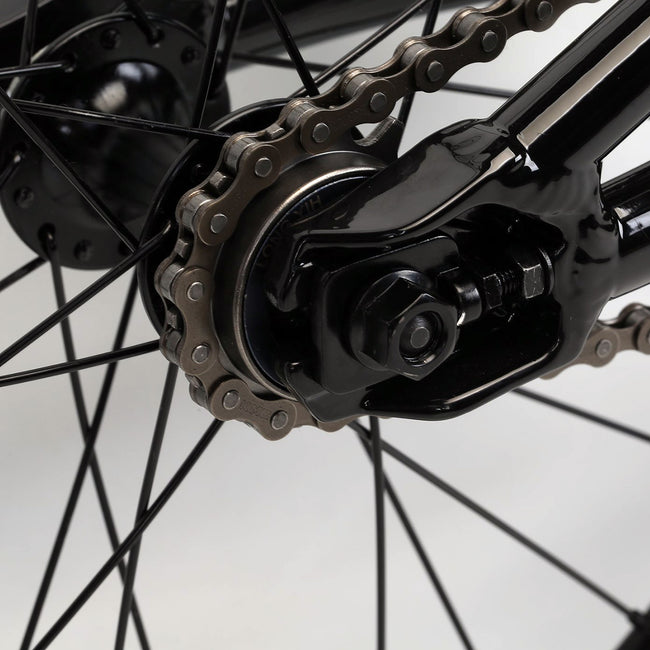

  • 6061 series alloy frame with 3D dropouts with integrated chain tensioners
  • 100% chromoly fork

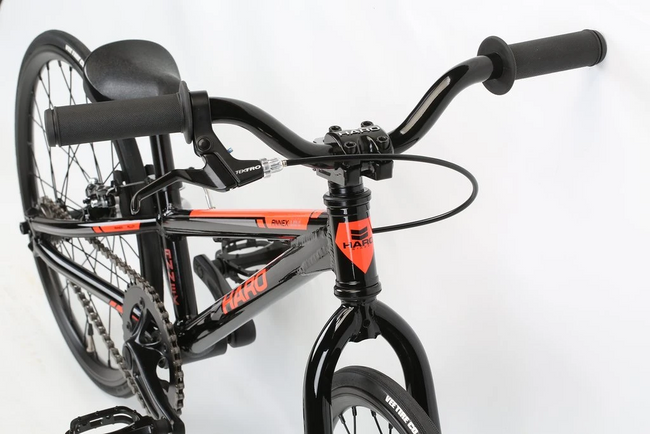

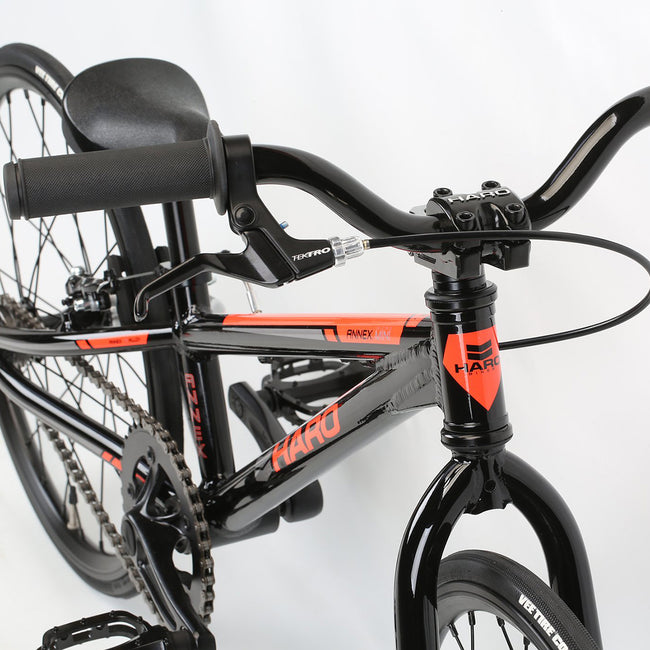

  • Alloy bars and Haro alloy front load stem
  • Haro 3-piece alloy race cranks with sealed Euro BB
  • Velo Unibody seat with built in alloy post
  • Tektro V-Brake and lever

SPECIFICATIONS

  • FRAME: 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners
  • FORK: Full Cr-Mo 1" Threadless
  • COLORS: Matte Black, Matte Granite
  • WEIGHT: 15lbs
  • CRANKS: 3-pc Alloy Race, 130mm
  • BOTTOM BRACKET: Sealed Bearing Euro Square Taper
  • SPROCKET: 38t Alloy
  • GEARING: 38/14
  • PEDALS: Mini DX Alloy, 9/16"
  • CHAIN: KMC 410

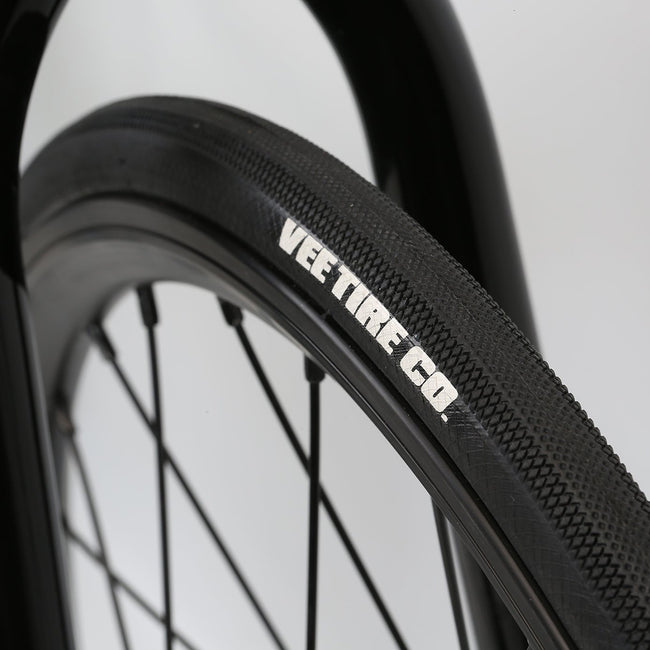

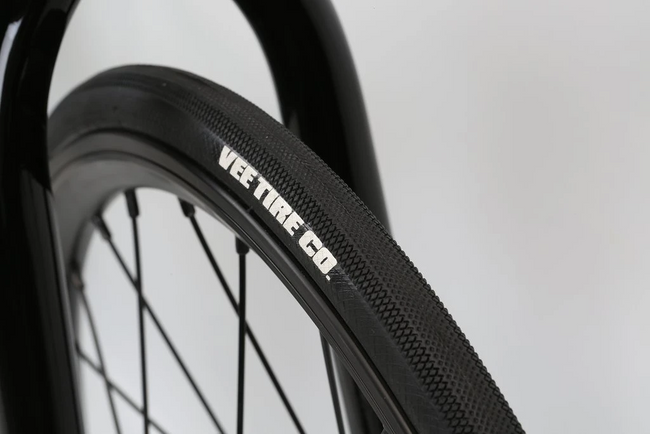

  • TIRES: Vee Rubber "Speedster" 18 x 1"
  • FRONT HUB: Alloy 28h, Loose Ball
  • REAR HUB: Alloy Flip-Flop 28h, Loose Ball
  • AXLE: 3/8"
  • RIMS: 18" Alloy 28h, Double Wall
  • BRAKE: Tektro 926 Mini Alloy V-brake
  • BRAKE LEVER: Tektro 317 Alloy Lever
  • GRIPS: Mini Micro-Knurl Grips
  • HANDLE BAR: Mini Alloy Bar, 2" Rise

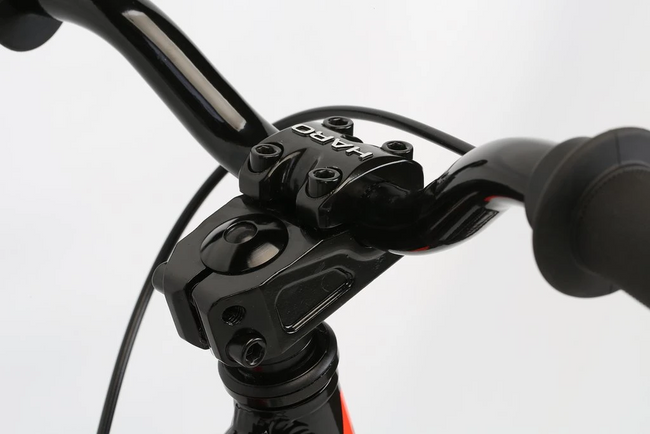

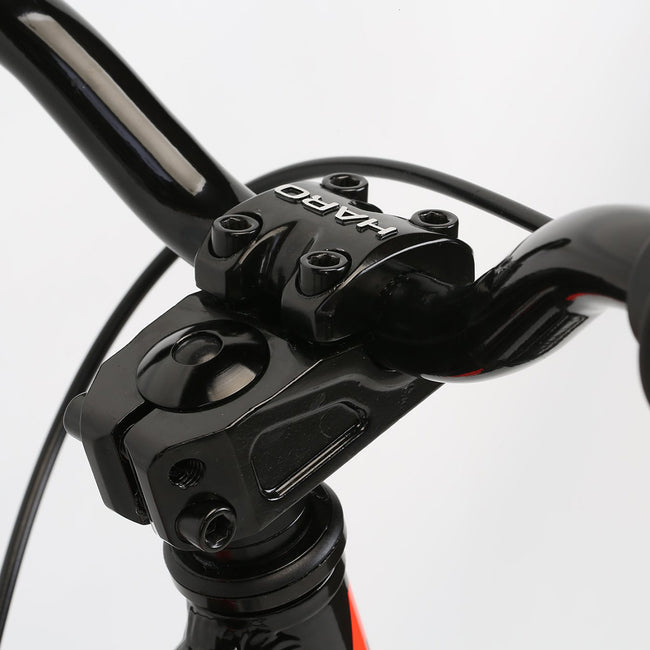

  • STEM: Forged Alloy Top-Load, 45mm Ext.
  • HEADSET: Threadless Loose Ball, 1"
  • SEAT: Unibody
  • SEAT POST: Alloy, 22.2mm
  • SEAT POST CLAMP: Alloy, 25.4mm
Haro BMX Bike Geometry Chart

GEOMETRY & SIZING

Size: 18

  1. Head Angle: 72°
  2. Seat Angle: 71.47°
  3. Top Tube: 16.75 (425.4 mm)
  4. Seat Tube: 7.1 (180 mm)
  5. Chainstay: 11.8 (300 mm)
  6. BB Height: 8.75 (222.2 mm)
  7. Stand Over: 15.5 (393.7 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
