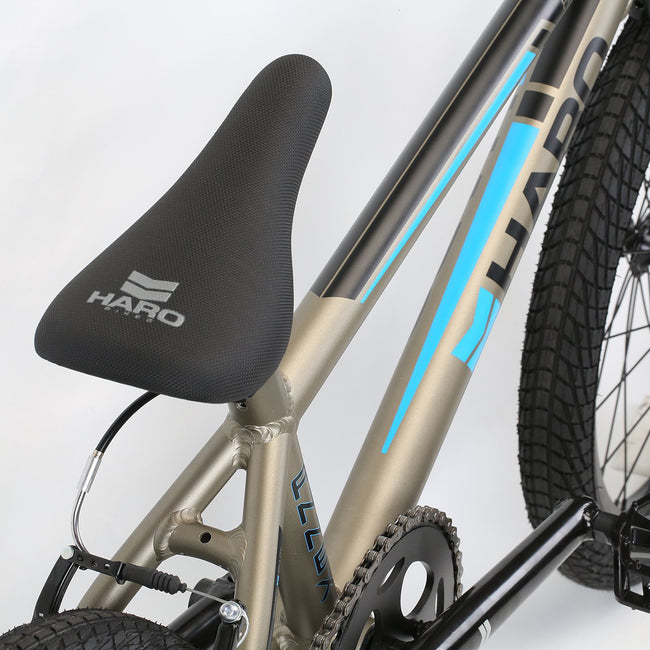

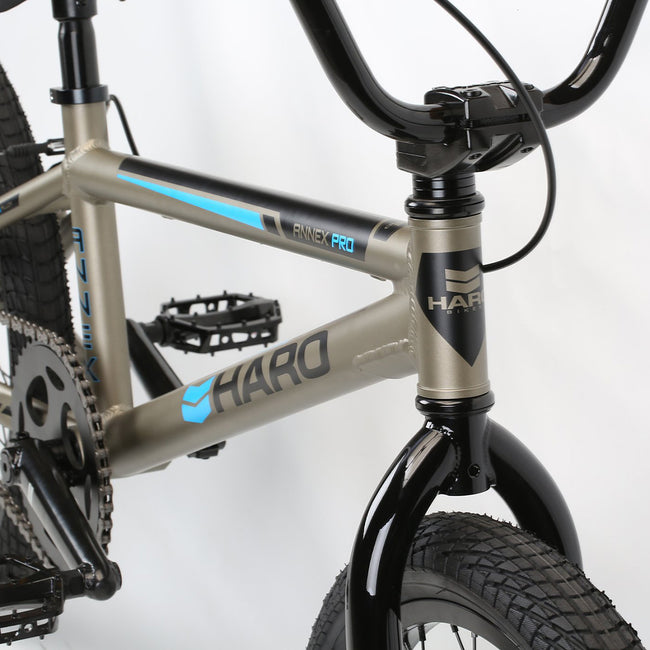

Haro Annex Pro BMX Race Bike-Matte Granite - 1
Haro Annex Pro BMX Race Bike-Matte Granite - 2
Haro Annex Pro BMX Race Bike-Matte Granite - 3
Haro Annex Pro BMX Race Bike-Matte Granite - 4
Haro Annex Pro BMX Race Bike-Matte Granite - 5
Haro Annex Pro BMX Race Bike-Matte Granite - 6
Haro Annex Pro BMX Race Bike-Matte Granite - 7
Haro Annex Pro BMX Race Bike-Matte Granite - 8
Haro Annex Pro BMX Race Bike-Matte Granite - 9
Haro Annex Pro BMX Race Bike-Matte Granite - 10

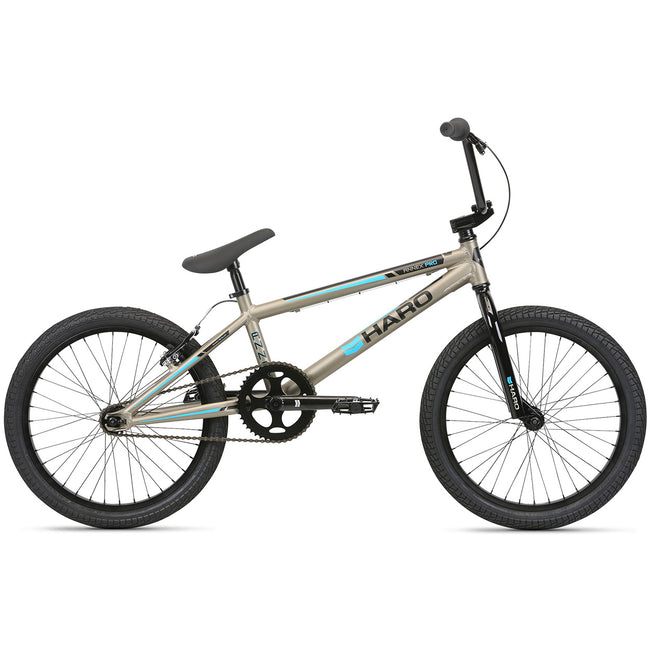

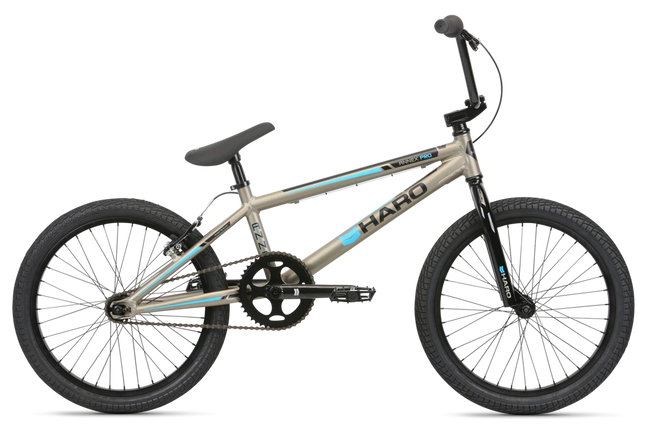

Haro Annex Pro BMX Race Bike-Matte Granite

Haro
Sold Out

About This Product: Haro Annex Pro BMX Race Bike-Matte Granite

The Annex Pro model takes things to the next level in multiple ways. Starting off with a 20.5" top tube 6061 alloy frame which has larger geometry and tubing than that found on the Expert model. 8" rise bars and 100% chromoly fork with 1 1/8" steer tube provide adequate size and strength for proper front end control. The Annex Pro also comes with 175mm 3 piece chromoly cranks and full sized 20" 36 spoke alloy wheels which increase strength and are versatile for riding/racing at the BMX track and all around riding.

FEATURES

  • 6061 series alloy frame with 3D dropouts with integrated chain tensioners
  • 100% chromoly fork
  • Hi-ten bars and Haro alloy front load stem
  • Haro 3-piece chromoly 8-spline race cranks
  • Kenda Kontact tires
  • Promax V-Brake and lever

SPECIFICATIONS

  • FRAME: 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners
  • FORK: Full Cr-Mo 1 1/8" Threadless
  • COLORS: Matte Black, Matte Granite
  • WEIGHT: 23.1lbs
  • CRANKS: Haro 3-pc Cr-Mo, 175mm
  • BOTTOM BRACKET: Sealed Bearing Euro
  • SPROCKET: 44t Alloy
  • GEARING: 44/16
  • PEDALS: DX Alloy, 9/16"
  • CHAIN: KMC 410
  • TIRES: Kenda "Kontact" 20 x 2.25""
  • FRONT HUB: Alloy 36h, Loose Ball
  • REAR HUB: Alloy Flip-Flop 36h, Loose Ball
  • AXLE: 3/8"
  • RIMS: 20" Alloy 36h, Single Wall
  • BRAKE: Promax MV-295L Alloy V-Brake
  • BRAKE LEVER: Promax XL-378 Alloy Lever
  • GRIPS: Micro Knurl Grips
  • HANDLE BAR: Hi-Ten, 8" Rise
  • STEM: Forged Alloy Top-Load, 45mm Ext.
  • HEADSET: Threadless Loose Ball, 1 1/8"
  • SEAT: Haro Slim Padded 1-pc
  • SEAT POST: Alloy, 27.2mm
  • SEAT POST CLAMP: Alloy, 31.8mm
Haro BMX Bike Geometry Chart

GEOMETRY & SIZING

Size: 20

  1. Head Angle: 74°
  2. Seat Angle: 72°
  3. Top Tube: 20.5 (522 mm)
  4. Seat Tube: 10.2 (260 mm)
  5. Chainstay: 14.4 (365 mm)
  6. BB Height: 11.5 (293 mm)
  7. Stand Over: 22.1 (562 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
